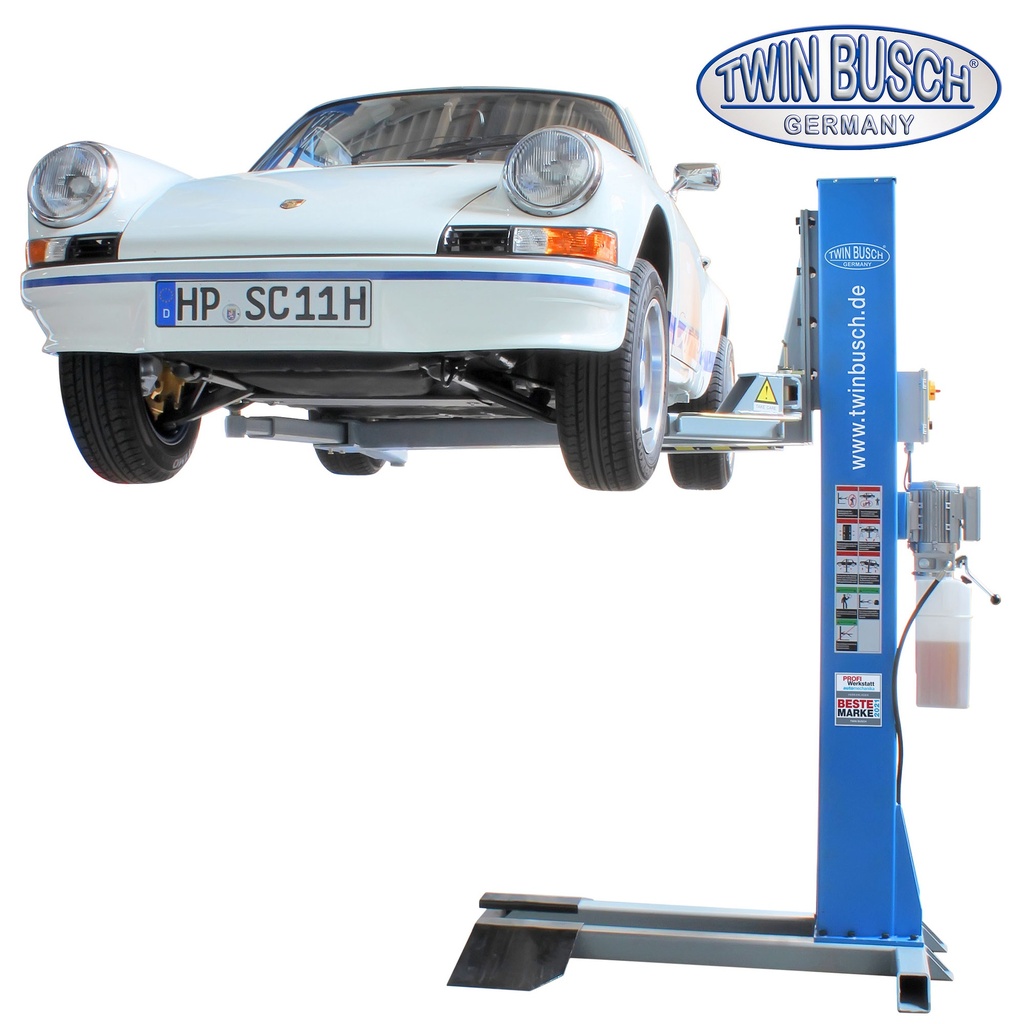

1 column lift 2.5 tonnes - Fixed
Fixed single-post lift. For use in confined spaces. Ideal for bodywork, paint shops and, of course, everyday use in the workshop.
Product presentation
Assembly
Features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- Hydraulic cylinder for powerful lifting and lowering
- Adjustable lifting pads
- Telescopic lifting arm
- Mechanical safety locking system
- Manual release of the safety lock
- Columns with special laminated section
- Aluminium motor with 24 V - Control box
- Protection of the column chain
Technical data
Lifting capacity
2500 kg
Maximum lifting height
1830-1930 mm
Low lifting point
115 mm
Lifting and lowering time (approx.)
35/30 seconds
Power supply
230 V
Engine power
2,2 kW
Fuse protection
16 A / type C
Weight
720 kg
Colour
RAL 5015 (Blue)
TW125F - Overview

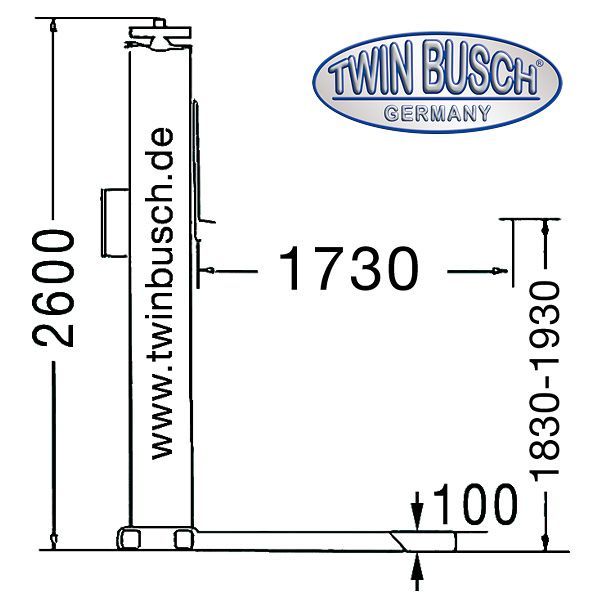

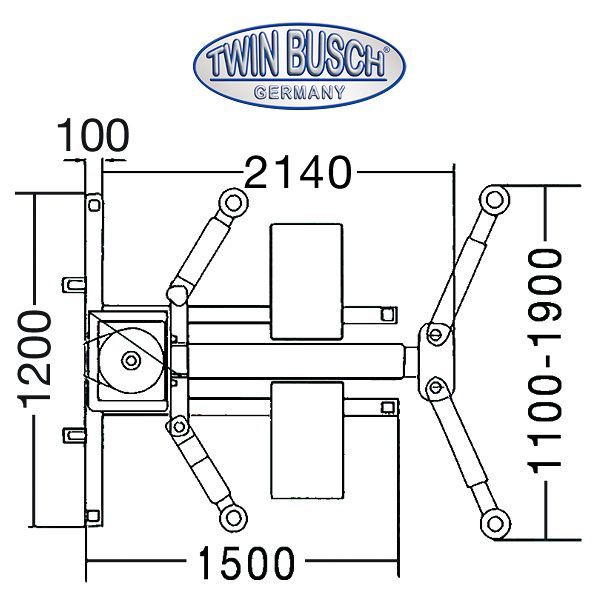

Product dimensions
Vehicle type / Wheelbase
this graphic is for information purposes only!
Contents of the delivery
- Lift with feed unit
- Heavy-duty anchor bolts (10 pcs.)
- English instruction manual
- Examination book, 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.
Shipping dimensions and weight
Video about the expedition
