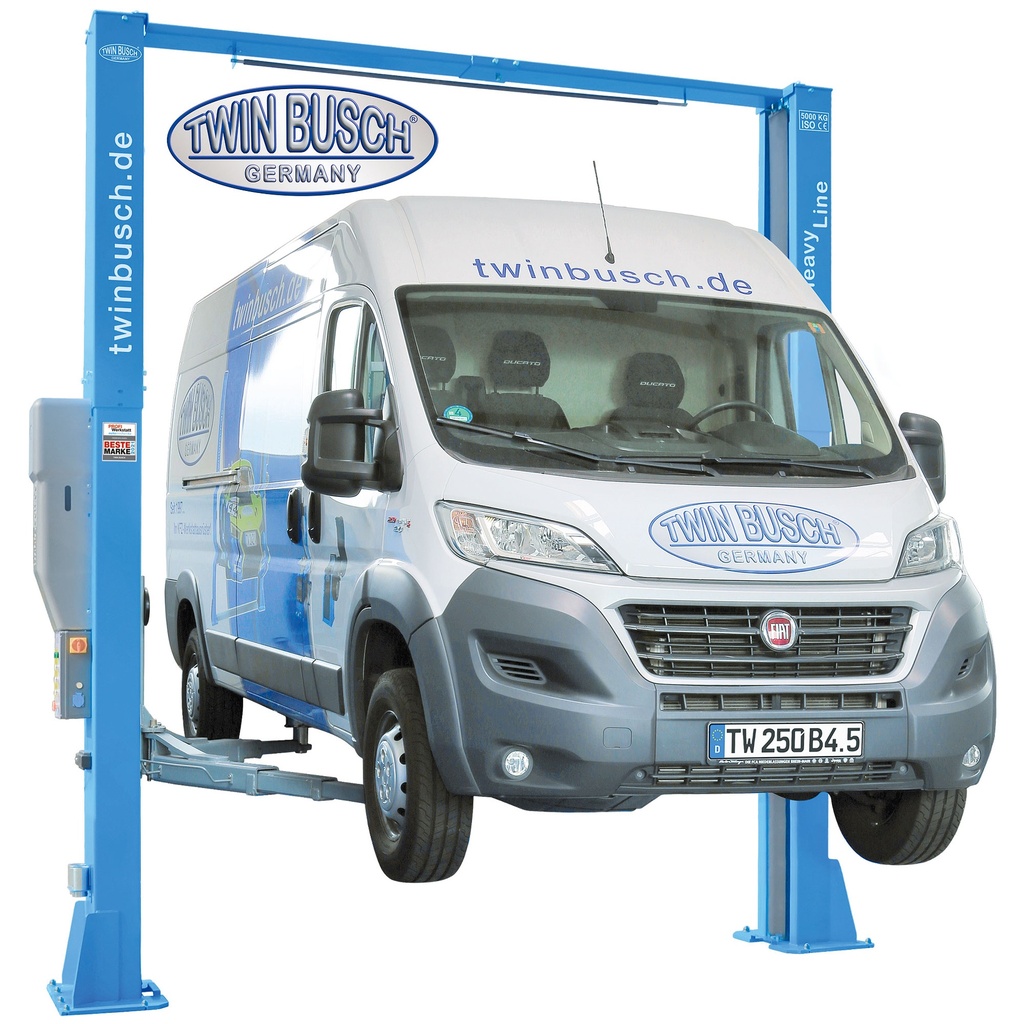

Pont élévateur 2 colonnes 5.0 t - électromagnétique - sans embrase - HEAVY LINE

2-Säulen-Hebebühne 5,0 t - elektromagnetisch - ohne Flansch - HEAVY LINE
Diese professionelle Hebebühne hat eine Hebekapazität von 5,0 t und 3-stufige Teleskoparme, so dass Sie alles heben können, von einem kleinen Auto bis hin zu einem Transporter oder Wohnmobil mit langem Radstand.
Automatisches Sicherheitsentriegelungssystem, höhenverstellbare Drehteller mit Verdrehsicherung und Förderbandadapter, freier Boden, Endschalter, 2 Hydraulikzylinder für kraftvolles Heben und Senken.
Suitable for cars and transporters. With a height of 4450 mm, you can fully lift vehicles such as a Fiat Ducato H2 (high roof) or a Mercedes Sprinter (normal roof).
Jeder Mast verfügt über eine praktische Halterung für Verlängerungsadapter.
Neu:
Hochschiebesicherungstaste, ermöglicht es Ihnen, den Lift abzusenken, ohne ihn vorher anheben zu müssen. Im Schaltkasten befindet sich eine 230-V-Steckdose.

Präsentation des Produkts

Montage

Eigenschaften

Top-Bauqualität mit CE-Zertifikat
Hergestellt nach der Norm ISO 9001
Neu: Hochschiebesicherungstaste
Neu: 230 V Steckdose
2 Hydraulikzylinder für weniger Abrieb
Drehteller mit Verdrehsicherung
Automatisches System zur Sicherheitsentriegelung
Säulenabdeckungen
Speziell gewalzte Säulen
2 Hydraulikzylinder für kraftvolles Heben und Senken
Automatische Armverriegelung
Synchronisiert durch Stahldrähte
3-stufige teleskopische Hebearme
Hochwertige Pulverbeschichtung
Höhe : 4450 mm
Praktische Halterung für zwei Verlängerungsadapter
NEU: Inklusive Motorabdeckung
(elegantes Design, Staubschutz und Geräuschdämmung)

Technische Daten

Hebekapazität

5000 kg

Max. Hubhöhe

1900 mm/Ad 2080

Niedriger Hebepunkt

112 mm

Zeit für Heben und Senken (ca.)

45/30 Sekunden

Stromversorgung

400V / 3 Phasen

Motorleistung

2,2 kW

Sicherungsschutz

16 A / type C

Gewicht

1070 kg

Hubhöhe (Hebekissen eingeschraubt)

1900 mm

Hubhöhe (Hebekissen herausgeschraubt)

1970 mm

Hubhöhe (Hebekissen+Adapter herausgeschraubt)

2070 mm

Sicherheitsauslösung

Automatik

Hebekissen

2-Gang

Transportadapter

enthalten

Pulverbeschichtet

Ja

strong>Säulen-Kettenschutz

enthalten

Motor-Abdeckung

enthalten

Air-Kit

optional

Hochschiebesicherungstaste

Ja

230-V-Steckdose im Schaltkasten

Ja

Bodenplatte

klarer Boden

Gesamtbreite / Bodenplatte (ohne Motor)

4020 mm

Pfostenhöhe

4450 mm

Erforderliche Betontiefe (Sonderlösung)

250 mm

Hebearmlänge / kurz

890-1800 mm

Länge des Hebearms / lang

890-1800 mm

Breite zwischen den Pfosten

3342 mm

Max. Höhe

4380 mm

Max. Breite

2988 mm

Farbe

RAL 5015 (blau), RAL 7000 (grau)

TW250B4.5-400 - Overview
Clear floor The post lift has an automatic limit switch as soon as a vehicle that is too high reaches the crossbeam. The post lift also enables barrier-free passage.	Control unit The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.	E-Motor Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.
Arm-locking system The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.	Supporting arms Flat, 3-way telescopic and bevelled support arms for pushchairs. The asymmetrical design of the support arms allows the doors to be opened particularly wide.	Door stop protection The door stop protects your car doors by preventing them from slamming shut unintentionally.
Post protection cover The post protection cover protects the hydraulic cylinder from flying sparks during welding and flexing work. It offers a high level of safety and impresses with its attractive appearance.	2-stage turntable The post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm.	Anti-Lift-Up-Button The anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first.
230 V socket A handy 230 V socket is located directly on the control box for added convenience.	Extension adapters On each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each.	Accessories TW236PE-AIR The optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection.
Accessories TWLED-2B The TWLED-2B LED lighting (optionally available) consists of 4 flexible and magnetic LED strip lights / LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation materials. These LED lights provide pleasant light in any colour and brightness.	Accessories TW260RAD The optionally available TW260RAD wheel clamp set of 4 is suitable for vehicles with a wheelbase of max. 3000 mm. It offers optimum accessibility, e.g. when changing the battery.

TW250B4.5-400 - Overview

Clear floor

The post lift has an automatic limit switch as soon as a vehicle that is too high reaches the crossbeam. The post lift also enables barrier-free passage.

Control unit

The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.

E-Motor

Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.

Arm-locking system

The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.

Supporting arms

Flat, 3-way telescopic and bevelled support arms for pushchairs. The asymmetrical design of the support arms allows the doors to be opened particularly wide.

Door stop protection

The door stop protects your car doors by preventing them from slamming shut unintentionally.

Post protection cover

The post protection cover protects the hydraulic cylinder from flying sparks during welding and flexing work. It offers a high level of safety and impresses with its attractive appearance.

2-stage turntable

The post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm.

Anti-Lift-Up-Button

The anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first.

230 V socket

A handy 230 V socket is located directly on the control box for added convenience.

Extension adapters

On each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each.

Accessories TW236PE-AIR

The optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection.

Accessories TWLED-2B

The TWLED-2B LED lighting (optionally available) consists of 4 flexible and magnetic LED strip lights / LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation materials. These LED lights provide pleasant light in any colour and brightness.

Accessories TW260RAD

The optionally available TW260RAD wheel clamp set of 4 is suitable for vehicles with a wheelbase of max. 3000 mm. It offers optimum accessibility, e.g. when changing the battery.

Dimensions du produit

Type de véhicule / Empattement

Diese Grafik dient nur zu Informationszwecken!

Inhalt der Lieferung

Lift inkl. Aggregat und Motorhaube
Transporter-Adapter (4 Stück)
Halterung für Verlängerungsadapter
12 x Schwerlastankerbolzen M16 (16 mm Bohrer erforderlich)
Schutz der Türen
Deutsche Gebrauchsanweisung
CE-Zertifikat
Öl nicht enthalten - kann optional bestellt werden
Auto nicht inbegriffen

Informationen zum Versand

Versand innerhalb der Schweiz -Bitte Preisanfrage per E-Mail an info@garagepro.ch mit Postleitzahl

Der Lift wird in einem Transportgestell geliefert.

Versandmaße und Gewichte

Video über die Expedition

TW250B4.5-400_datasheet.pdf Ansehen

TW250B4.5-400_de_handbuch Ansehen

TW250B4.5-400_en_manual Ansehen

TW250B4.5-400_fondation_plan.pdf Ansehen

TW250B4.5-400_fr_manuel.pdf Ansehen
