Pont élévateur 2 colonnes 5.0 t - électromagnétique - sans embrase - HEAVY LINE

2-post lift 5.0 t - electromagnetic - without flange - HEAVY LINE

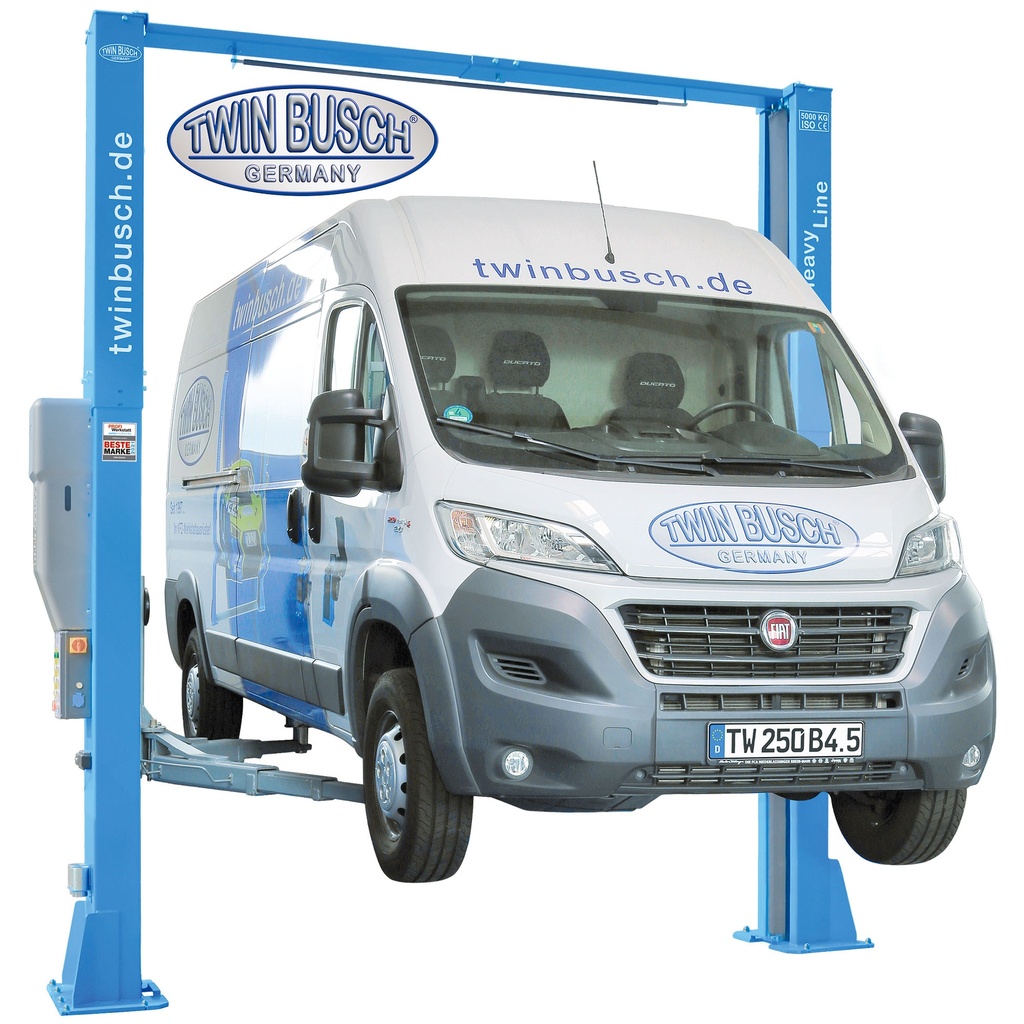

This professional lift has a lifting capacity of 5.0 t and 3-stage telescopic lifting arms so you can lift anything from a small car to a transporter or motorhome with a long wheelbase.
Automatic safety release system, height-adjustable turntables with anti-twist protection and conveyor adapters, clear floor, limit switch, 2 hydraulic cylinders for powerful lifting and lowering.
Suitable for cars and transporters. With a height of 4450 mm, you can fully lift vehicles such as a Fiat Ducato H2 (high roof) or a Mercedes Sprinter (normal roof).
Each pole has a practical support bracket for extension adapters.
New:
anti-lift-up button, allows you to lower the lift without having to raise it before lowering it. A 230 V socket is located in the control box.

Product presentation

Assembly

Features

Top built quality with CE-certificate
Manufactured according to ISO 9001 standard
New: Anti-Lift-Up-button
New: 230 V socket
2 Hydraulic cylinder for less abrasion
Turning Plates with twist protection
Automatic safety lock-release system
Column covers
Special rolled columns
2 Hydraulic cylinders for powerful lifting and lowering
Automatic arm-locking system
Synchronised by steel wires
3-Stage telescopic lifting arms
High-quality Powder coating
Height : 4450 mm
Practical storage bracket for two extension adapters
NEW: Motor-Cover included
(Stylish design, dust protection and noise reduction)

Technical Data

Lifting capacity

5000 kg

Max lifting height

1900 mm/Ad 2080

Low lifting point

112 mm

Lifting, lowering time (approx.)

45/30 seconds

Power supply

400V / 3 phases

Motor power

2,2 kW

Fuse protection

16 A / type C

Weight

1070 kg

Lifting height (Lifting pad screwed in)

1900 mm

Lifting height (Lifting pad screwed out)

1970 mm

Lifting height (Lifting pad+adapter screwed out)

2070 mm

Safety release

Automatic

Lifting pads

2-speed

Transporter adapters

included

Powder coated

Yes

Column chain guard

included

Motor-Cover

included

Air-Kit

optional

Anti-Lift-Up-Button

Yes

230 V socket placed in the control box

Yes

Floor plate

clear floor

Overall width / bottom plate (without motor)

4020 mm

Post hight

4450 mm

Required concrete depth (Special solution)

250 mm

Lifting arm length / short

890-1800 mm

Lifting arm length / long

890-1800 mm

Width between posts

3342 mm

Max. height

4380 mm

Max. width

2988 mm

Colour

RAL 5015 (bleu), RAL 7000 (gris)

TW250B4.5-400 - Overview
Clear floor The post lift has an automatic limit switch as soon as a vehicle that is too high reaches the crossbeam. The post lift also enables barrier-free passage.	Control unit The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.	E-Motor Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.
Arm-locking system The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.	Supporting arms Flat, 3-way telescopic and bevelled support arms for pushchairs. The asymmetrical design of the support arms allows the doors to be opened particularly wide.	Door stop protection The door stop protects your car doors by preventing them from slamming shut unintentionally.
Post protection cover The post protection cover protects the hydraulic cylinder from flying sparks during welding and flexing work. It offers a high level of safety and impresses with its attractive appearance.	2-stage turntable The post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm.	Anti-Lift-Up-Button The anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first.
230 V socket A handy 230 V socket is located directly on the control box for added convenience.	Extension adapters On each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each.	Accessories TW236PE-AIR The optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection.
Accessories TWLED-2B The TWLED-2B LED lighting (optionally available) consists of 4 flexible and magnetic LED strip lights / LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation materials. These LED lights provide pleasant light in any colour and brightness.	Accessories TW260RAD The optionally available TW260RAD wheel clamp set of 4 is suitable for vehicles with a wheelbase of max. 3000 mm. It offers optimum accessibility, e.g. when changing the battery.

TW250B4.5-400 - Overview

Clear floor

The post lift has an automatic limit switch as soon as a vehicle that is too high reaches the crossbeam. The post lift also enables barrier-free passage.

Control unit

The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.

E-Motor

Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.

Arm-locking system

The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.

Supporting arms

Flat, 3-way telescopic and bevelled support arms for pushchairs. The asymmetrical design of the support arms allows the doors to be opened particularly wide.

Door stop protection

The door stop protects your car doors by preventing them from slamming shut unintentionally.

Post protection cover

The post protection cover protects the hydraulic cylinder from flying sparks during welding and flexing work. It offers a high level of safety and impresses with its attractive appearance.

2-stage turntable

The post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm.

Anti-Lift-Up-Button

The anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first.

230 V socket

A handy 230 V socket is located directly on the control box for added convenience.

Extension adapters

On each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each.

Accessories TW236PE-AIR

The optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection.

Accessories TWLED-2B

The TWLED-2B LED lighting (optionally available) consists of 4 flexible and magnetic LED strip lights / LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation materials. These LED lights provide pleasant light in any colour and brightness.

Accessories TW260RAD

The optionally available TW260RAD wheel clamp set of 4 is suitable for vehicles with a wheelbase of max. 3000 mm. It offers optimum accessibility, e.g. when changing the battery.

Product dimensions

Vehicle type / Wheelbase

This graphic is for information purposes only!

Delivery contents

Lift incl. Power Unit and Motor-Cover
Transporter Adapter (4 pcs.)
Bracket for extension adapter
12 x heavy duty anchor bolt M16 (16 mm drill bit required)
Door protection
German instruction manual
CE-Certificate
Oil not included – can be optionally ordered
Car not included

Shipping information

Shipping within Switzerland -Please ask for prices by e-mail to info@garagepro.ch with postcode

The lift is supplied in a transport frame.

Shipping dimensions and weights

Video on the expedition
