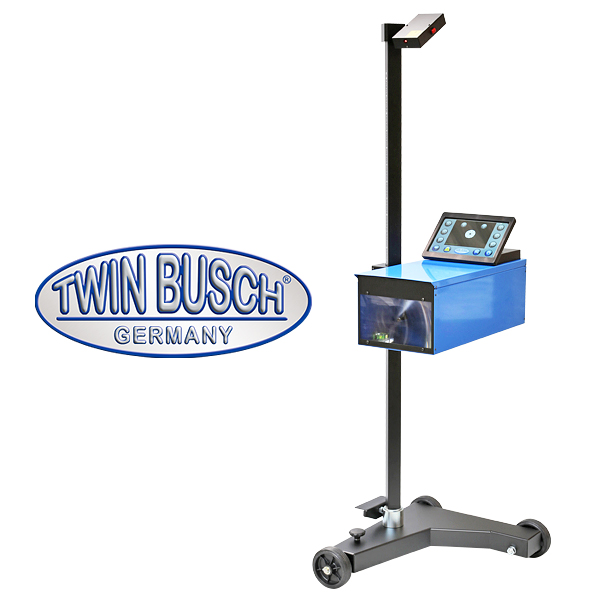

Réglophare – grey-line
Our TWSWE-D complies with the latest guidelines on the inspection and adjustment of car headlights.
The SLS self-levelling system is capable of compensating for floor irregularities, both vertically and horizontally, up to the legal limit within 1 to 2 seconds.
The device comprises a CMOS camera, a 10-inch tablet, as well as a laser viewfinder, a laser pointer and a digital lux meter. The device also includes a swivelling guide rod with a foot pedal and a TÜV test certificate (test number TP). An ASA interface is available as an option.
It has never been easier or more cost-effective to have a headlamp control unit that complies with the latest regulations.
Note: Class 2 red laser. No laser safety officer is required for this device.
Présentation du produit
Assemblée
Caractéristiques
- The self-levelling system (SLS) is capable of compensating for uneven ground, both vertically and horizontally, in 1 to 2 seconds
- All SLS units have a maximum legal tolerance of 3 per cent, and our TW SWE-D model offers a compensation capacity of up to 10 per cent
- Officially certified by TÜV
- Caméra CMOS pour un traitement rapide des images
- Built-in 10-inch tablet
- Outre l'allemand, plusieurs autres langues sont disponibles
- Easy to use thanks to automatic programme management
- Stockage des données
- Transfert des données vers une imprimante ou un PC via Bluetooth, Wi-Fi ou USB
- For all categories of vehicles, such as passenger cars, commercial vehicles and two-wheelers
- Laser pointer for accurately locating the centre of the headlamp
- Horizontal and vertical scales
- Suitable for all types of lamps: incandescent, halogen, xenon, LED and laser
- One-handed adjustable light housing with automatic locking mechanism
- Rod with a measuring scale for precise height adjustment
- Pole with pedal (swivelling)
- Built-in lux meter for measuring light intensity
- Optional ASA interface
- 2 axes réglables en hauteur
- Niveau à bulle intégré
- Livré avec une housse de protection contre la poussière et la saleté
Données techniques
Système SLS
✓
Officiellement approuvé
✓
Viseur à filets croisés
-
Laser sight
✓
Lux meter
✓
Pointeur laser
✓
colonne de mesure
✓
Pédale rotative
✓
Échelle d'ajustement classique
-
Échelle de réglage horizontale + verticale
✓
Pour les lampes halogènes
✓
Pour les lampes au xénon
✓
Pour une LED complète
✓
Pour les lampes LED
✓
Pour la lumière laser
✓
Caméra CMOS
✓
Écran couleur de 10 pouces
✓
Sauvegarde et transfert de données
✓
USB-Port
✓
WIFI / WLAN
✓
Bluetooth
✓
Interface ASA
✓
Système de voies
-
Essieu réglable en hauteur
✓
Housse de protection incluse
✓
TWSWED - Vue d'ensemble
Contents of the delivery
- Reglophare
- Housse de protection
- Livret d'inspection
- Chargeur
