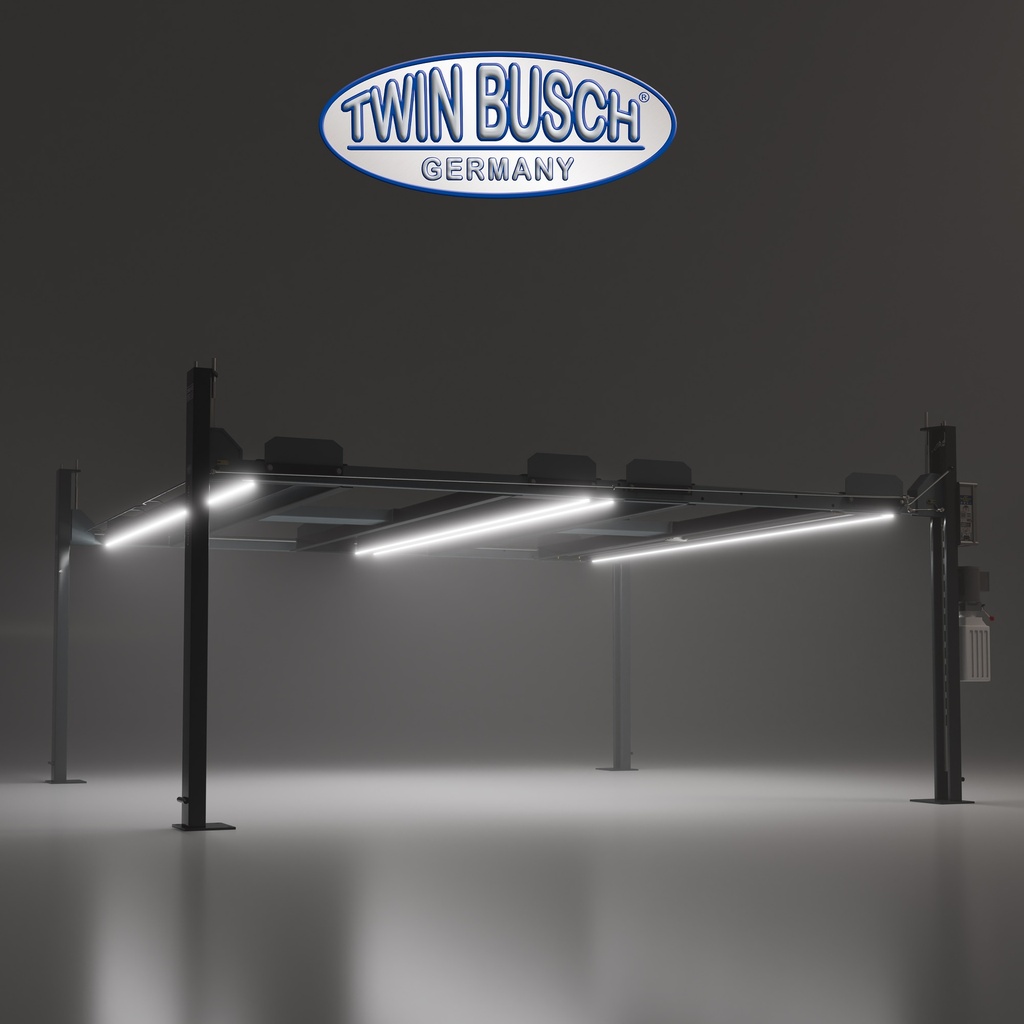

TWLED-4PD2 : LED lighting (LED-KIT) for 4 post double parking lifts
The Twin Busch LED lighting TWLED-4PD2 has been specially developed for our TW436PD2-G 4-post car park lift. A set consists of 4 flexible and magnetic LED light strips / LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation material. The LED strips are equipped with four RGBW diodes (red, green, blue, white), allowing a variety of colour mixing and white light to be set. These LED lights provide a pleasant light in any colour and brightness.
Four LED strips are attached to the upper or optionally lower level using a magnetic backing - no drilling or screws required. The LED lights can be connected externally to a power source, but can also be connected directly in the switch box to 230 V/AC (to be carried out by a qualified electrician). It goes without saying that they are impact-resistant thanks to their flexible design and waterproof to IP67. The RGBW LED strips feature an additional LED chip that emits white light. RGBW therefore offers even more flexibility in terms of the colour spectrum offered and the associated lighting effects. In addition, you are not exposed to glare due to the diffuse scattering from the flexible cover material. The light intensity can also be adjusted to suit the circumstances using the dimming function.
Assembly and installation is carried out via plug and play connections, the cable length and plugs have been specially developed for our 4-post double parking lifts. Suitable for the following models, can also be retrofitted at any time: TW436PD2 and TW436PD2-G.
L'installation est un jeu d'enfant, car les bandes LED, le transformateur et la télécommande sont équipés d'aimants. Le transformateur peut être placé derrière le support du moteur de manière esthétique.
A second TWLED-4PD2 set is required to illuminate both levels.
Données technique
IP class | IP67 |
Power supply | 230 V |
Energy consumption | 229 W |
Average lifetime* | environ 50 000 h |
Ambient temperature | -10 °C à +45 °C |
Width x height | 15 x 9 mm |
*Lorsqu'ils sont correctement installés avec une gestion thermique adaptée au produit
Données photométriques
LED type | RGBW |
Luminous flux | rouge 100 lumens per m vert 280 lumens par m bleu 60 lumens par m blanc 790 lumens per m R+G+B+W 1230 lumens par m |
Wavelength | rouge 620 nm vert 525 nm bleu 470 nm |
Color temperature | blanc 6000 K |
Beam angle | 180° |
Contenu de la livraison
- 4x Bande LED RGBW, 400cm
- 1x transformateur
- 1x jeu de câbles avec connecteurs
- 1 télécommande, fixation magnétique
- 1x matériel de fixation pour la pose de câbles
