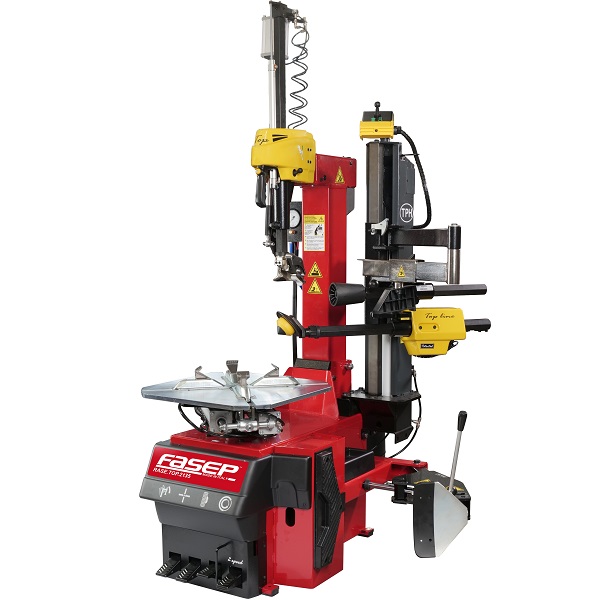

Super automatic tire changer - RASE.TOP.2135
RASE.TOP.2135 is a super automatic tire changer, designed for tire specialists, needful for oversize and racing tires. It encloses the simplicity and practicality of traditional tire changers with practicality of use on Run-Flat tires of new machine with Leverless, Pedal inflation with manometer on control panel , with reasonable cost.
Technical features
| Caractéristique | |
|---|---|
| Suitable for | Car, Vans, SUVs and Light Trucks wheels. Normal, RFT, UHP tires. |
| Self-centering turntable | 4 clamps and 2 cylinders |
| Adjustable clamps | 2 positions |
| Steel Plate thickness | 15 mm |
| Motor | 2 speeds |
| Tilt-back column | Pneumatic |
| Pneumatic lock of the mounting head | Yes |
| Pneumatic control of the mounting head | Yes |
| Bead breaker cylinder | Double acting |
| Bead breaker tool | Free-moving with plastic protection |
| Mounting head | Leverless |
| Tire inflation gun | With manometer gauge |
| Tire Lever | Included |
| Foot pedals unit | Removable |
| Hexagonal shaft | 41 mm |
| Pressure regulator | With filter and manometer |
| Air lubricator | Automatic |
| Grease container and brush | Included |
| Inflation pressure limiter | 4 bar |
| Bead pressing help device | PRESS TOP (with 2 pressure points) |
| Bead-breaking cushion | Adjustable width |
| Bead breaking force | 2900 kg |
| Max rotation torque | 1,08 kN (110 Kgm) |
| Rim max diameter | 10–26" |
| Max wheel diameter | 1060 mm (42") |
| Max wheel width | 370 mm (14,5") |
| Noise | < 70 dB (A) |
Power | 380-415 VAC 50Hz 3Ph |
