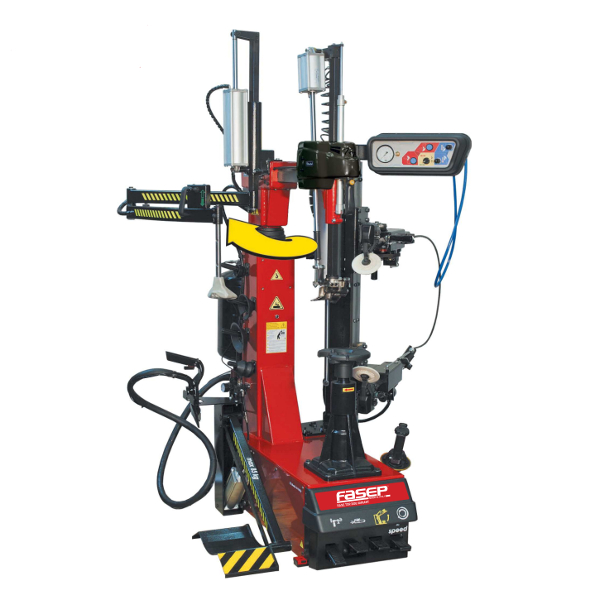

Super automatic lever-less tyre changer - RASE.TOP.3030 VARIANT
RASE.TOP.3030.VR is a super automatic lever-less tyre changer, particularly recommended for RUN-FLAT, SSR and any type of very tough tyres. It is suitable for car wheels having rim size from 12” to 30”, without any need for lever or other tools to dismount and mount any tyre. RASE.TOP.3030.VR easily remove tyre form the rim thanks to its double pneumatic syncro-rollers. It is equipped with side PRESS-PRO device.
Equiped with the inverter two speed motor, pneu-lock, Pneumatic Swing, Leverless, Pedal Inflation, Lifter.
WDK certified, for Car, Vans, Light Trucks wheels with normal, RFT, UHP tires.
| Caractéristique | Valeur |
|---|---|
| Super Automatic Lever-less Tire Changer | Yes |
| Suitable for | Car, Vans, SUVs and Light Trucks wheels. Normal, RFT, UHP tires. |
| Center clamp | Mechanical locking |
| Motor | 2 speeds |
| Vertical arm | Side rotation (pneumatic swing) |
| Pneumatic lock of the mounting head | Yes |
| Pneumatic control of the mounting head | Yes |
| Bead breaker | 2 synchronized and independent discs |
| Mounting head | Leverless |
| Inflation control | Pedal inflation with manometer on control panel |
| Centering kit | 4 cones |
| Plastic protections | Set for alloy rims |
| Lever for leverless | Included |
| Hexagonal shaft | 41 mm |
| Pressure regulator | With filter and manometer |
| Air lubricator | Automatic |
| Inflation pressure limiter | 4 bar |
| Wheel lifter | 85 kg |
| Bead pressing help device | Yes |
| Rim max diameter | 12–30" |
| Max wheel diameter | 1150 mm (45") |
| Max wheel width | 380 mm (15") |
| Noise | < 70 dB (A) |
| Power | 380-415 VAC 50Hz 3Ph |
| Presentation |
|---|
