Super automatic tire changer (RASE.TOP.2132.T)

https://www.garagepro.ch/web/image/product.template/52076/image_1920?unique=5c6e125

CHF 8 324,70 8324.7 CHF CHF 8 324,70 Hors TVA

CHF 8 324,70 Hors TVA

Veuillez nous contacter pour toute commande

Cette combinaison n'existe pas.

​
Contactez-nous

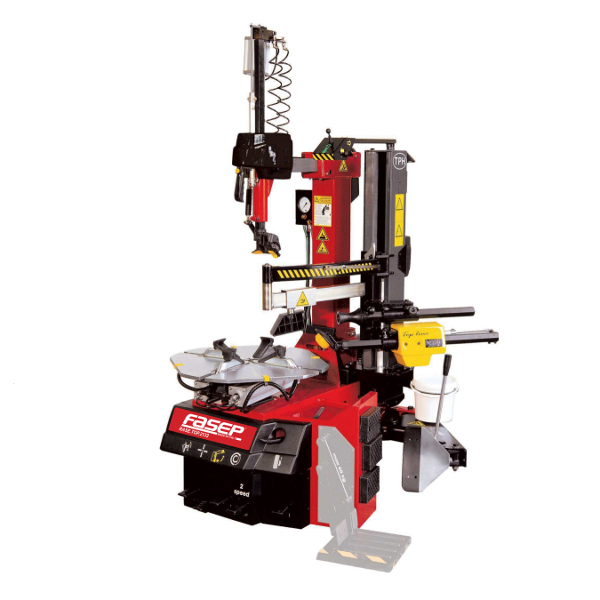

Super automatic tire changer - RASE.TOP.2132.T

RASE.TOP.2132.T is a super automatic tire changer, designed for tire specialists, needful for oversize and racing tires. It encloses the simplicity and practicality of traditional tire changers with practicality of use on Run-Flat tires of new machine with Leverless and tubeless, with reasonable cost.


Technical features

Caractéristique Valeur
Suitable forCar, Vans, SUVs and Light Trucks wheels. Normal, RFT, UHP tires.
Self-centering turntable4 clamps and 2 cylinders
Steel Plate thickness15 mm
Motor2 speeds
Tilt-back columnPneumatic
Pneumatic lock of the mounting headYes
Pneumatic control of the mounting headYes
Bead breaker cylinderDouble acting
Bead breaker toolFree-moving with plastic protection

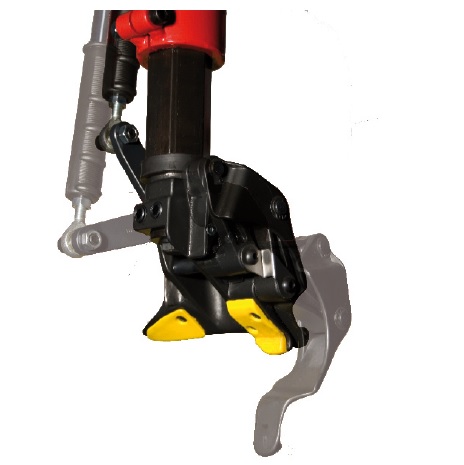

Mounting headLeverless
Tubeless jet inflationOn turntable
Inflation controlPedal inflation with manometer on control panel
Lever for leverlessIncluded
Foot pedals unitRemovable
Hexagonal shaft41 mm
Pressure regulatorWith filter and manometer
Air lubricatorAutomatic
Grease container and brushIncluded
Inflation pressure limiter4 bar
Bead pressing help devicePRESS TOP (with 2 pressure points)
Bead-breaking cushionAdjustable width
Bead breaking force2900 kg
Max rotation torque1,08 kN (110 Kgm)
Rim max diameter11–27"
Max wheel diameter1100 mm (43")
Max wheel width406 mm (16")
Noise< 70 dB (A)
Power380-415 VAC 50Hz 3Ph


RASEtop2132-cat-r8.2.pdf View
