E605.028

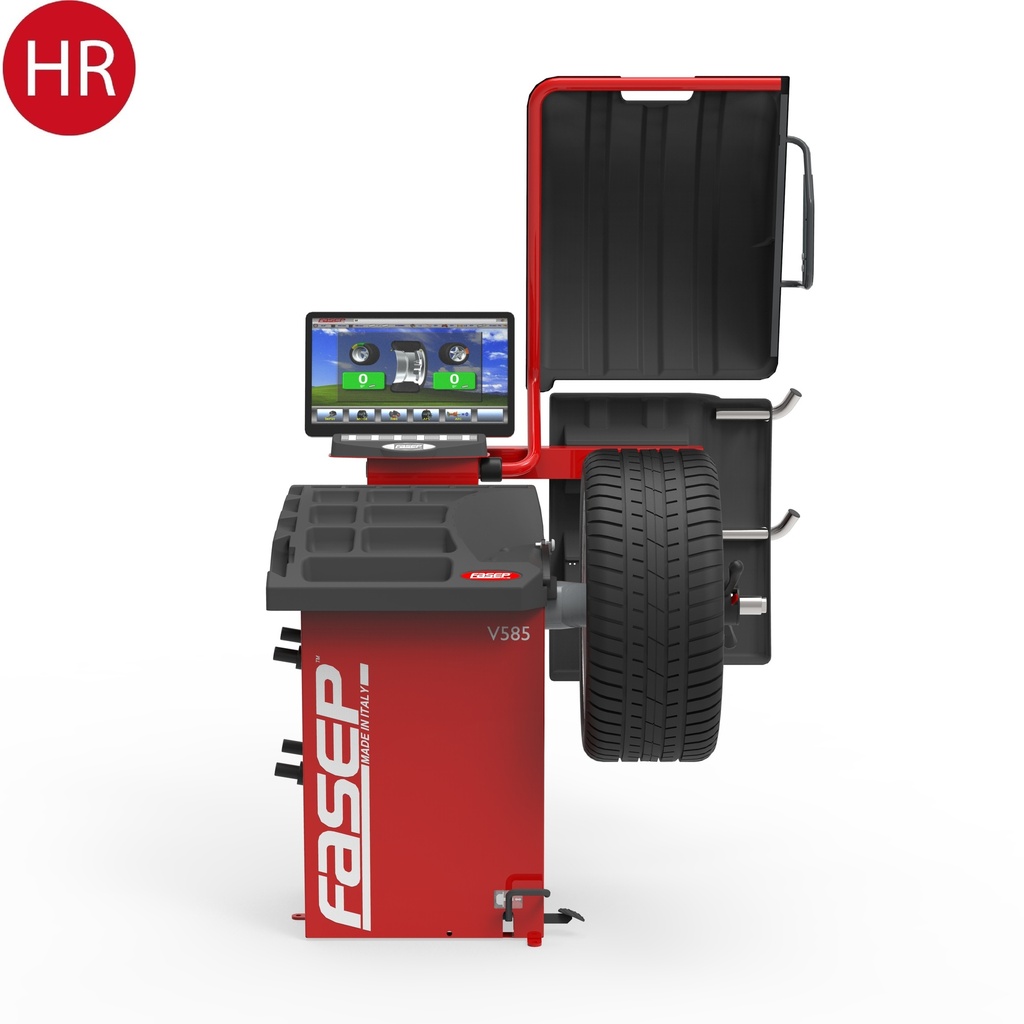

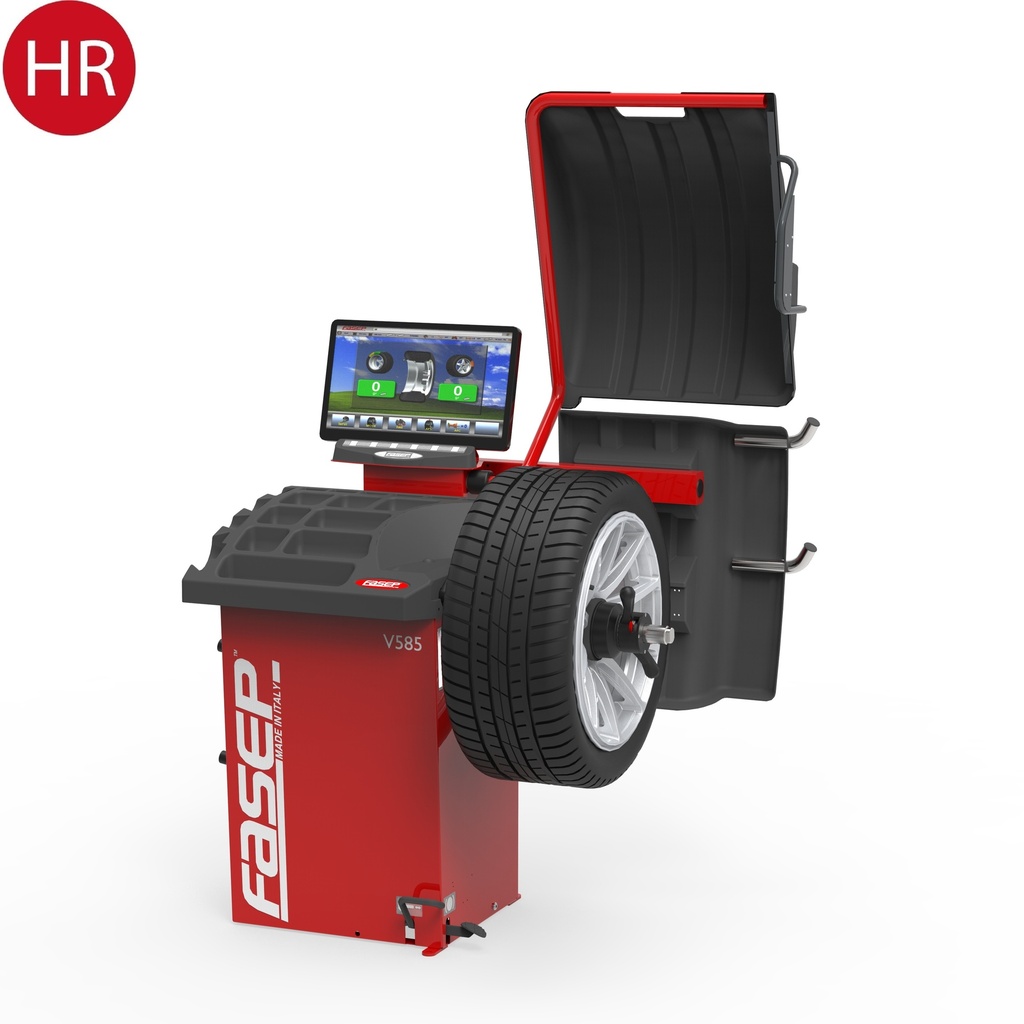

Wheel balancer (V585.3 Premium)

https://www.garagepro.ch/web/image/product.template/52082/image_1920?unique=a44393c

CHF 6 474,56 6474.56 CHF CHF 6 474,56 Hors TVA

CHF 6 474,56 Hors TVA

Veuillez nous contacter pour toute commande

Cette combinaison n'existe pas.

​
Contactez-nous

Wheel balancer (V585.3 Premium)

Designed for the tyre specialists, V585.3 is the perfect combination between price and performances. V585.3 incorporates the latest low-speed technology with 16- bit electronics. Also, the software, stored on a Flash memory, can be upgraded in seconds. The Heavy Dut shaft allows 90 kg of maximum weight on the shaft, a record unsurpassed. The heart of the balancer is built around the TriSensor System, a FASEP exclusive design, and IFS System (integrated-flange shaft) for maximum centering accuracy. Customized special version.

Technical features

Caractéristique Valeur
Suitable forCar, Vans, SUVs and Light Trucks wheels
Electronics16-bit G3.EXTREME high-tech electronics with electronic motor control (Inverter)
USB portProgram updates and diagnostics
NetworkExternal Ethernet connection
Motor3Ph with electronic control (inverter)
Rotation speedLow Speed (98 RPM)
Monitor21.5" LCD
Operating SystemWinCE
SoftwareFULL level wheel balancing
Flange systemIFS Heavy Duty (max 90 kg)
Measuring systemTRI.S3NSOR – 3 Piezo sensors
Shaft diameter40 mm
Shaft height700 mm
Flange offset250 mm
Shaft length210 mm
Position sensor256 steps
BasementEasy ALU
Pneumatic LockPLS
BrakeEMB Electromagnetic Brake (Lock-in-position)
Start systemAutomatic Start-Stop
Positioning systemAPS2 Automatic (with run-time correction) (G3 only)
Data input3D Sonar automatic (distance + diameter + width)
Laser systemLaser Point for stick-on weight application
Wheel guardAutomatic start of wheel spin + Lower Wheel-guard
Weights holderABS – 7 compartments weights, 3 cones, 1 tools
LED LightingLED LIGHT inside rim
CalibrationSelf Calibration with calibration weight
DiagnosticsSelf Diagnostic
Flange CalibrationAFC (Automatic Flange Calibration)
ALU programsStick-on weights
ALU-SE / ALU-PAXStick-on weight application
AUTOSELECT2Automatic balancing mode selection (DYN-ALU)
OptimizationTire-Rim Dynamic Unbalance Match Programme
ASF FunctionsALU-Mat, ALU-Din
MOTO programYes
User SetupYes
SPLIT programHidden weights
FAST programYes
MARSStatic minimization
DOUBLE OPERATORYes
STATS programYes
WOW functionWeight Saving
FCC programYes
Cones42–98 mm
Max wheel weight90 kg
Rim max diameter10–26"
Max wheel diameter     864 mm (34") with wheel-guard
Power200–240 VAC, 50–60 Hz, 1Ph INV




V585.2-cat-r8.2.pdf View
