Wheel aligner - WALLY
SPACE-SAVING solution: zero footprint, maximum performance!

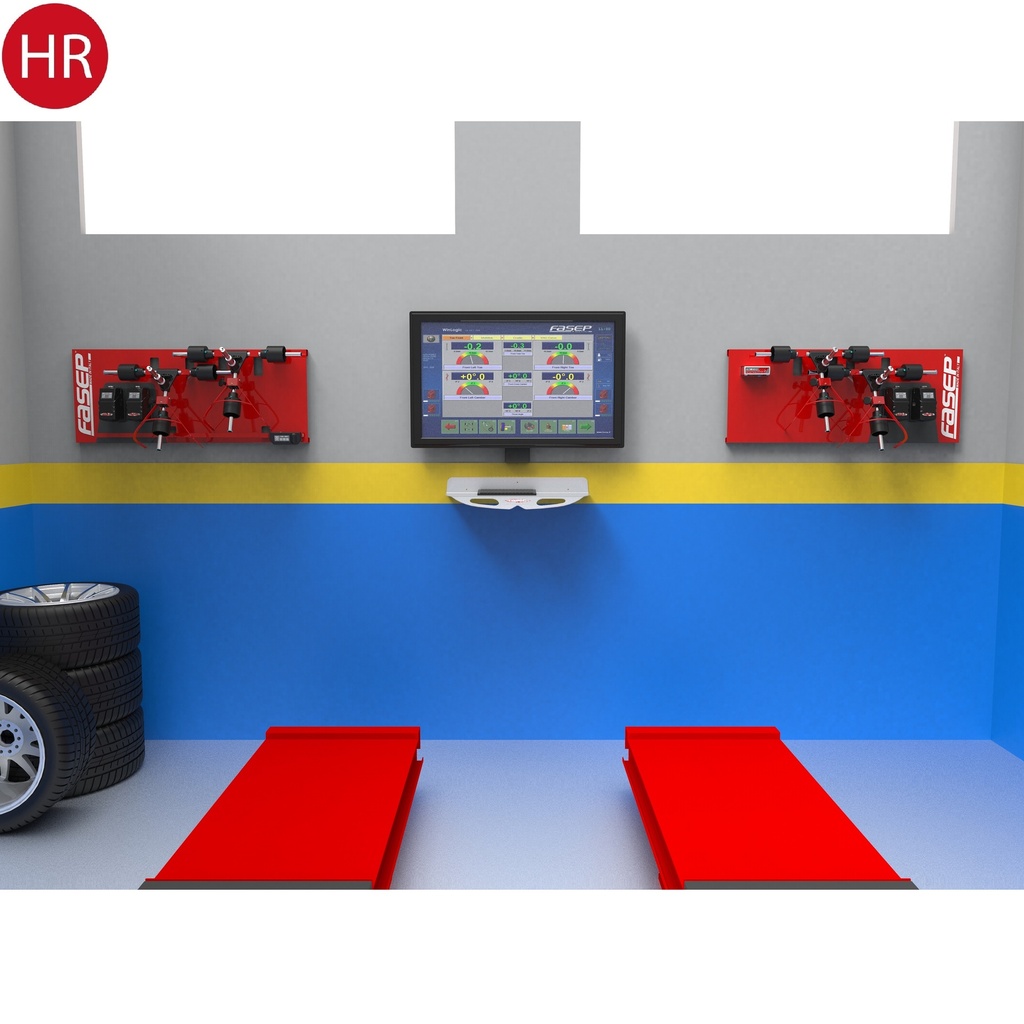

Everything you need for a high-quality wheel aligner is right here in front of you.Wally is a true space-saving system: simply mount it on the wall of your workshop to free up valuable floor space for work.
Low cost, minimal footprint, outstanding performance!
Designed for garages, body shops and dealerships where traditional alignment service is difficult due to limited space, Wally delivers the same performance as fully computerised systems. Expect identical measurement accuracy, speed and throughput—at a significantly lower cost and with a dramatically reduced footprint.
Works with any notebook or WiFi keyboard
Wally is a compact powerhouse of technology—an innovative wheel-alignment solution compatible with any type of PC. Users can control their computer remotely using a WiFi keyboard or connect Atomic directly to a notebook via Bluetooth. This eliminates wasted time and allows full 360° management of alignment functions from underneath the vehicle.
Expand your customer services!
Today’s market demands a wider range of workshop services. Offering wheel alignment means higher profits and more frequent customer visits. With minimal investment, Wally allows you to grow your business and enhance your service offering!
Technical features
| Caractéristique | Valeur |
|---|---|
| Suitable for | Car, Vans, SUVs and Light Trucks wheels |
| Installation | On-the-wall mounting |
| Included hardware | PC, monitor, printer NOT included |
| Operating System | Windows 7 / Windows 10 IoT Enterprise |
| Software | EASY level wheel alignment |
| Databank | Upgradable via internet |
| Guided Procedure | 3D animations for alignment process |
| USB Interface | Yes |
| Measuring System | FASEP system |
| Sensors | 4 WinTRAX2 infrared sensors (radio transmission, multilink, accelerometer for electronic level control) |
| Battery Charger | Integrated on the wall panel |
| Contact Clamps | 10–26" |
| Run-Out Compensation | Not required |
| Track Gauge | Electronic |
| Turntables | Standard (750 kg) |
| Industry 4.0 | Compatible |
| Steering Lock | Included |
| Brake Pedal Depressor | Included |
| Power | 200–240 VAC, 50–60 Hz, 1Ph INV |
Media
| How to use FASEP WinTRAX2 Wheel Alignment Measurement System |
|---|
