Description

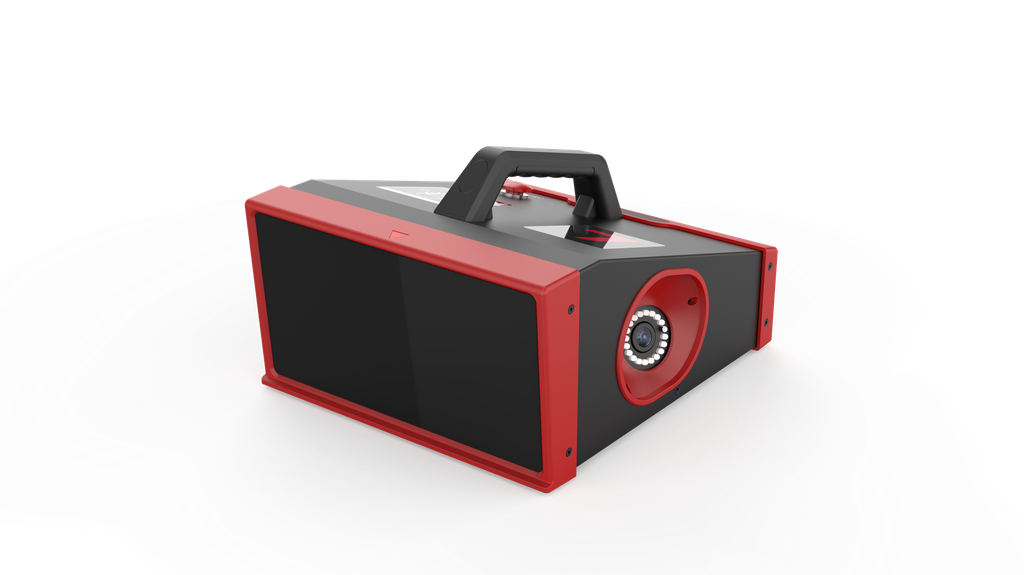

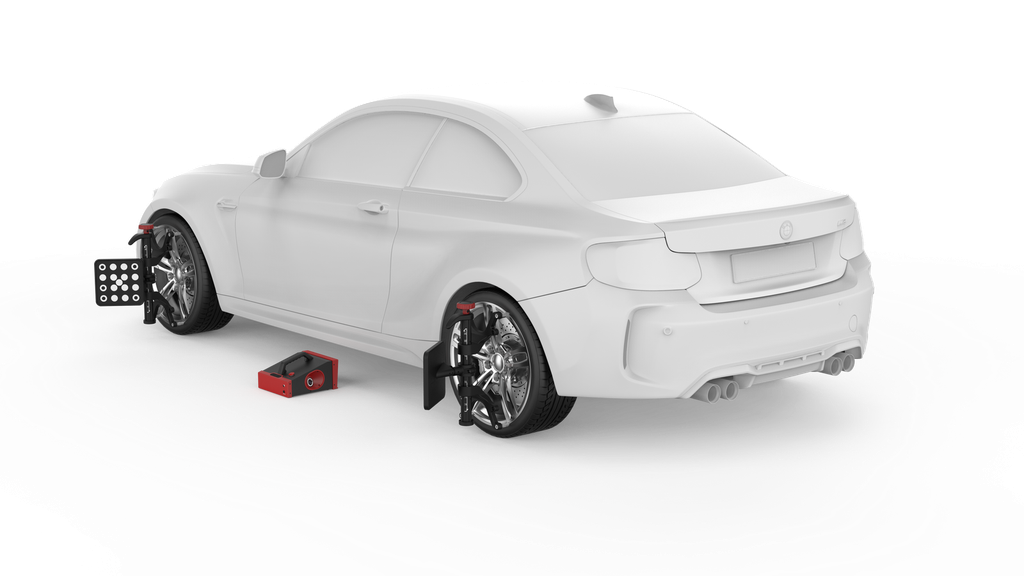

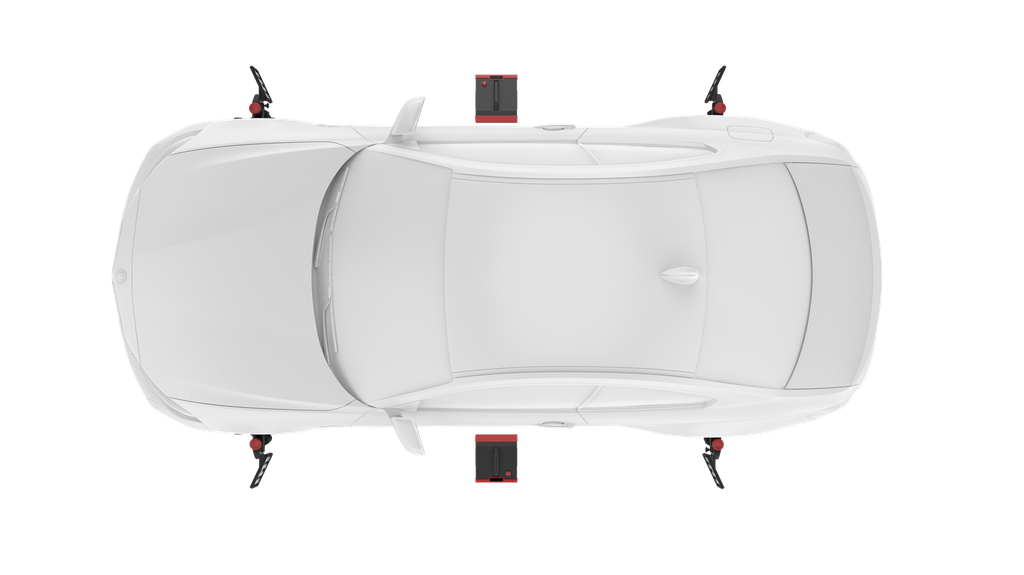

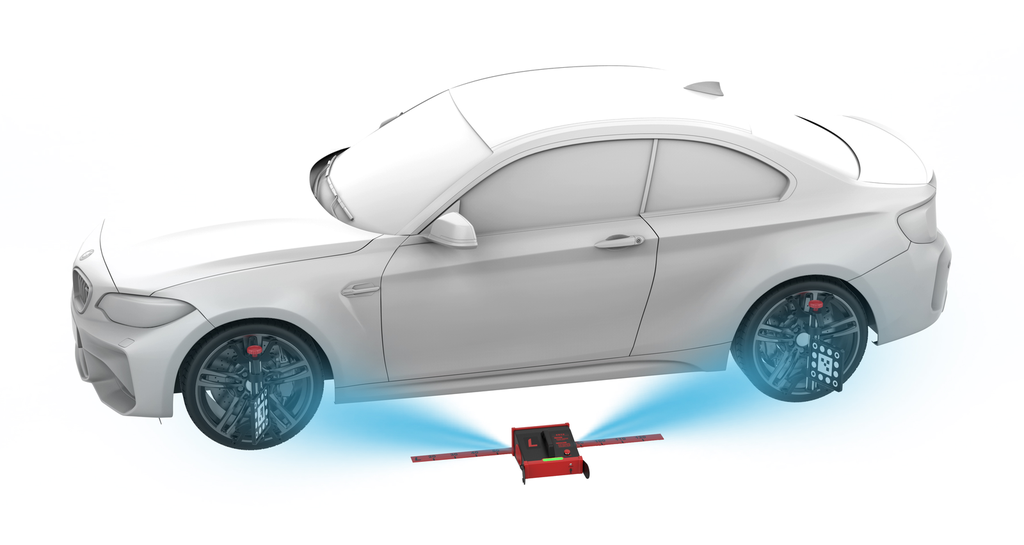

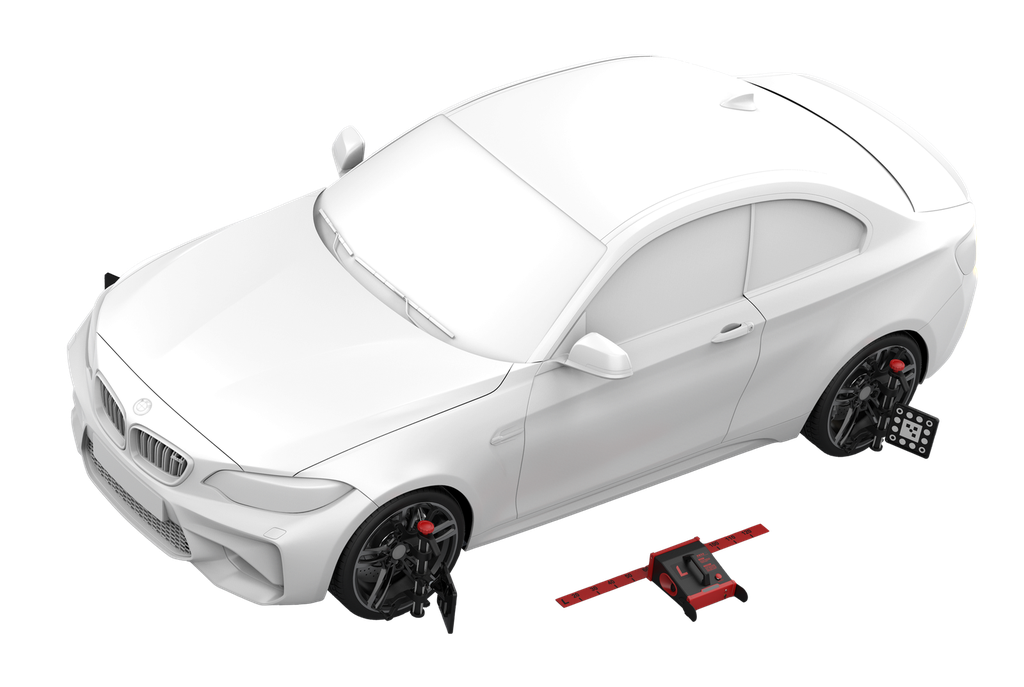

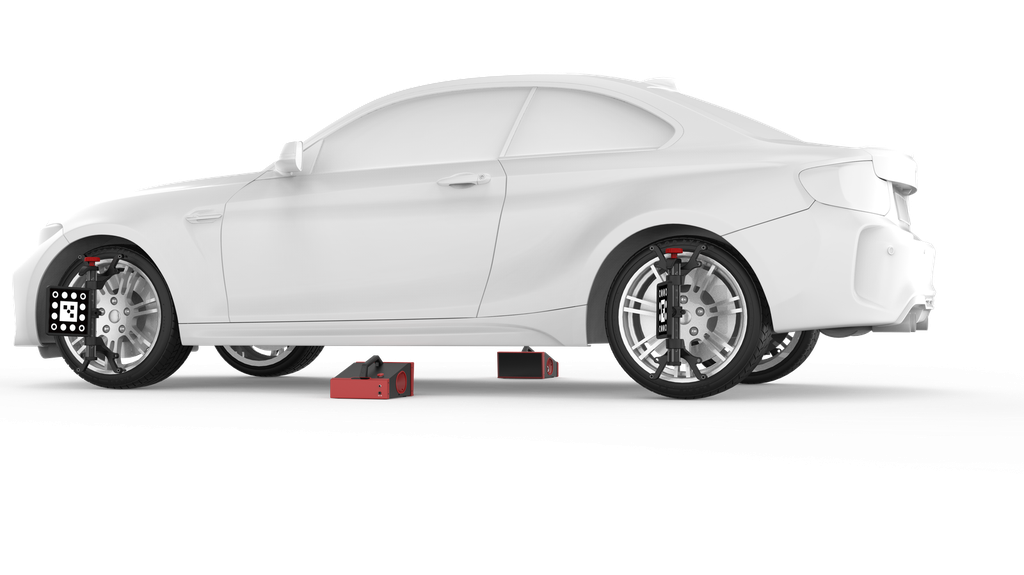

The WA613F is a wireless 3D wheel aligner with a brand new industrial design form. It is used to detect the relative positions and angles between vehicle wheels in order to determine the wheel alignment parameters. This guides automobile maintenance technicians in adjusting the wheel alignment parameters to meet the requirements of automobile design, ensuring smooth and safe driving, reducing fuel consumption and tire wear. The wireless 3D wheel aligner is easy to operate, unaffected by the levelness of the platform, and the tilt of the vehicle body will not affect its accuracy. Dynamic measurement is enabled by pushing the vehicle or rolling the wheels, thus improving the efficiency and accuracy of the measurement.

• Ready to use out of the box, no assembly or wiring required; factory calibration-free.
• Compatible with multiple platforms, can be adapted to large scissor lifts and four-post lifts.
• With the ST13 intelligent link terminal, measurement data is wirelessly transmitted, allowing you to observe the measurement process and results at any time, making it convenient for chassis adjustment.
• Equipped with a large capacity battery, it is not required to connect to power during the measurement process, making it safer.
• Supports two types of four-wheel alignment measurement methods: standard measurement and quick measurement. It can measure key parameters such as toe-in, camber, caster, kingpin inclination, and thrust angle. It also supports additional measurements such as wheelbase, track width, axle offset, wheel offset, diagonal, and center offset.
• Covers four-wheel alignment data for over 50,000 global vehicle models, and supports user customization.
• Generates professional inspection reports, supports comparison of data before and after tuning, and supports report sharing.
