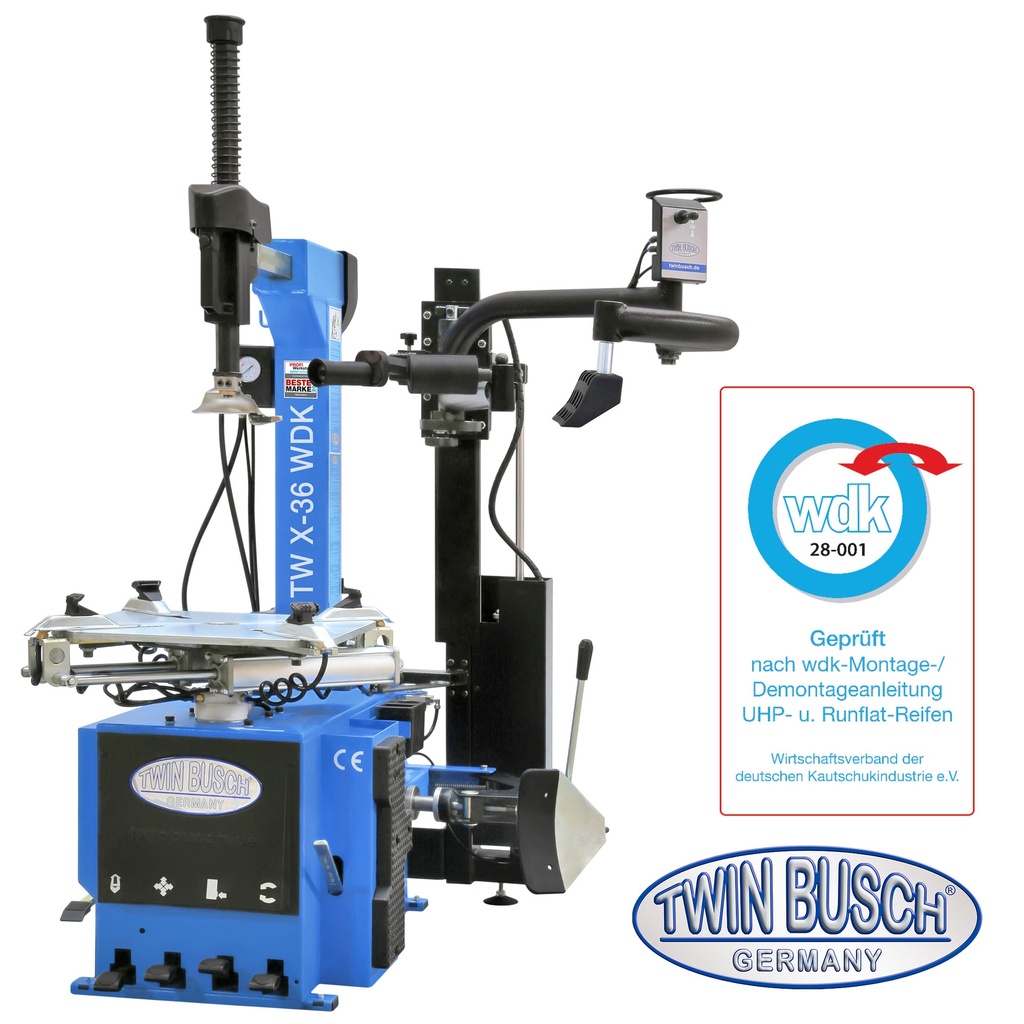

TWX-36WDK: Tyre changer - 2 Speed with WDK certificate
Products description
TWX-36WDK 2 Speed with WDK certificate!
A tyre fitting machine with a pneumatically adjustable mounting arm and a built in Air booster. For standard-, low profile, UHP and run flat tyres. The TWX-36 with assistant mounting arms is a tyre fitting machine of a professional level, tested according to the strict and rigorous WDK regulations.
The TWX-36WDK has many extra features like the assistant arms and the hydraulic holding rollers and also the specially formed tyre holder.
The 2 speed turntable (7 and 14 rpm) enables precise fitting and a strong bead breaker with pressure limiter, adjustable bead holder, bead chain. Rim protection and a WDK approved tyre lever.
With the TWX-36WDK is professional tyre fitting without rim damage guarantied.
Product presentation
Assembly
Features
- WDK-Certificate
- Top built quality with CE- certificat
- Manufactured to ISO 9001
- 2 speed turntable (7 and 14 rpm)
- Adjustable tilting arm
- Robust construction
- Tyre and rim damage free mounting according to WDK
- Pneumatic mounting head locking
- Strong bead breaking (3000 kg)
- Self centring 4 clamping system
- Large clamping range 12" (305 mm) - 26" (661 mm)
- Built in Air booster to aid tyre fitting
- Changeable mounting head rim protectors
- Strong electric motor for easy tyre fitting
- High quality steel clamps for long life
- Quality controls for fine adjustment and stop function
- Tyre fitting machine with water trap/ lubricator
- Tyre inflator and tyre lever according to WDK
- Rim protector
- Bead press (adjustable)
- Bead chain
- Bead press restrictor
- Plastic clamp protector
- Mounting head protector (Alu, set of 3)
- User manual
Technical data
TWX-36WDK - Overview
2-Speed Rotation
The TWX-36WDK has a 2-speed rotation speed of 7 and 14 rpm. These setting options enable precise and efficient mounting and demounting of tyres.
Clamping jaws
Self-centring 4-claw system with large clamping range from 12‘ (305 mm) on the outside to 26’ (661 mm) on the inside for cars and vans, made of special steel for high stability and durability. The built-in air booster in the clamping claws also ensures efficient and powerful clamping force when fitting tyres.
Bead breaker
A powerful side bead breaker cylinder with bead breaker limiter and a bead breaking force of 3000 kg ensures efficient and powerful bead breaking of tyres.
Mounting head
The specially shaped mounting head ensures that tyres are mounted precisely and securely. With replaceable plastic glides, it protects the rims from damage and adapts to different types of rims to ensure quick and efficient tyre fitting.
Mounting arm 1
The auxiliary mounting arm is equipped with two hold-down rollers and a special push-down device.
Mounting arm 2
The pneumatically tilting mounting arm with automatic distance control ensures a distance of 2-3 mm and thus enables the rim to be mounted gently.
Tire inflator
Convenient and clearly arranged tyre inflator for easy and precise tyre inflation.
Pedals
Five easy-to-operate foot pedals enable intuitive and ergonomic operation of the tilt arm, direction of rotation, clamping jaw, tyre inflator and tyre ejection functions.
The original TWIN BUSCH Tyre Mounting Wax TW1530MP makes mounting easier and helps with removal later on.
Product dimensions
Delivery contents
- Tyre fitting machine with water trap/ lubricator
- Tyre inflator and tyre lever according to WDK
- Rim protector
- Bead press (adjustable)
- Bead chain
- Bead press restrictor
- Plastic clamp protector
- Mounting head protector (Alu, set of 3)
- User manual
- The lift arrives bolted to a transport frame.
- Important note! The customer must have a forklift available for unloading!
- Please note that access for a lorry of 18 t to 40 t must be possible for deliveries.
- According to international haulage law, the driver only has to deliver the goods to the kerbside. If there is level access to your hall or garage, the carrier will usually be happy to deliver the goods there.
Dimensions and weight
