Scissor lift - 5.0 T - Under floor - GREY-Line

CHF 18,650.32 CHF 18,650.32 VAT Excluded
CHF 18,650.32 VAT Excluded

Add to cart
Add to wishlist
Contact Us
Documents
TWSA-50U-400-G_de_handbuch.pdf TWSA-50U-400-G_en_manual.pdf TWSA-50U-400-G_fr_manuel.pdf twinbusch_fundamentplan_sa-50u_uk.pdf

Internal Reference: TWSA-50U-400-G

TWSA-50U-400-G: Scissor lift - 5.0 T - Under floor - GREY-Line

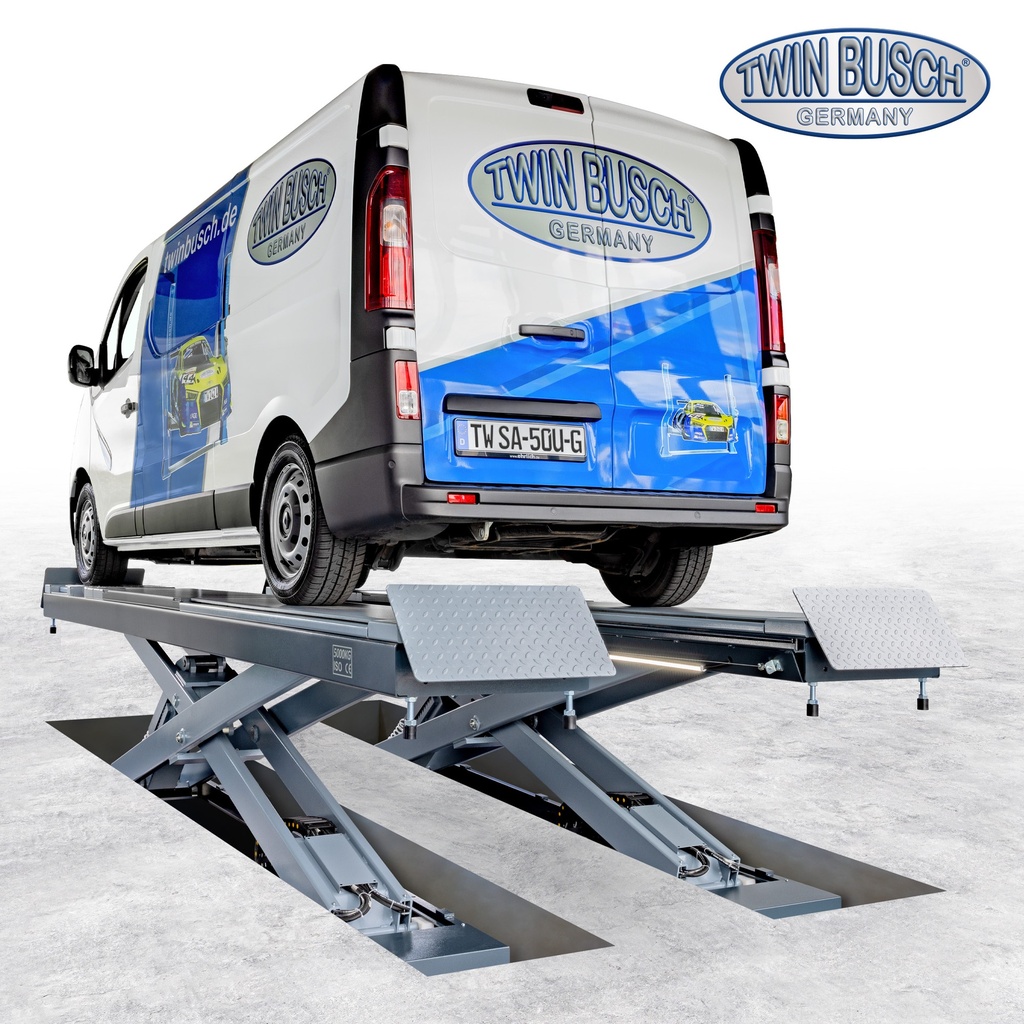

The scissor lift is designed for floor-level installation and has an integrated wheel-free jack and a joint play detector*.
The integrated wheel-free jack, with an extension of up to 2200 mm, allows the complete vehicle up to 4000 kg (car) to be lifted with all four wheels.

Furthermore, the TWSA-50U-G has running rails in the tracks, which allows the use of an additional axle-free jack for lifting transporters.

The swinging plates at the rear (with pneumatic locking) and recesses at the front with 6 insertion plates for turntables enable a very flexible range of applications from small to large wheelbases.
In addition, the lift is equipped with integrated LED lighting on both sides of the lane.
The joint play detector is included in the scope of delivery and is controlled by a radio remote control integrated into the LED hand lamp.

A grid system is available for wheel alignment, which enables safe setting in the safety notches and is therefore also ideal as a reception platform or as a headlight test station.

*Only vehicles ≤ 3.5t may be tested with the joint play tester.


Product presentation Assembly

Features
1A Quality built with CE certificate
Manufactured according to ISO 9001
CE – Stop and audible warning when lowering
Hydraulic synchronization (following concept)
IR SYSTEM synchronisation monitoring by light barrier
Wheel-free lift with extendable vehicle supports up to 2200 mm and 4 t load capacity
Guide rails for using the axle-free jack
Including joint play tester with LED hand lamp and radio control
Automatic safety lock-release system
Ramp with anti roll off saftey
LED lighting possibilities on the lift
Hose package 3000 mm
Compressed air from 4 to 8 bar is required

Technical data
Parameter Value
Lifting capacity5000 kg
Lifting height max.2130 + 410 mm
Platform length / width5400 / 650 mm
Lifting time (approx.)25 / 30 sec.
Power supply400 V / 3 phases
Motor power2,2 kW
Fuse protection16 A
Weight2845 kg
Axle load (joint play detector)4000 kg
Wheel load (joint play detector)2000 kg
Thrust force, longitudinal and transversal (joint play detector)11 kN
Speed, longitudinal and transversal (joint play detector)60 mm/s
Movement per side (joint play detector)50 mm
ColourRAL 7016 (Anthracite), RAL 7000 (Gray)
Note:
This product requires an increased mains voltage for its proper operation and is not equipped with a two-pole mains plug. The installation of non-pluggable equipment must be carried out by the respective network operator or a registered specialist company, which will also assist you in obtaining any necessary approval from the respective network operator for the installation of the equipment.

TWSA-50U-400-G - Overview
Control unit

Control unit

The control unit (24 V / IP 54) ensures a high level of safety and operating comfort in conjunction with two limit switches and CE-Stop.

 Hydraulic cylinder for powerful lifting and lowering

Hydraulic cylinder for powerful lifting and lowering

Four powerful, hard chrome-plated hydraulic cylinders ensure powerful lifting and lowering.

 Release

Release

The automatic safety locking and unlocking mechanism requires compressed air of 4-8 bar!
Wheel-free jack

Wheel-free jack

With integrated wheel-free jack and extendable vehicle mounts for an extended pick-up area.

 Roll on-off protection

Roll on-off protection

Roll-off protection at the front and rear prevents the vehicle from rolling away, thus ensuring additional safety.

 Swivel joints

Swivel joints

All pivot joints and bearings are fitted with DIN lubricating nipples and brass bushes, making them particularly resistant to wear.
Joint play tester

Joint play tester

The joint play tester is included in the scope of delivery and is controlled via a radio remote control integrated in the LED hand lamp. Only vehicles ≤ 3.5t may be tested with the joint play tester.

 LED

LED

The post lift is equipped with integrated LED lighting along the entire length of the carriageway, both left and right.

Product dimensions
check_valve

Delivery contents

  • Lift incl. power unit
  • Axle free jack
  • Rubber blocks
  • Heavy-duty anchor M16 (16 mm drill bit required)
  • Vibrating plates
  • Revolving plates
  • Examination book
  • 1A Quality built with CE certificate
  • English instruction manuals
  • Oil is not included – it can be ordered as an optional extra
  • Car not included
