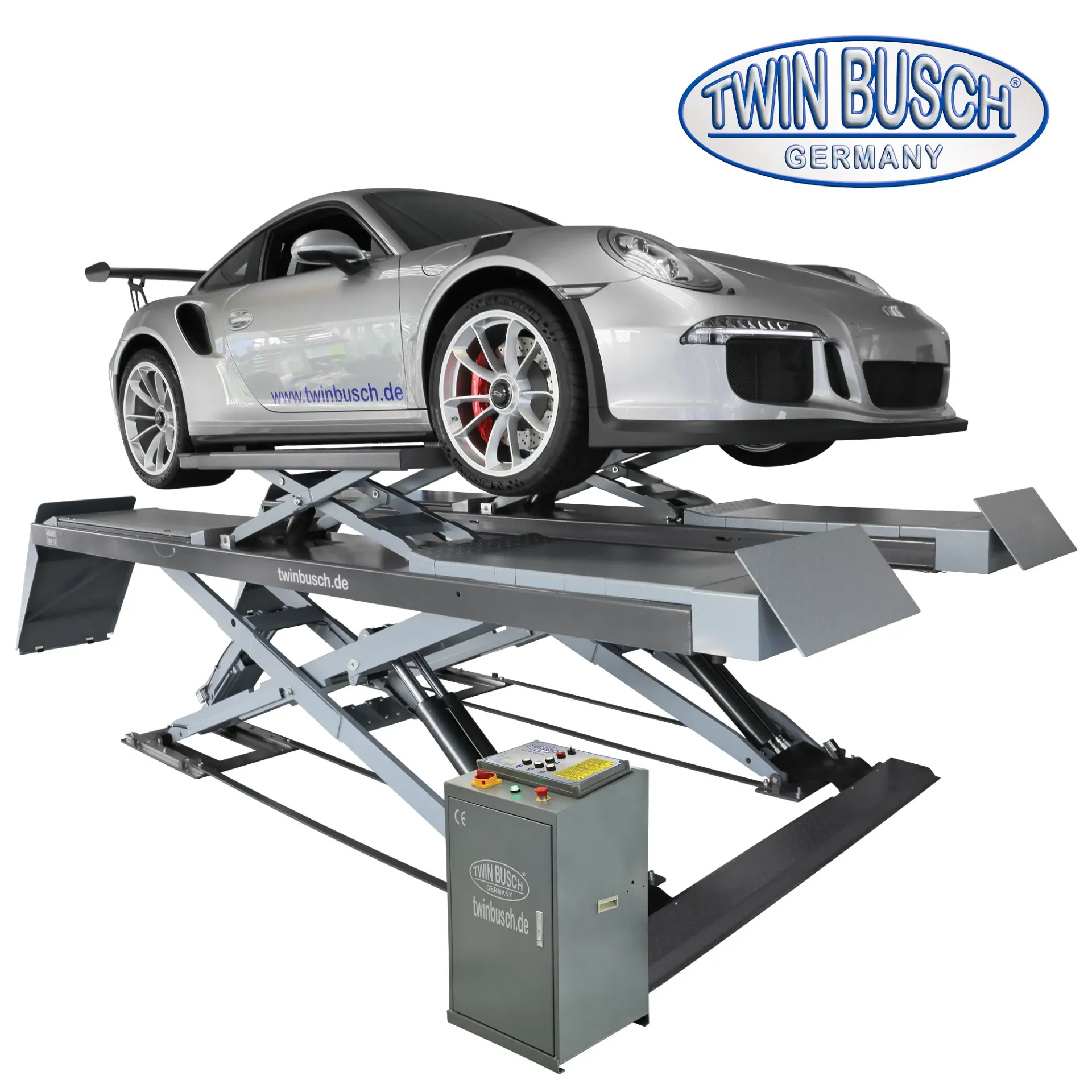

Scissor lift - 4.0 t - Over floor

380 Volt
CHF 13,662.35 CHF 13,662.35 VAT Excluded
CHF 13,662.35 VAT Excluded

Turnkey: delivered, installed, oil included
from CHF 16,589.47 excl. VAT
  • [TWSA-40-400-G] Scissor lift - 4.0 t - Over floor CHF 13,662.35
  • [MONTAGE2190SITE] Assembly service (on site) CHF 2,190.00
  • [HYDRAULICOIL20] Huile hydraulique spéciale HLP32 - 15 litres (copie) CHF 180.39
  • Crane truck delivery (from, depends on your postcode) CHF 556.73
On order · Lead time with installation: approx. 1 to 3 weeks depending on our schedule, date agreed with you.
Leasing possible over 24 to 60 months with Grenke.
Finance with leasing or request a quote
Add to cart
Add to wishlist
Contact Us
Documents
TWSA-40 (NEW)-DEUTSCH TWSA-40-400/-G-ENGLISH TWSA-40-FRENCH TWSA-40-ITALIAN twinbusch_fundamentplan_sa-40_uk.pdf twinbusch_sa-40-v2_handbuch.pdf twinbusch_sa_40_handbuch_uk.pdf twinbusch_tw-sa-40-v2_uk_a.pdf

Internal Reference: TWSA-40-400-G

Scissor lift - 4.0 tonnes - with auxiliary lift - Floor-mounted

The TWSA40V2 floor-mounted scissor lift features an ultra-low-profile design (only 180 mm high) and is therefore also ideal for sports cars. The integrated wheel-free lift allows the entire vehicle (car) to be raised with all four wheels off the ground for wheel alignment, using a ratchet system to secure it in the safety notches. Furthermore, the TWSA40V2 is also ideal as a service lift.

iconProduct overview

iconFeatures

  • 1A Quality built with CE certificate
  • Manufactured according to ISO 9001
  • CE – Stop and audible warning when lowering
  • Synchronous hydraulic control (cylinder sequencing principle)
  • Automatic unlocking system
  • 1A Quality built
  • Wheel-free lift with extensions for a longer lifting range
  • Emergency relief valve
  • Compressed air : 4 to 8 bar
  • Ramp with anti roll off saftey

iconTechnical data

Lifting capacity
4000 kg
Maximum lifting height
1900 + 400 mm
Platform (width / length)
5000/660 mm
Lifting time (approx.)
65/50 seconds
Power supply
400 V / 3 phases
Engine power
3,5 kW
Fuse protection
16 A
Weight
3090 kg
Colour
RAL 5015 (Blue), RAL 7000 (Grey)

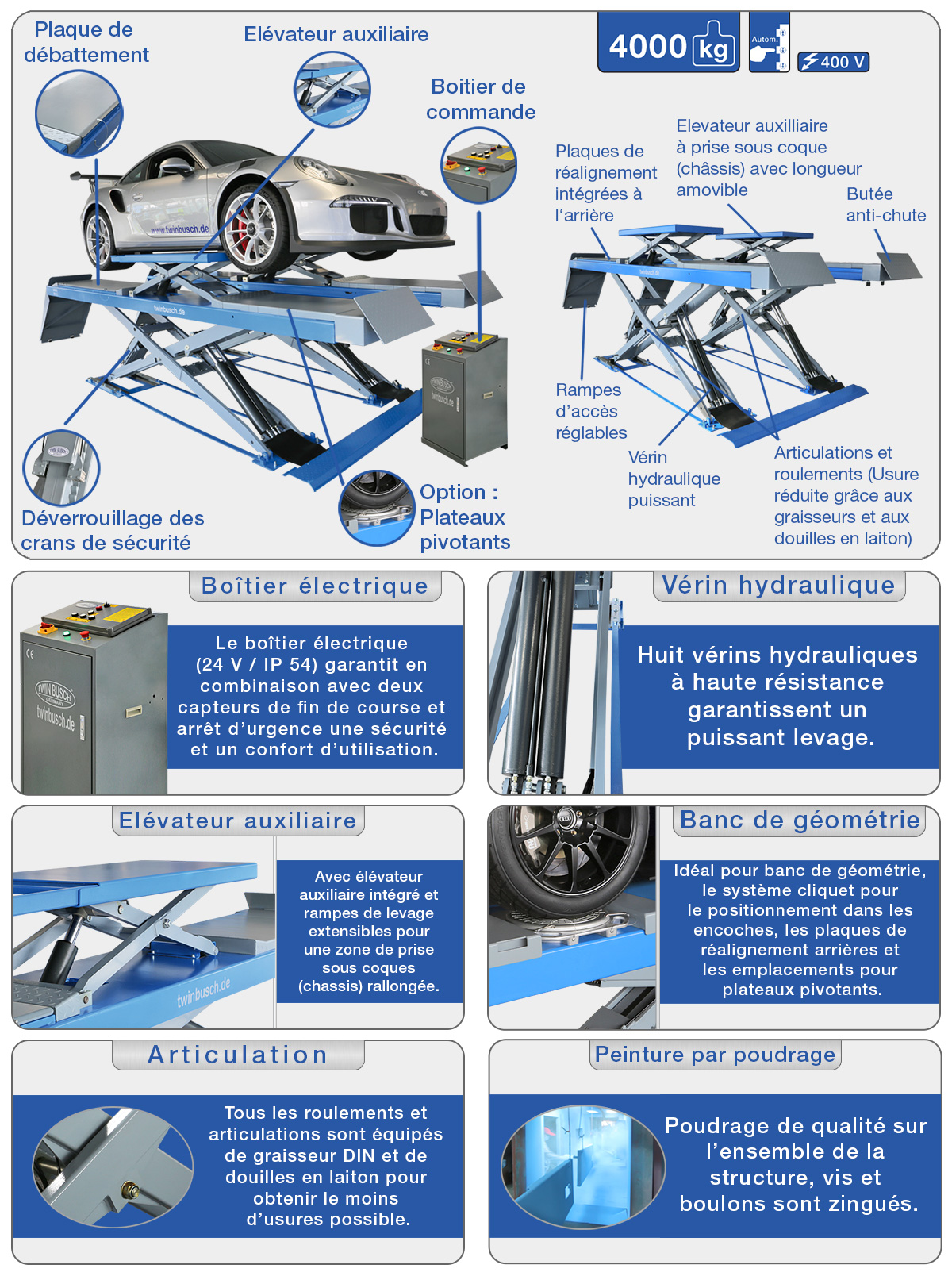

iconTWSA40V2 - Overview

iconProduct dimensions

Dimensions and weight

iconContents of the delivery

  • Lift with power unit
  • Axle-free jack
  • Rubber blocks
  • Sliding plates
  • 6 cover plates (the turntable is optional)
  • User manual in English
  • Examination booklet
  • 1A Quality built with CE certificate
  • Oil is not included – it can be ordered as an optional extra
  • Car not included
  • Important Notice! The customer must provide a forklift at delivery.
  • The lift is supplied in a transport frame.
  • If a fork lift can not be provided, we offer delivery with a forklift at extra cost or we could also install the product.

iconDimensions and weight

iconVideo about the expedition

Dimensions and weight
