TWS35-20E

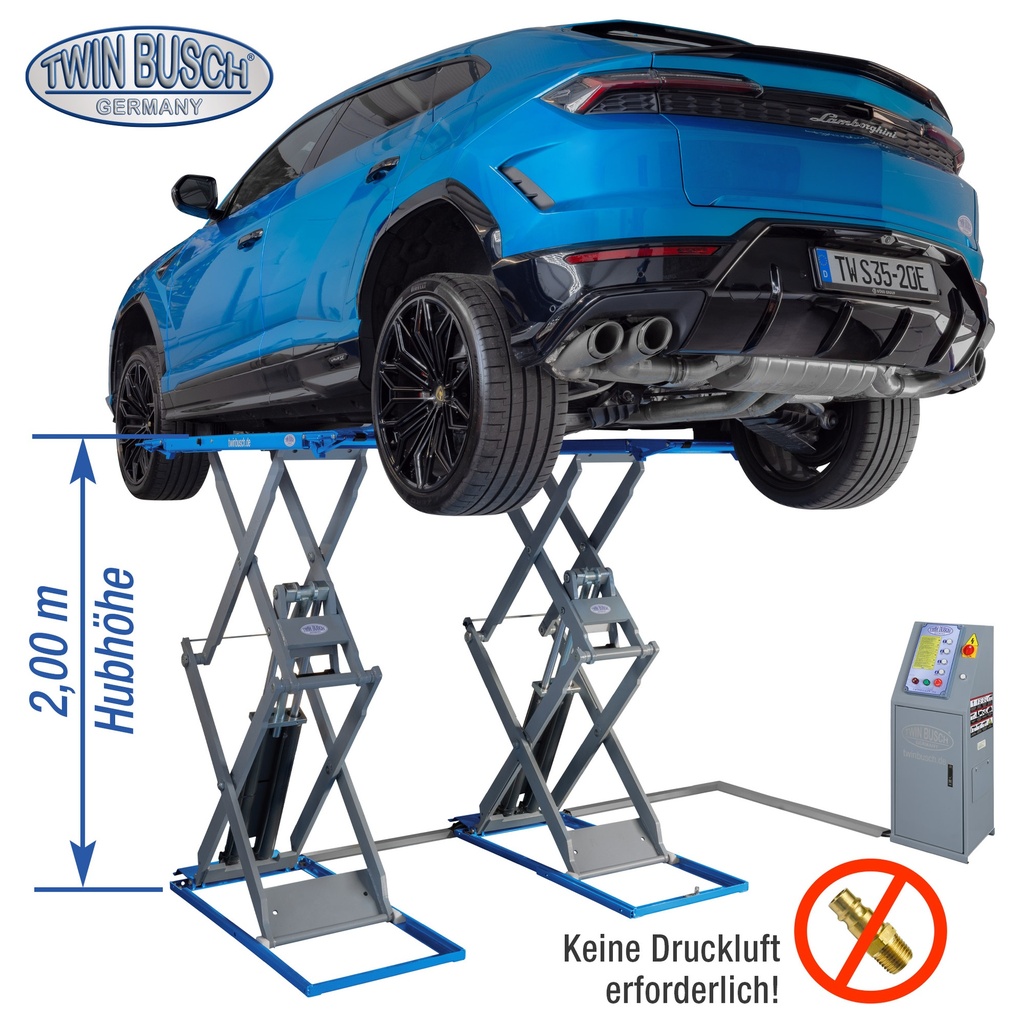

TWS35-20E: Double scissor lift - 3.5 t
https://www.garagepro.ch/shop/tws35-20e-tws35-20e-double-scissor-lift-3-5-t-52107 https://www.garagepro.ch/web/image/product.template/52107/image_1920?unique=8850926Documents
TWS35-20E: Double Scissors Lift - 3.5 t - GREY-Line
The double scissor lift for above-ground installation. Our double scissor lift impresses with its ultra-flat design, which, with a clearance height of only 110 mm, is also perfect for low-slung sports cars.
The double cylinders on each side, in conjunction with the stable rocker arm system, ensure powerful and safe lifting. Thanks to the extendable vehicle supports, even longer vehicles can be lifted without any problems.
Furthermore, the lift has an electromagnetic release, meaning that a compressed air connection is no longer required.
| Product presentation | Assembly |
|---|---|
Features |
|---|
| Top built quality with CE-certificate |
| Manufactured according to ISO 9001 |
| CE-Stop and signal sound during the final lowering phase |
| Twin-hydraulic-cylinders on both sides |
| Hydraulic synchronization (following concept) |
| With electromagnetic release. no compressed air supply is required |
| No connection between both platforms |
| Tip-lever-system for strong lifting |
| Top qualitiy and massive construcion |
| Signal sound (foot protection) |
| Emergency lowering |
Technical data |
|
|---|---|
| Parameter | Value |
| Lifting capacity | 3500 kg |
| Max lifting height | 2 meters |
| Low lifting point | 11 cm |
| Lifting/lowering time | 45/30 sec. |
| Power supply | 400 V |
| Motor power | 2,2 kW |
| Fusing | 16 A |
| Weight (approx.) | 960 kg |
| Colour | RAL 7016 (Anthracite), RAL 7000 (Gray) |
TWS35-20E - Overview |
||
|---|---|---|
UltraflatThe ultra-flat design (only 110 mm) is ideal for sports cars. |
Control unitThe control unit (24 V / IP 54) ensures a high level of safety and operating comfort in conjunction with two limit switches and CE-Stop. |
Hydraulic cylinderTwo powerful, hard-chromed hydraulic cylinders ensure powerful lifting and lowering. |
ReleaseNo compressed air is required due to the electromagnetic release. |
Vehicle supportsThe flexible vehicle ramps provide a longer pick-up area, e.g. for models such as the MB S-Class. |
Tilt lever systemThe tilt lever system enables powerful lifting of up to 3.5 tonnes from the lower area. |
IR-SystemThe post lift is equipped with an IR system that enables synchronisation monitoring by means of a light barrier. |
Cover plateThe cover plate provides additional protection for all hydraulic lines. |
| Product dimensions | |
|---|---|
|
|
|
| Vehicle type / Wheelbase |
|---|
|
The illustrated vehicles are only an example to give you an understanding of different wheelbases and vehicle lengths. Of course, a variety of other vehicle manufacturers and models can be raised. If you have any questions, we are happy to advise you personally! +41 (0) 27 720 10 00 or info@garagepro.ch *The vehicles shown were raised with the manufacturer's or alternative lifting points. Pay attention to our special adapters to ensure safe lifting, since some vehicles, especially in the transporter class, have no lifting points as with most cars. Always follow the relevant equipment regulations of the vehicle manufacturer. Always observe the usual safety precautions during lifting and lowering as well as the correct load distribution, maximum load and always read the manual of the lift. Vehicle status: 2025, Subject to technical changes and errors. Gimp Sàrl provides this graphic exclusively for information purposes! Gimp Sàrl is under no circumstances liable for recommendations from this graphic. |
Delivery contents
- Scissor lift incl. power unit
- Rubber (40 mm)
- Operating and maintenance instructions
- Oil not included – can be optionally ordered
- Car not included
| Dimensions and weight |
|---|
|
|
