TWS3-18UE

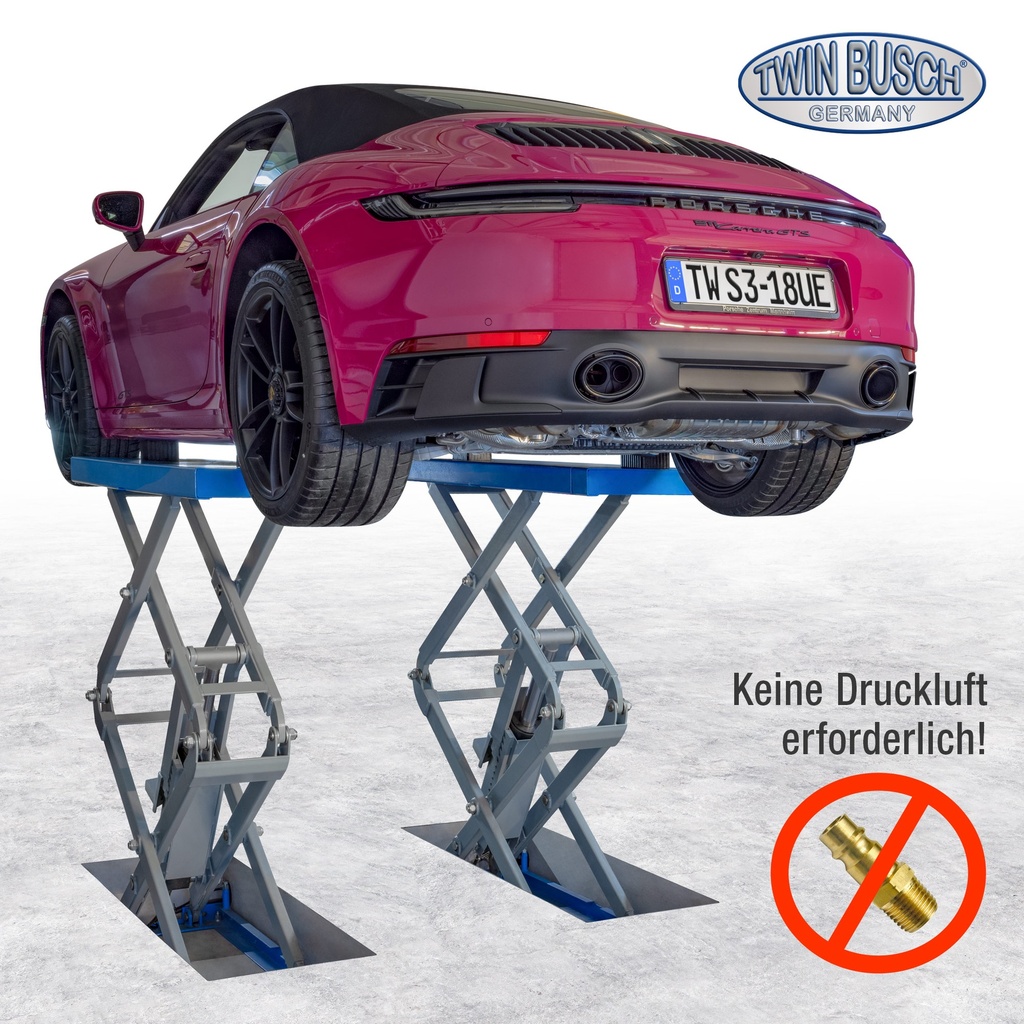

TWS3-18UE: Scissors lift – in-ground mounted – 3.0 t
TWS3-18UE: Scissors Lift - in-ground mounted - 3.0 t
Products description
Professional Scissor Lift TWS3-18UE for Recessed Installation
This scissor lift is ideal for flush-floor installation in drive-through areas and is also suitable for ultra-low sports cars.
Thanks to its extendable lifting arms, even long vehicles can be raised with ease.
The TWS3-18UE requires no compressed air thanks to its electromagnetic unlocking system.
An integrated IR system with light barrier ensures synchronisation monitoring, providing additional safety and precision.
For added convenience and protection in daily use, the lift also features automatic safety locking and unlocking.
Product presentation
Features
- Top built quality with CE-certificate
- Manufactured according to ISO 9001
- CE-Stop and signal sound during the final lowering phase
- Hydraulic cylinders for strong lifting and lowering
- Top qualitiy and massive construcion
- Signal sound (foot protection)
- Automatic safety-lock and unlock
- Extensible platforms
- Emergency lowering
Technical data
TWS3-18UE - Overview
Ultraflat built
The floor-level installation in the passage area is ideal for ultra-flat sports cars.
Control unit
The control unit (24 V / IP 54) ensures a high level of safety and operating comfort in conjunction with two limit switches and CE-Stop.
Hydraulic cylinder
Two powerful, hard-chromed hydraulic cylinders ensure powerful lifting and lowering.
Release
The TWS3-18UE features automatic electromagnetic safety locking and unlocking – entirely without the need for a compressed air supply.
Vehicle supports
The extendable vehicle supports provide a longer support surface, e.g. for models like the MB S-Class.
IR-System
The post lift is equipped with an IR system that enables synchronisation monitoring by means of a light barrier.
Swivel joints
All pivot joints and bearings are fitted with DIN lubricating nipples and brass bushes, making them particularly resistant to wear.
TWS3-V - Accessory
The TWS3-V set consists of 2 turntables and double threads. These are pick-up extensions for picking up vehicles with large distances between the pick-up points in the longitudinal direction, e.g. for picking up VW T5.
TWS3-Q - Accessory
The TWS3-Q set consists of two turntables and double threads. These are crossbeams for lifting vehicles with narrow ladder frames, such as off-road vehicles or vintage cars.
Vehicle type / Wheelbase
The illustrated vehicles are only an example to give you an understanding of different
wheelbases and vehicle lengths.
Of course, a variety of other vehicle manufacturers and
models can be raised.
If you have any questions, we are happy to advise you personally!
+41 (0) 27 722 10 00 or info@garagepro.ch
*The vehicles shown were raised with the manufacturer's or alternative lifting points. Pay attention to our Twin Busch special adapters to ensure safe lifting, since some vehicles, especially in the transporter class, have no lifting points as with most cars. Always follow the relevant equipment regulations of the vehicle manufacturer. Always observe the usual safety precautions during lifting and lowering as well as the correct load distribution, maximum load and always read the manual of the lift.
Vehicle status: 2024, Subject to technical changes and errors. Garagepro provides this graphic exclusively for information purposes! Garagepro is under no circumstances liable for recommendations from this graphic.
Delivery contents
- Scissor lift incl. power unit
- Rubber (40 mm)
- Operating and maintenance instructions
- CE-certificate
- Oil not included – can be optionally ordered
- Car not included
- The lift arrives bolted to a transport frame.
- Important note! The customer must have a forklift available for unloading!
- Please note that access for a lorry of 18 t to 40 t must be possible for deliveries.
- According to international haulage law, the driver only has to deliver the goods to the kerbside. If there is level access to your hall or garage, the carrier will usually be happy to deliver the goods there.
