Low rise scissor lift 3.0 t - GREY-Line

Name: Low rise scissor lift 3.0 t - GREY-Line
Price: 2746.53 CHF
Availability: InStock

380 Volt

CHF 2,746.53 VAT Excluded

Add to cart

Add to wishlist

Documents

twinbusch_fundamentplan_tws3-10e_uk.pdf twinbusch_s3-10e_handbuch.pdf twinbusch_s3-10e_handbuch_en.pdf twinbusch_tw-s3-10-e_uk_a.pdf

Internal Reference: TWS3-10E-G

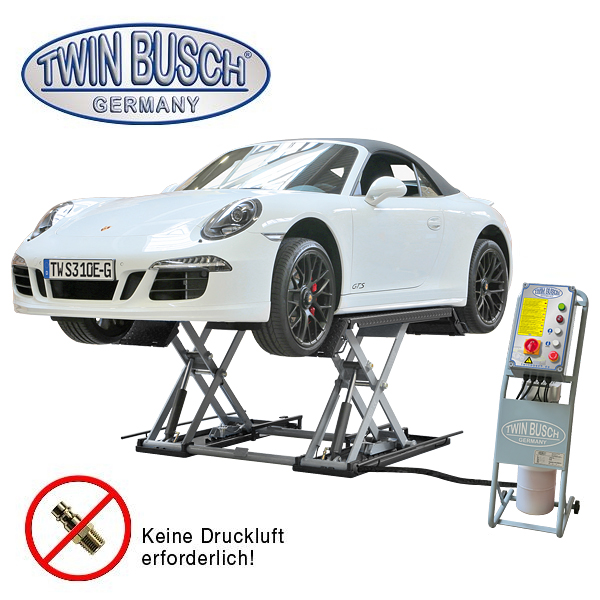

Low-profile scissor lift - 3 tonnes - Lifting height 1m - anthracite colour

Low rise scissor lift. 1000 mm lifting height.

Ideal for tyre, paintwork and bodywork maintenance. With an electromagnetic trigger, no compressed air supply is required.

The platform can be extended by locking the drive mechanism onto the side rails. A very handy mobility kit is available as an optional extra.

Product presentation

Assembly

Features

1A Quality built with CE certificate
Manufactured according to ISO 9001
Low drive over height
Mechanical synchronisation
High quality solid construction
Two powerful hydraulic cylinders
Automatic safety lock-release system
Pneumatic release system
Acoustic warning signal
Foot protection

Technical data

Lifting capacity

3000 kg

Lifting height max.

1000 mm

Drive on height

110 mm

Lifting and lowering time (approx.)

20/20 seconds

Power supply

230 V / 400 V

Motor power

2,2 kW

Fuse protection

16 A

Weight

500 kg

Product dimensions

Vehicle type / Wheelbase

The illustrated vehicles are only an example to give you an understanding of different wheelbases and vehicle lengths. Bien entendu, une variété d'autres constructeurs et modèles de véhicules peuvent être concernés.If you have any questions, we are happy to advise you personally! +41 (0) 27 722 10 00 or info@garagepro.ch

*The vehicles shown were raised with the manufacturer's or alternative lifting points. Pay attention to our Twin Busch special adapters to ensure safe lifting, since some vehicles, especially in the transporter class, have no lifting points as with most cars. Always follow the relevant equipment regulations of the vehicle manufacturer. Always observe the usual safety precautions during lifting and lowering as well as the correct load distribution, maximum load and always read the manual of the lift.

Vehicle status: 2017, Subject to technical changes and errors. The Twin Busch GmbH provides this graphic exclusively for information purposes! The Twin Busch GmbH is under no circumstances liable for recommendations from this graphic.

Delivery contents

Lift incl. power unit
Rubber blocks (40 mm)
1A Quality built with CE certificate
English instruction manual
Examination book, 1A Quality built with CE certificate
Oil is not included – it can be ordered as an optional extra
Car not included

The lift is supplied in a transport frame.
