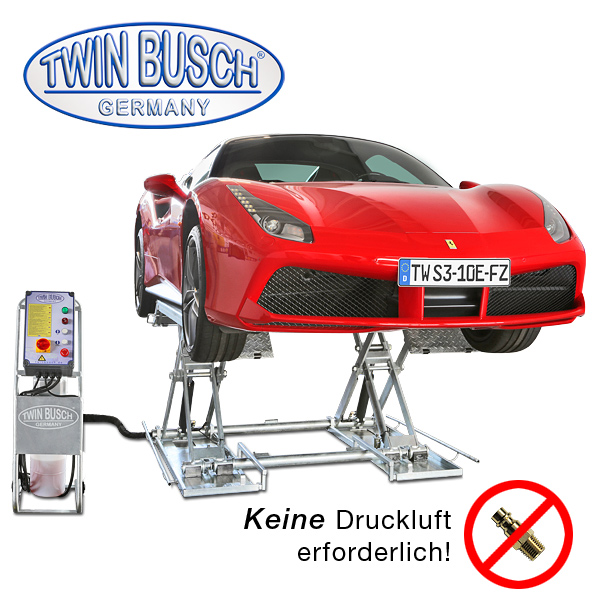

Double-scissor lift - 3 tonnes - lifting height 1m.
Ideal for tyre, paint and bodywork services. With electromagnetic activation, no compressed air supply is required.
The platform can be extended by locking the drive mechanism onto the side rails. A very handy mobility kit is available as an optional extra.
Product overview
Assembly
Features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- Low clearance height
- Mechanical synchronisation
- 1A Quality built
- Two powerful hydraulic cylinders
- Automatic safety lock-release system
- Pneumatic release system
- Acoustic warning signal
- Foot protection
Technical data
Lifting capacity
3000 kg
Maximum lifting height
1000 mm
Drive in height
110 mm
Lifting and lowering time (approx.)
20/20 seconds
Power supply
400 V
Engine power
2,2 kW
Fuse protection
16 A
Weight
500 kg
TWS310E-FZ - Overview
Product dimensions
Vehicle type / Wheelbase
The vehicles shown are merely examples to give you an idea of the different wheelbases and lengths of the vehicles.
This chart is provided for information purposes only; GIMP SARL accepts no liability in connection with it.
Contents of the delivery
- Lift with power unit
- Rubber blocks (40 mm)
- 1A Quality built with CE certificate
- User manual in English
- Examination book, 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.
Dimensions and weight
