Motorcycle lift - 500 kg

CHF 1,923.22 CHF 1,923.22 VAT Excluded
CHF 1,923.22 VAT Excluded

Add to cart
Add to wishlist
Contact Us
Documents
twinbusch_m02_handbuch.pdf

Internal Reference: TWM02-G

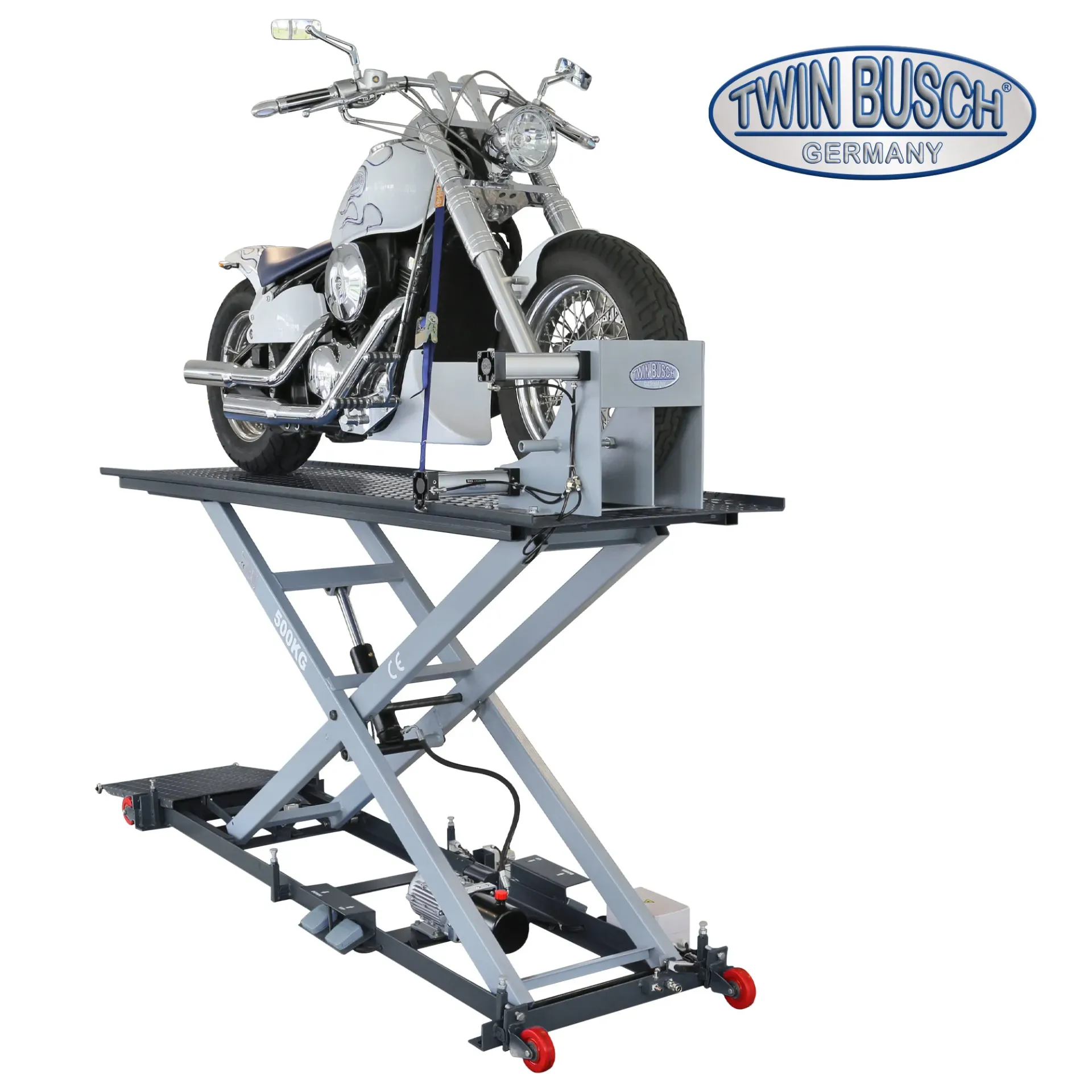

Motorcycle lift - 500 kg

With the TWM02 motorbike lift, you have an extremely robust hydraulic scissor lift for motorbikes (including large models such as choppers, tourers, etc.) and scooters weighing up to 500 kg. A powerful electric motor allows you to service your two-wheelers.

icôneProduct overview

icôneAssembly


icôneFeatures

  • 1A Quality built with CE certificate
  • Manufactured according to ISO 9001
  • Very sturdy build with a powerful electric motor
  • Non-slip, ribbed work surface
  • Integrated swivel plate for removing the rear wheel
  • Pedals on both sides for comfortably raising and lowering bikes
  • The ramp automatically moves away from the work area when it is raised.
  • Pneumatic control for clamping the front wheels
  • Four wheels with built-in brakes

icôneTechnical data

Lifting capacity
500 kg
Max. lift height
1200 mm
Lifting and lowering times (approx.).
30 seconds
Power supply
230 V
Length of the track
2480 mm
Track width
715 mm
Engine power
0,75 kW
Weight
285 kg
Colour
RAL 5015 (Blue), RAL 7000 (Grey)

icôneTWM02 - Overview

Work surface

Work surface

Non-slip, ribbed work surface for secure footing and stable support for the motorcycle.

 E-Motor

E-Motor

Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and industrial-grade electric motor.
Hydraulic cylinder

Hydraulic cylinder

The powerful hydraulic cylinder ensures powerful and reliable lifting and lowering of the motorcycle lift.

 Release

Release

Automatic release of safety catches – compressed air at 6–8 bar required!
Front wheel clamp

Front wheel clamp

The front wheel lock holds the motorcycle securely in position when lifting and reliably prevents it from tipping over during work.

 Control

Control

The front wheel fixation of the motorcycle lift can be controlled pneumatically, enabling simple and precise securing of the motorcycle.
Plate

Plate

Fold-down plate integrated into the road surface allows quick and easy removal of the rear wheel.

 Access ramp

Access ramp

The access ramp automatically moves out of the working area during the lifting process, ensuring greater safety and freedom of movement.
Foot pedals

Foot pedals

There are two foot pedals on both sides of the motorcycle lift, which enable the platform to be raised and lowered comfortably.

 Floor wheels

Floor wheels

The motorcycle lift is equipped with four sturdy floor wheels for easy mobility. It also features a locking mechanism to secure the platform safely and stably at its place of use.

icôneContents of the delivery

  • Ascenseur pour motos
  • User manual in English
  • Certificat CE
