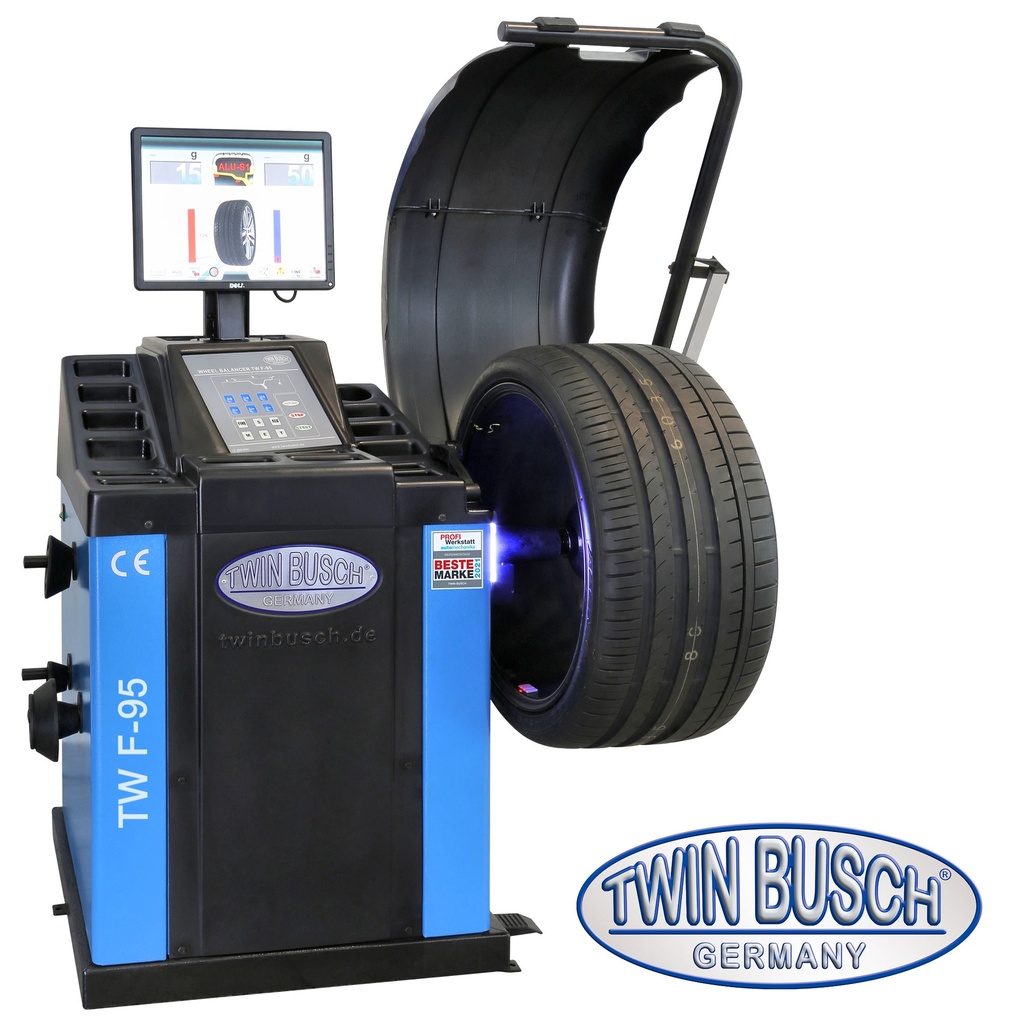

Automatic wheel balancer – TFT colour screen – TWF-95
Automatic wheel balancer for professional use with laser positioning system and LED light.
Equipped with TFT color monitor and 2 electro. Sensor arms for rim width and diameter measurement as well as an auto. program detection(Normal and Alu-S). New: The TW F-95 has a laser positioning system for precise positioning of adhesive weights at 6 o'clock position (also possible at 12 o'clock position without laser). LED light for better visibility. The TW F-95 has a 40 mm shaft and an extended wheel mount for wide rims, e.g. Porsche, SUV, etc. In addition, the machine is fitted with a foot brake for fixing the shaft during balancing. Help functions are displayed on the monitor. Measuring arm with optical / acoustic operator guidance.
Product presentation
Assembly
Calibration
Laser calibration
All of our machines have been professionally calibrated before leaving the factory ! A new calibration is not necessary unless the shown values are obviously incorrect.
Features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- Laser positioning system at 6 o'clock position
- LED light for better visibility
- Measuring arm determins the width of the wheel
- Menu Languages: German, English, Spanish, French, Portugese, Dutch, Ilalian, Swedish, Hungarian and Polish
- Splitting programme enables the precise placement of hidden weights, behind the spokes
- Electronic sensor arm
- Large TFT-Colour monitor
- Measured values are shown when the wheel brakes
- Static and dynamic balancing
- Several available programs Normal / Static / Alu1, Alu2, Alu3 Motorcycle etc.
- Integrated calibration and self-diagnostic program
- Optional: motorcycle adapter, adapter for vehicles without center hole
Technical data
TWF-95 - Overview
Product dimensions
Contents of the delivery
- Wheel balancer
- Centering cones (4 items), Gauge, Weight pliers
- Quick release nut, pressure cup, rubber lip
- Calibration weight
- Product video
- Assembly video
- Calibration video
- Operating and maintenance instructions
- 1A Quality built with CE certificate
Shipping dimensions and weight
Shipping video
