TW440P-230-FZ: 4 post lift - Park lift - Hot-dip galvanised - 4.0 t
Product description

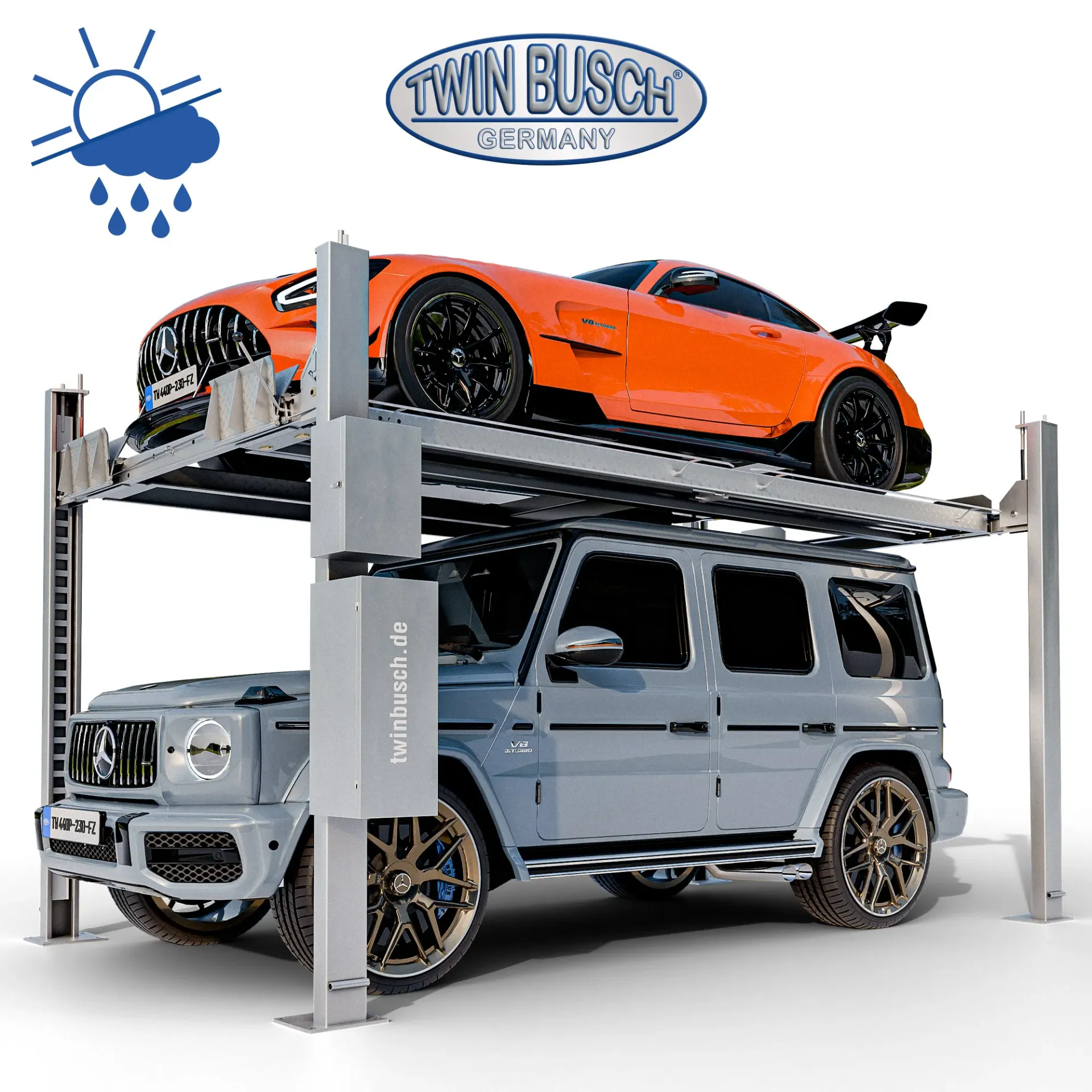

The practical 4-post parking lift is the ideal solution for limited parking space and impresses with its versatile range of applications. Specifically designed for outdoor use, it features a robust, fully galvanised construction that provides reliable protection against corrosion and ensures a long service life.
With a lifting height of 2,150 mm, the parking lift provides sufficient clearance to park taller vehicles such as SUVs or vans underneath the raised platform, making the most efficient use of the available parking space.
With a lifting capacity of 4,000 kg, the parking lift is suitable for both space-saving parking and various service applications.
Integrated front and rear wheel stops ensure safe vehicle positioning. The hydraulic cylinder located beneath the runways provides powerful and smooth lifting and lowering of the platform. Mechanical safety locks combined with manual lock release ensure reliable and safe operation.
For even greater flexibility, an optional mobility kit is available, allowing the lift to be moved easily. In addition, the lift can be equipped with an optional rolling jack, significantly expanding its range of applications.
Features
- Top built quality with CE-certificate
- Manufactured according to ISO 9001
- Specifically designed for outdoor use
- Robust fully galvanised construction for corrosion protection
- 4,000 kg lifting capacity
- Hydraulic overfl ow valve
- 1 hydraulic cylinder mounted under runway cares for a strong lifting and lowering
- Mechanical security locking system
- Manual safety-lock release
- Slackline and cable protection
- Platform with roll on ramp and roll off protection
- Roll on-off protection
- Foot protection
- Acoustic warning signal
Technical data
Lifting capacity
4000 kg
Max lifting height
2150 mm
Runway length
4200 mm
Min height
123 mm
Lifting time
60 sec.
Power supply
230 V
Motor power
2,2 kW
Fuse protection
16 A / type C
Weight
850 kg
Product dimensions
Delivery contents
- Four Post Lift incl. motor unit
- CE-certificate
- Drip tray optional
- Mobile kit optional
- Oil not included – can be optionally ordered
- Car not included
