The new Heavy-Line TW280 lift – Anthracite

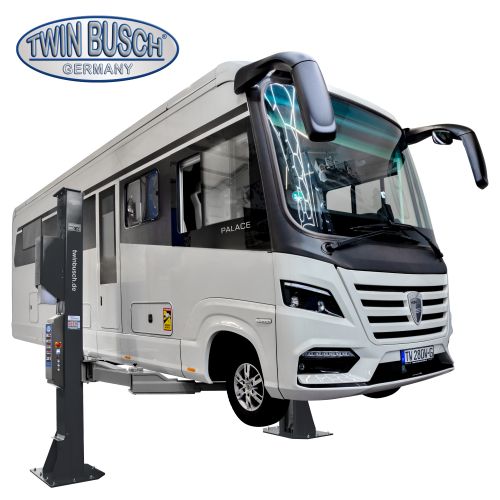

The new Heavy-Line TW280 lift. With 8.0 t lifting capacity and symmetrically telescopic double-jointed support arms in M-support arm design the TW280 is our most powerful powerhouse in the 2-post range. Thanks to its extremely large adjustment range, everything from small cars to vans, even with a long wheelbase (e.g. MB Sprinter, motorhomes, special vehicles) can be lifted with ease. With two operating units (one per column) and two independent hydraulic units, the TW280W offers a particularly high level of operating convenience and can be easily adapted to the requirements of the workshop in terms of installation width (4132 mm or less). As an outstanding highlight, the individual lifting columns communicate with each other completely wirelessly via a secure radio link. They are conveniently controlled via operating units on both columns with monitoring and display of the lifting height in real time. There is also a practical plug-in adapter holder on the outside of each column, which provides space for the safe storage of two height adapters.
 Product presentation |
Assembly |
Calibration |
|---|---|---|
Features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- Protective cover in front of the pillars
- Lifting turntables with double thread and anti-rotation protection
- Automatic electromagnetic release of the safety catches
- Automatic support arm locking system
- 2 hydraulic cylinders for powerful lifting and lowering
- Synchronisation control via a secure radio connection
- High quality special profile supporting columns
- High-quality powder coating
- Symmetrical telescopic double-jointed support arms (M support arms)
- Emergency lowering in the event of a power cut
- Practical height adapter holders (one holder on each side of the column) for two height adapters each
- New: motor cover included (Stylish design, dust protection and noise reduction)
Technical data
Note: This product requires an increased mains voltage for its proper operation and is not equipped with a two-pin mains plug. The installation of non-plug-in units must be carried out by the respective mains operator or by a registered specialist company who will also assist you in obtaining any necessary approval from the respective mains operator for the installation of the unit.
TW280W-400-G |
Présentation générale |
||
|---|---|---|---|
Extremely large adjustment rangeThanks to the extremely large adjustment range of the support arms, everything from small cars (e.g. Smart) to vans, even those with a long wheelbase, can be lifted without any problems. |
Control unitThe convenient control unit (protection class IP 54, 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic safety device for safe working. Two control units (one per column) ensure a particularly high level of operating comfort. |
||
E-MotorTwo powerful hydraulic units with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover. |
WifiOne outstanding highlight is the wireless communication between the individual lifting columns via a secure radio connection. The system is conveniently controlled via operating units on both columns, which monitor and display the lifting height in real time. |
||
2-stage turntableThe post lift has a 2-stage height-adjustable turntable with double thread and anti-twist protection and a swivelling height of only 120 mm. |
Arm-locking systemThe support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety. |
||
M-Supporting armsTelescopic double-jointed arms (M-arms) allow the doors to open particularly wide thanks to their asymmetrical design. |
Door stop protectionThe door stop protects your car doors by preventing them from slamming shut unintentionally. |
||
Post protection coverThe post protection cover protects the hydraulic cylinder from flying sparks during welding and flexing work. It offers a high level of safety and impresses with its attractive appearance. |
Extension adaptersOn each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each. |
Vehicle type / Wheelbase
The vehicles shown are for illustrative purposes only to give you an understanding of different wheelbases and vehicle lengths. Of course, a variety of other vehicle manufacturers and models can be lifted.
If you have any questions, we will be happy to advise you personally! +41 (0) 27 722 10 00 or info@garagepro.ch
*The vehicles shown were raised with the manufacturer's or alternative lifting points. Pay attention to our Twin Busch special adapters to ensure safe lifting, since some vehicles, especially in the transporter class, have no lifting points as with most cars. Always follow the relevant equipment regulations of the vehicle manufacturer. Always observe the usual safety precautions during lifting and lowering as well as the correct load distribution, maximum load and always read the manual of the lift.
Vehicle status: 2023, Subject to technical changes and errors. GIMP Sàrl provides this graphic exclusively for information purposes! GIMP Sàrl is under no circumstances liable for recommendations from this graphic.
Contents of the delivery
- Lift with power unit and motor cover
- Transporter adapters (4 pieces)
- Bracket for extension adapter
- Heavy Duty Anchor bolts (18 pcs.)
- Door stop protection
- German instruction manual
- 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- Important Notice! The customer must provide a forklift at delivery.
- Please note that access for a lorry of 18 t to 40 t must be possible for deliveries.
Specifications
| Vehicle type | Light vehicles, SUV, vans, motorhomes, trucks (max 8 t) |
| Lifting capacity (tons) | 8 |
| Base type | baseless (clear floor) |
| Arm type | articulated |
| Power supply | 380 V |
