2-post-lift 6.0 t - clear floor - HEAVY LINE

380 Volt
CHF 4,393.15 CHF 4,393.15 VAT Excluded
CHF 4,393.15 VAT Excluded

Add to cart
Add to wishlist
Contact Us
Documents
TW260B4.5-400-ENGLISH twinbusch_260-b4-5_handbuch.pdf

Internal Reference: TW260B4.5-400

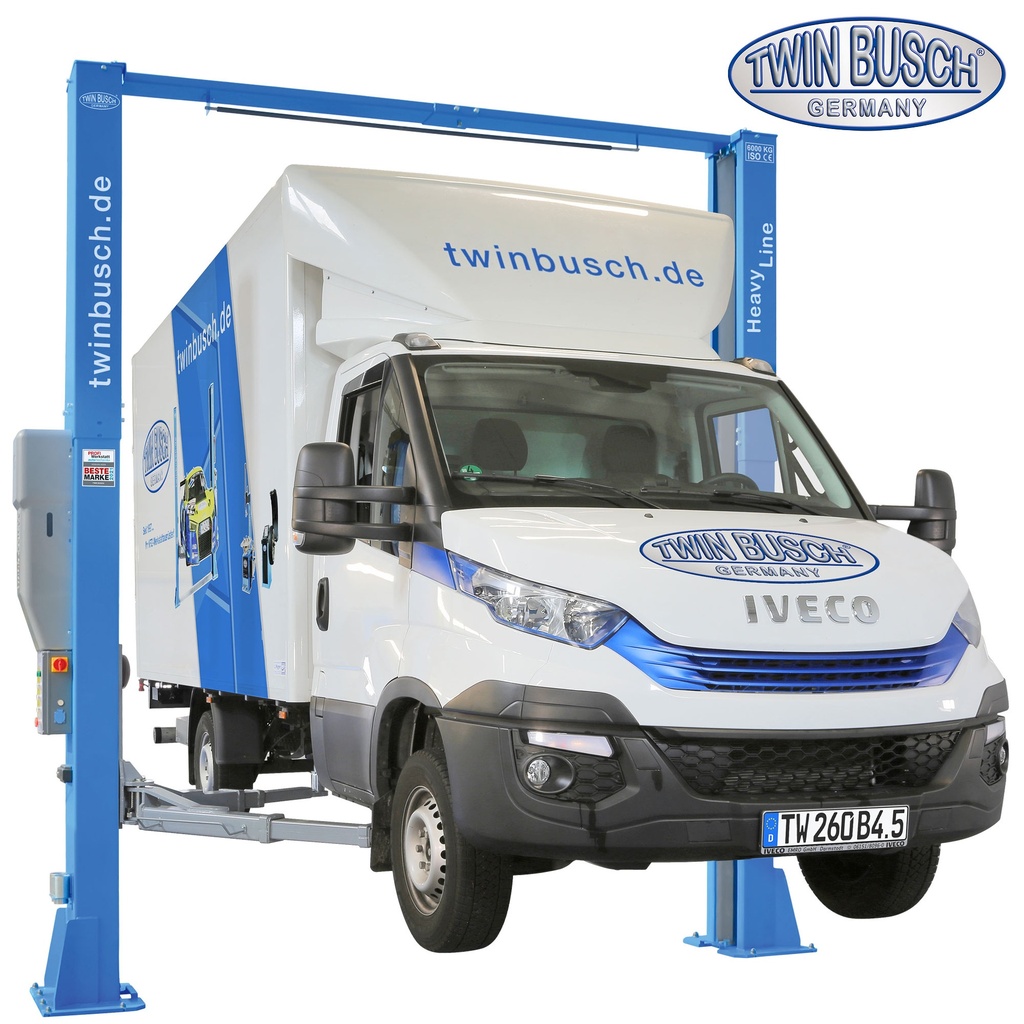

2-post lift 6.0 tonnes - without flange - HEAVY LINE
This professional lift has a 6.0t lifting capacity and 3-stage telescopic lift arms allowing you to lift anything from a small car, transporter or motorhome with a long wheelbase. Automatic safety release system, height-adjustable turntables with anti-twist protection and conveyor adapters, clear floor, limit switch. 2 hydraulic cylinders for powerful lifting and lowering. Suitable for cars and transporters. With a height of 4450 mm, you can fully lift vehicles such as a Fiat Ducato H2 (raised roof) or Mercedes Sprinter (regular roof). Each pole has a practical support bracket for extension adapters.
New: Anti-lift-up button, allows you to lower the lift without having to raise it before lowering it. A 230 V socket is located in the control box.

icon Product presentation

iconAssembly

iconFeatures

  • 1A Quality built with CE certificate
  • Manufactured according to ISO 9001
  • New: Anti-lift-up button
  • New: 230 V socket
  • 2 Hydraulic cylinder for less abrasion
  • Turning plates with twist protection
  • Automatic safety lock-release system
  • Column cover
  • Special rolled columns
  • 2 Hydraulic cylinders for powerful lifting and lowering
  • Automatic arm locking system
  • Synchronisation using steel cables
  • 3 stages telescopic lifting arm
  • High-quality powder coating
  • Height : 4450 mm
  • Practical storage bracket for two extension adapters
  • New: motor cover included (Stylish design, dust protection and noise reduction)

iconTechnical data

Lifting capacity
6000 kg
Max lifting height
1900 mm / Ad 2080
Low lifting point
112 mm
Lifting and lowering time (approx.)
45/30 seconds
Power supply
400 V / 3 phases
Motor power
2,2 kW
Fuse protection
16 A / type C
Weight
1120 kg
Lifting height (Lifting pad screwed in)
1900 mm
Lifting height (Lifting pad screwed out)
1970 mm
Lifting height (Lifting pad+adapter screwed out)
2070 mm
Safety release
Automatic
Lifting pads
2 speed
Transporter adapters (4 pieces)
included
High-quality powder coating
Yes
Column chain guard
included
Motor cover
included
Air kit
optional
Anti-lift-up button
Yes
230 V socket placed in the control box
Yes
Floor plate
clear floor
Overall width / base plate (without motor)
4020 mm
Post height
4450 mm
Required concrete depth (Special solution)
250 mm
Lifting arm length / short
995-2080 mm
Lifting arm length / long
995-2080 mm
Width between columns
3342 mm
Maximum height
4380 mm
Maximum width
2988 mm
Colour
RAL 5015 (Blue), RAL 7000 (Grey)

iconTW260B4.5 - Overview

iconProduct dimensions

Product features

iconVehicle type / Wheelbase

Vehicle type / Wheelbase

This graphic is for information purposes only!

iconContents of the delivery

  • Lift with power unit and motor cover
  • Transporter adapters (4 pieces)
  • Bracket for extension adapter
  • 12 x heavy duty M16 anchor bolt (16 mm drill bit required)
  • Door stop protection
  • German instruction manual
  • 1A Quality built with CE certificate
  • Oil is not included – it can be ordered as an optional extra
  • Car not included
  • The lift is supplied in a transport frame.

iconShipping dimensions and weight

iconVideo about the expedition

Product dimensions
