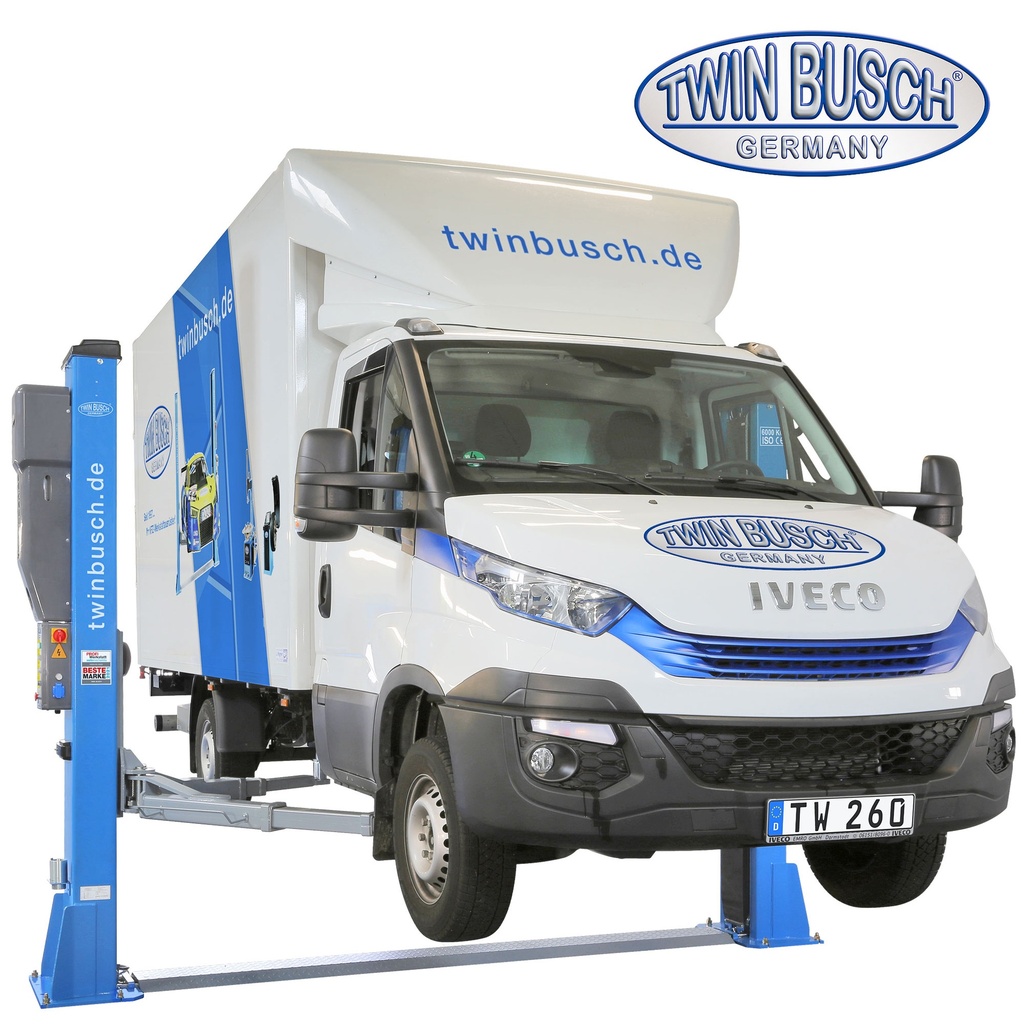

2-post lift 6.0 tonnes - HEAVY LINE
With a lifting capacity of 6.0 t and 3 times the telescopic arms, the lift can be used to safely lift a wide range of vehicles, from small passenger cars (e.g. smart) to light vans (e.g. MB Sprinter, camper van). Each post has a practical holder for extension adapters. New: Anti-lift-up button, allows you to lower the lift without it having to rise before sinking. A 230 V socket is located in the control box.
Product presentation
Assembly
Features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- New: Anti-lift-up button
- New: 230 V socket
- Column cover
- Electrical release
- Emergency lowering in the event of a power cut
- Special rolled columns
- 2 hydraulic cylinders for strong lifting and lowering
- Automatic arm locking system
- Synchronisation using steel cables
- 3 stage telescopic arms
- Practical storage bracket for two extension adapters
- New: motor cover included (Stylish design, dust protection and noise reduction)
Technical data
TW250B4.5-400 - Overview |
||
|---|---|---|
Control unitThe convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working. |
E-motorPowerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover. |
Arm-locking systemThe support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety. |
Supporting armsFlat, 3-way telescopic and bevelled support arms for pushchairs. The asymmetrical design of the support arms allows the doors to be opened particularly wide. |
Door stop protectionThe door stop protects your car doors by preventing them from slamming shut unintentionally. |
Post protection coverThe post protection cover protects the hydraulic cylinder from flying sparks during welding and flexing work. It offers a high level of safety and impresses with its attractive appearance. |
Flat drive-over plateThe flat drive-over plate of the post lift is only 40 mm high. |
2 stage turntableThe post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm. |
New: Anti-lift-up buttonThe anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first. |
230 V socketA handy 230 V socket is located directly on the control box for added convenience. |
Extension adaptersOn each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each. |
Accessories TW236PE-AIRThe optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection. |
Accessories TWLED-2The LED illumination TWLED-2 (optionally available) consists of 4 flexible and magnetic LED light bands / LED strips, a transformer, power and connection cables, a remote control and the necessary assembly and installation material. These LED lights provide a pleasant light in any colour and brightness. |
Accessories TW260RADThe optionally available TW260RAD wheel clamp set of 4 is suitable for vehicles with a wheelbase of max. 3000 mm. It offers optimum accessibility, e.g. when changing the battery. |
Product dimensions
Vehicle type / Wheelbase
This graphic is for information purposes only!
Contents of the delivery
- Two-post lift, including power unit and motor cover
- Height adapter (4 pcs.)
- Bracket for extension adapter
- 12 x heavy duty M16 anchor bolt (16 mm drill bit required)
- Door stop protection
- Operating and maintenance instructions
- 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.
