TW250-400
2 post lifts - electromagnetic - HEAVY LINE
Pont élévateur 2 postes 5 t - HEAVY LINE - automatique

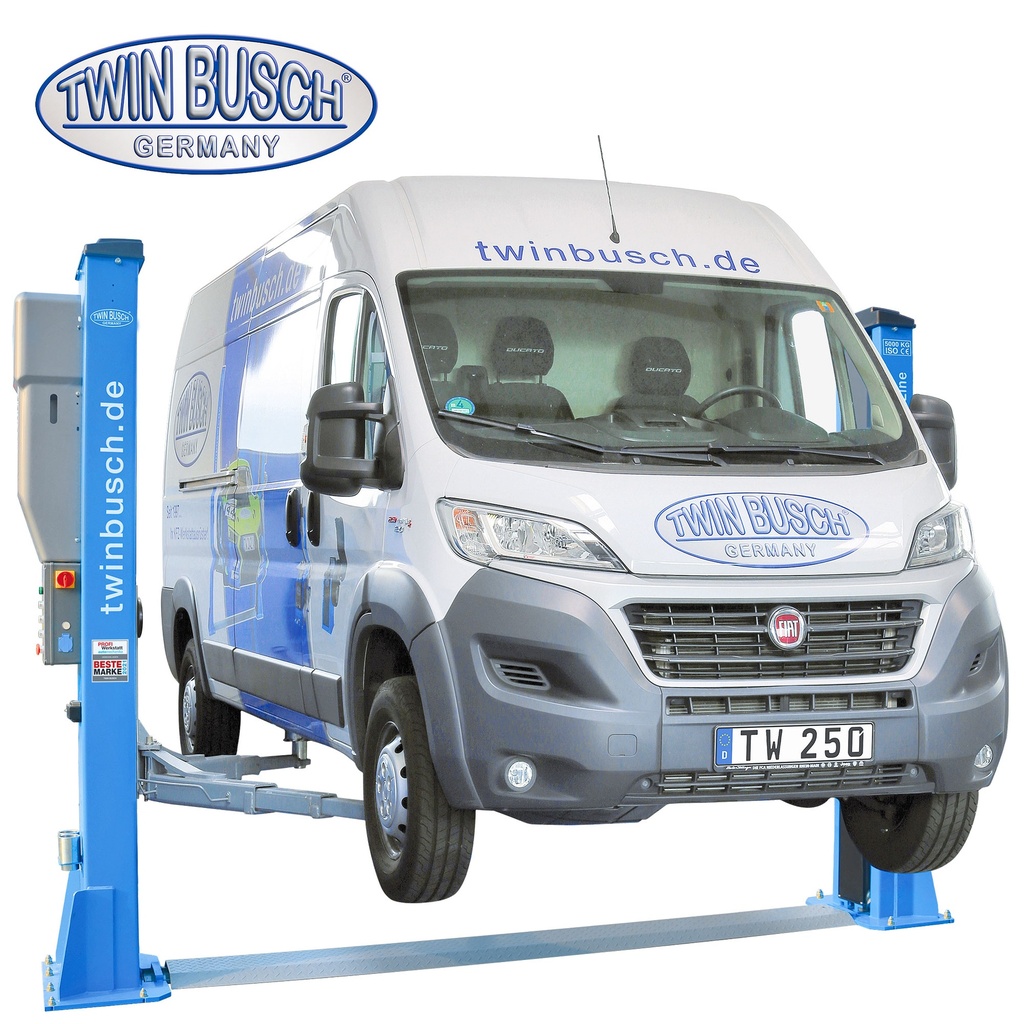

Avec une capacité de levage de 5,0 t et des bras télescopiques 3 fois supérieurs, le pont élévateur permet de soulever en toute sécurité une large gamme de véhicules, des petites voitures particulières (p.ex. smart) aux fourgons légers (p.ex. MB Sprinter, camping-car).
Sur chaque montant, vous disposez d'un support pratique pour les adaptateurs d'extension.
Nouveau :
bouton anti-soulèvement , vous permet d'abaisser le pont élévateur sans qu'il doive se lever avant de l'enfoncer. Une prise 230 V est placée dans le boîtier de commande.
Product presentation
Assembly
Features
- Top built quality with CE-certificate
- Fabriqué selon la norme ISO 9001
- New: Anti-Lift-Up-button
- New: 230 V socket
- Column cover
- Electrical release
- Emergency lowering valve by power blackout
- Special rolled section column
- 2 hydraulic cylinders for strong lifting and lowering
- Automatic arm locking device
- Synchronisation through steel ropes
- 3 stage telescopic arms
- Practical storage bracket for two extension adapters
- NEW: Motor-Cover included
(Stylish design, dust protection and noise reduction)
Technical Data
Lifting capacity
5000 kg
Max lifting height
1900 mm/Ad 2080
Low lifting point
112 mm
Lifting, lowering time (approx.)
45/30 secondes
Power supply
400V / 3 Phase
Motor power
2,2 kW
Fuse protection
16 A / type C
Weight
970 kg
Lifting height (Lifting pad screwed out)
1900 mm
Lifting height (Lifting pad screwed out)
1970 mm
Lifting height (Lifting pad+adapter screwed out)
2070 mm
Safety release
Automatic
Lifting pads
2-speed
Transporter adapters
compris
Powder coated
Yes
Column chain guard
compris
Motor-Cover
compris
Kit d'air
optional
Anti-Lift-Up-Button
Yes
230 V socket placed in the control box
Yes
Floor plate
Yes (40 mm)
Overall width / bottom plate (without motor)
4020 mm
Post hight
2824 mm
Required concrete depth (Special solution)
250 mm
Lifting arm length / short
890-1800 mm
Lifting arm length / long
890-1800 mm
Width between posts
3342 mm
Max. height
-
Max. width
2988 mm
TW250 - Overview
Dimensions du produit
Vehicle type / Wheelbase
Ce graphique à disposition exclusivement à des fins d'information !
Delivery contents
- Two-post lift incl. power unit and Motor-Cover
- Height adapter (4 pcs.)
- Bracket for extension adapter
- Extension bolts (12 pcs.)
- Door protection
- Operating and maintenance instructions
- CE-Certificate
- Oil not included – can be optionally ordered
- Car not included
Shipping information
Expédition en Suisse
- The lift will arrive in a transport frame.
Shipping dimensions and weight
