Pont Élévateur 2 Colonnes TW242PEB4.3-400-G - 4,2 Tonnes | Sans Embrase, Profi-Line, Couleur Anthracite

Détails
Téléchargements

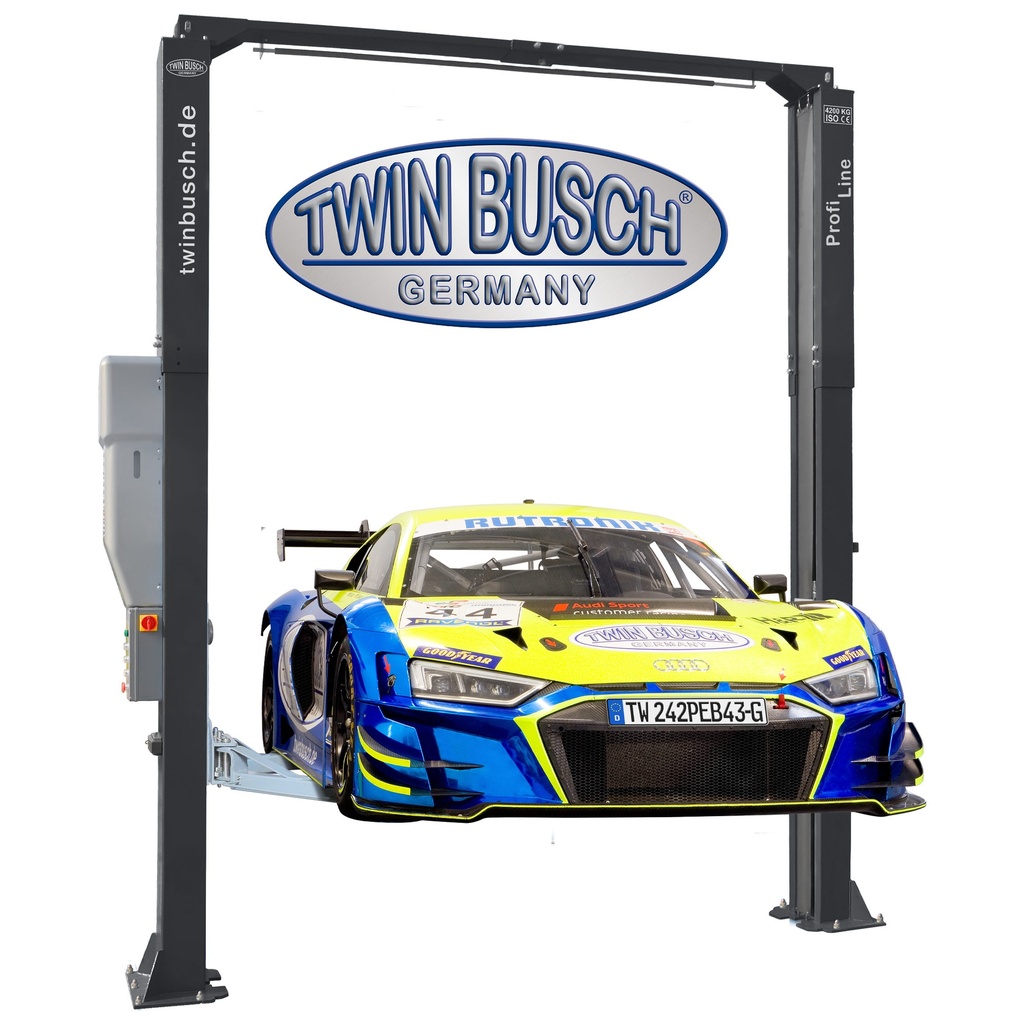

Elévateur à 2 colonnes - 4,2 tonnes - sans bride - Profi-Line.

L'élévateur Profi-Line est équipé d'un système de déverrouillage automatique de sécurité, de patins de levage réglables en hauteur, d'adaptateurs de transport, d'un passage au sol dégagé et d'un interrupteur de fin de course automatique, qui coupe l'alimentation électrique si un véhicule atteint la limite de hauteur.
Chaque poteau est doté d'un support de montage pratique pour les adaptateurs d'extension.
Nouveau :
Bouton anti-soulèvement, pour l'abaissement ciblé du lift sans levage automatique préalable. Et une prise pratique de 230 V directement sur le boîtier de commande.

Présentation du produit

Assemblage

Caractéristiques

Top built quality with CE-certificate
Fabriqué selon la norme ISO 9001
New: Anti-Lift-Up-button
New: 230 V socket
Couverture de colonne
Electrical release
Colonne à profilé spécial
2 cylindres hydrauliques pour un levage et un abaissement puissants
Dispositif de verrouillage automatique du bras
Synchronisation par câbles d'acier
Bras télescopiques à 2 étages
Lift height 4300 mm
Support de rangement pratique pour deux adaptateurs d'extension
NEW: Motor-Cover included
(Stylish design, dust protection and noise reduction)

Données techniques

Lifting capacity

4200 kg

Max lifting height

1900 mm/Ad2010

Low lifting point

96 mm

Lifting, lowering time (approx.)

45/30 secondes

Power supply

400V / 3 phases

Motor power

2,2 kW

Fuse protection

16 A / type C

Weight

700 kg

Lifting height (Lifting pad screwed out)

1900 mm

Hauteur de levage (coussin de levage dévissé)

1960 mm

Lifting height (Lifting pad+adapter screwed out)

2060 mm

Safety release

Automatique

Lifting pads

2 vitesses

Transporter adapters

compris

Powder coated

Oui

Column chain guard

compris

Couvercle du moteur

compris

Air-Kit

facultatif

Anti-Lift-Up-Button

Oui

230 V socket placed in the control box

Oui

Floor plate

soleil clair

Overall width / bottom plate (without motor)

3436 mm

Post hight

4300 mm

Required concrete depth (Special solution)

200 mm

Lifting arm length / short

740-1150 mm

Lifting arm length / long

890-1390 mm

Width between posts

2850 mm

Max. height

4135 mm

Max. width

2574 mm

Couleur

RAL 7016 (Anthracite), RAL 7000 (Gris)

TW242PEB4.3-400-G - Overview
Clear floor The post lift has an automatic limit switch as soon as a vehicle that is too high reaches the crossbeam. The post lift also enables barrier-free passage.	Control unit The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.	E-Motor Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.
Arm-locking system The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.	Supporting arms Flat, telescopic and slanted support arms for sports cars. The asymmetrical design of the support arms allows the doors to be opened particularly wide.	Door stop protection The door stop protects your car doors by preventing them from slamming shut unintentionally.
Post protection cover The lift is equipped with a manual release on only one side (single-lock).	2-stage turntable The post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm.	Anti-Lift-Up-Button The anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first.
230 V socket A handy 230 V socket is located directly on the control box for added convenience.	Extention adapters On each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each.	Accessories TW236PE-AIR The optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection.
Accessories TWLED-2B The TWLED-2B LED lighting (optionally available) consists of 4 flexible and magnetic LED strip lights / LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation materials. These LED lights provide pleasant light in any colour and brightness.	Accessories TW242-GPV The base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm.

TW242PEB4.3-400-G - Overview

Clear floor

The post lift has an automatic limit switch as soon as a vehicle that is too high reaches the crossbeam. The post lift also enables barrier-free passage.

Control unit

The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.

E-Motor

Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.

Arm-locking system

The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.

Supporting arms

Flat, telescopic and slanted support arms for sports cars. The asymmetrical design of the support arms allows the doors to be opened particularly wide.

Door stop protection

The door stop protects your car doors by preventing them from slamming shut unintentionally.

Post protection cover

The lift is equipped with a manual release on only one side (single-lock).

2-stage turntable

The post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm.

Anti-Lift-Up-Button

The anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first.

230 V socket

A handy 230 V socket is located directly on the control box for added convenience.

Extention adapters

On each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each.

Accessories TW236PE-AIR

The optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection.

Accessories TWLED-2B

The TWLED-2B LED lighting (optionally available) consists of 4 flexible and magnetic LED strip lights / LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation materials. These LED lights provide pleasant light in any colour and brightness.

Accessories TW242-GPV

The base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm.

Product dimensions

Vehicle type Wheelbase

Ce graphique à disposition exclusivement à des fins d'information !

Contenu de la livraison

Lift à deux colonnes, y compris unité de puissance et capot moteur
Adaptateur de hauteur
Support pour l'adaptateur d'extension
10 x boulons d'ancrage robustes M16 (mèche de 16 mm requise)
Protection de la porte
Instructions d'utilisation et d'entretien
Certificat CE
Oil not included – can be optionally ordered
Car not included

Informations sur l'expédition

Expédition en Suisse

Le lift est livré dans un cadre de transport.

Dimensions et poids pour l'expédition

Vidéo sur l'expédition
