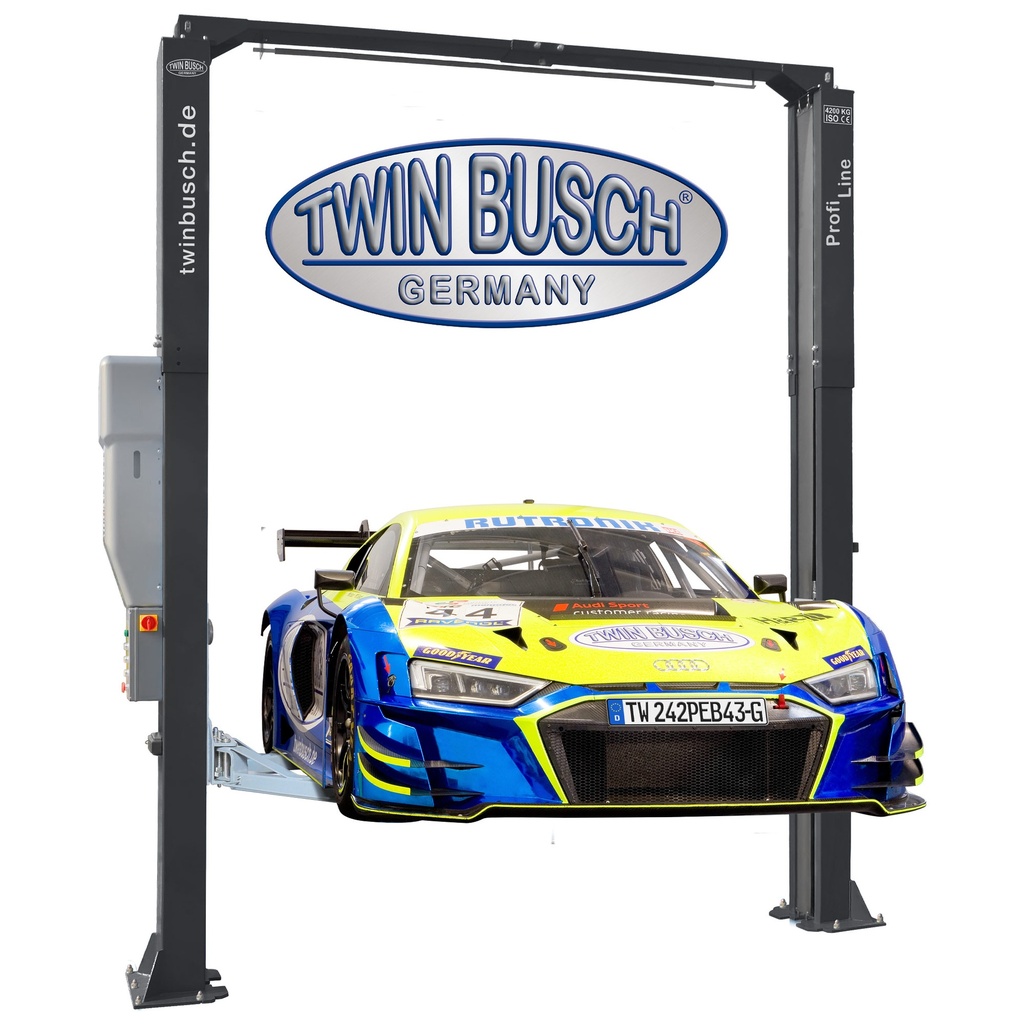

2-post car lift – 4.2 tonnes – without side panels – Profi-Line – anthracite colour

380 Volt
CHF 3,033.30 CHF 3,033.30 VAT Excluded
CHF 3,033.30 VAT Excluded

  • capacité de levage
  • Type d'embase
  • Type de bras
  • Type de véhicule
  • alimentation
Add to cart
Add to wishlist
Contact Us
Documents
TW242PEB4.3-400-G_de_handbuch TW242PEB4.3-400-G_en_manual TW242PEB4.3-400_datasheet.pdf TW242PEB4.3-400_fondation_plan.pdf TW242PEB4.3-400_fr_manuel.pdf

Internal Reference: TW242PEB4.3-400-G

2-post lift – 4.2 tonnes – without flange – Profi-Line

The Profi-Line lift is fitted with an automatic safety release system, height-adjustable lifting pads, transport adaptors, a clear ground clearance and an automatic limit switch, which cuts off the power supply if a vehicle reaches the height limit.
Each post is fitted with a practical mounting bracket for the extension adaptors.
New:
Anti-lift button, for controlled lowering of the lift without prior automatic lifting. And a handy 230 V socket directly on the control box.

icon Product overview

iconAssembly

iconFeatures

  • 1A Quality built with CE certificate
  • Manufactured according to ISO 9001
  • New: Anti-lift-up button
  • New: 230 V socket
  • Column cover
  • Electrical release
  • Column with a special profile
  • 2 hydraulic cylinders for powerful lifting and lowering
  • Automatic arm locking system
  • Synchronisation using steel cables
  • 2-stage telescopic arms
  • Lift height 4300 mm
  • A handy storage holder for two extension adaptors
  • New: motor cover included (Stylish design, dust protection and noise reduction)

iconTechnical data

Lifting capacity
4200 kg
Max lifting height
1900 mm / Ad 2010
Low lifting point
96 mm
Lifting and lowering time (approx.)
45/30 seconds
Power supply
400 V / 3 phases
Motor power
2,2 kW
Fuse protection
16 A / type C
Weight
700 kg
Lifting height (Lifting pad screwed out)
1900 mm
Lifting height (with lifting pad unscrewed)
1960 mm
Lifting height (Lifting pad+adapter screwed out)
2060 mm
Safety release
Automatic
Lifting pads
2 speed
Transporter adapters (4 pieces)
included
High-quality powder coating
Yes
Column chain guard
included
Engine cover
included
Air kit
facultatif
Anti-lift-up button
Yes
230 V socket placed in the control box
Yes
Floor plate
clear floor
Overall width / base plate (without motor)
3436 mm
Post height
4300 mm
Required concrete depth (Special solution)
200 mm
Lifting arm length / short
740-1150 mm
Lifting arm length / long
890-1390 mm
Width between columns
2850 mm
Maximum height
4135 mm
Maximum width
2574 mm
Colour
 RAL 7016 (Anthracite), RAL 7000 (Gray)

TW242PEB4.3-400-G - Overview
Arm-locking system

Clear floor

The post lift has an automatic limit switch as soon as a vehicle that is too high reaches the crossbeam. The post lift also enables barrier-free passage.

 Control unit

Control unit

The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.

 E-motor

E-motor

Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.
Arm-locking system

Arm-locking system

The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.

 Supporting arms

Supporting arms

Flat, 3-way telescopic and bevelled support arms for pushchairs. The asymmetrical design of the support arms allows the doors to be opened particularly wide.

 Door stop protection

Door stop protection

The door stop protects your car doors by preventing them from slamming shut unintentionally.
Post protection cover

Post protection cover

The lift is equipped with a manual release on only one side (single-lock).

 2 stage turntable

2 stage turntable

The post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm.

 <strong>New: Anti-lift-up button</strong>

New: Anti-lift-up button

The anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first.
230 V socket

230 V socket

A handy 230 V socket is located directly on the control box for added convenience.

 Extention adapters

Extention adapters

On each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each.

 Accessories TW236PE-AIR

Accessories TW236PE-AIR

The optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection.
Accessories TWLED-2B

Accessories TWLED-2B

The TWLED-2B LED lighting (optionally available) consists of 4 flexible and magnetic LED strip lights / LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation materials. These LED lights provide pleasant light in any colour and brightness.

 Accessories TW242-GPV

Accessories TW242-GPV

The base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm.

iconProduct dimensions

Product dimensions

iconVehicle type / Wheelbase

Vehicle type / Wheelbase

This chart is provided for information purposes only; GIMP SARL accepts no liability in connection with it.

iconContents of the delivery

  • Two-post lift, including motor unit and motor cover
  • Height adapter
  • Support for extension adapter
  • 10 x heavy-duty M16 anchor bolts (16 mm drill bit required)
  • Rubber door protectors
  • Instructions for use and care
  • 1A Quality built with CE certificate
  • Oil is not included – it can be ordered as an optional extra
  • Car not included

  • The lift is supplied in a transport frame.

iconDimensions and weight

iconVideo about the expedition

Product dimensions

Specifications

Type de véhicule Véhicules légers, SUV
capacité de levage 4.2
Type d'embase au plafond
Type de bras droits
alimentation 380 V
