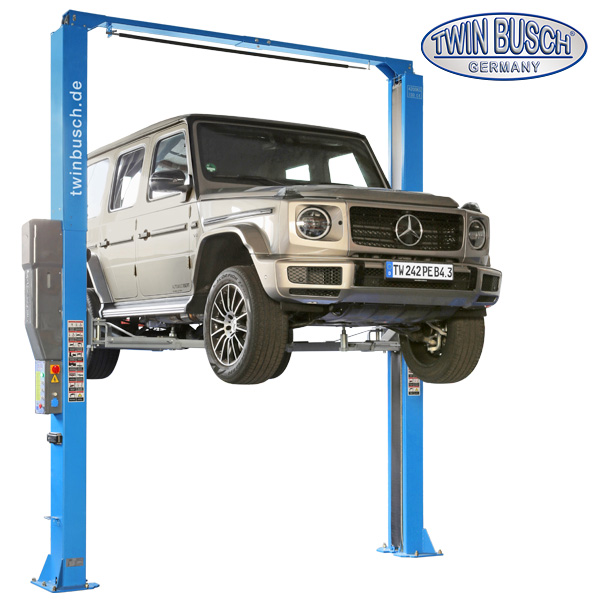

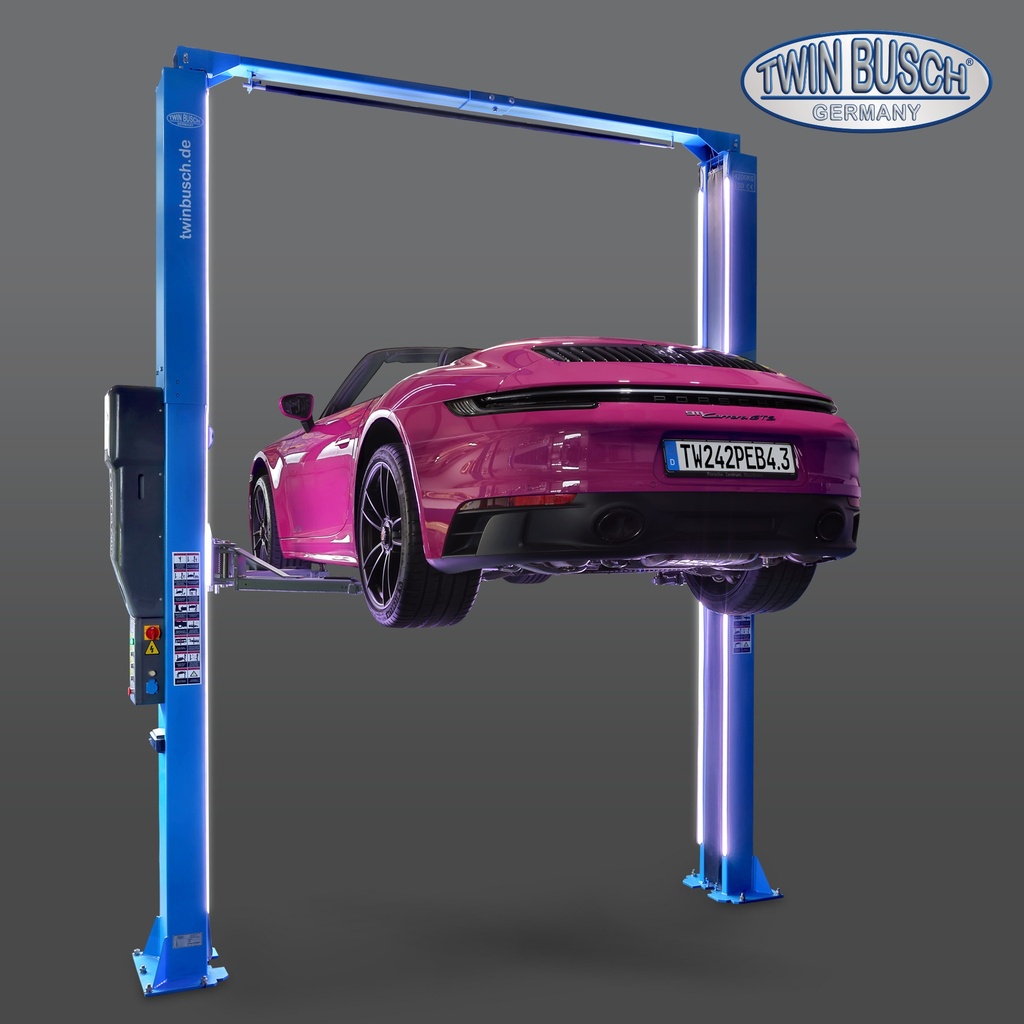

2-post lift – 4.2 tonnes – without flange – Profi-Line
2-post lift - 4.2 tonnes - without flange - Profi-Line.
The Profi-Line lift is equipped with an automatic safety unlocking system, height-adjustable lifting shoes, transport adapters, a clear floor path and an automatic limit switch, which cuts the power supply if a vehicle reaches the height limit. Each post has a practical mounting bracket for extension adapters.
New: Anti-Lift-Up-button , for targeted lowering of the lift without prior automatic lifting. And a practical 230 V socket directly on the control box.
Product presentation
Assembly
Product features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- New: Anti-lift-up button
- New: 230 V socket
- Column cover
- Electrical release
- Special rolled columns
- 2 hydraulic cylinders for strong lifting and lowering
- Automatic arm locking system
- Synchronisation using steel cables
- 2 stage telescopic arms
- Lift height 4300 mm
- Practical storage bracket for two extension adapters
- New: motor cover included (Stylish design, dust protection and noise reduction)
Technical data
TW242PEB4.3-400 - Overview |
||
|---|---|---|

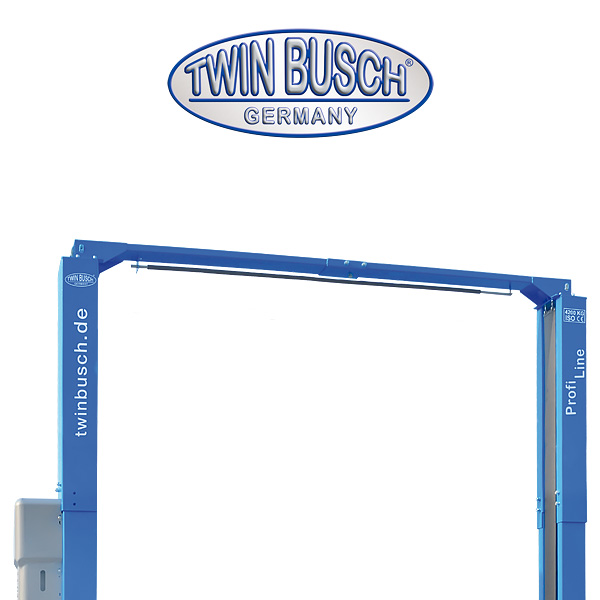

Clear floorThe post lift has an automatic limit switch as soon as a vehicle that is too high reaches the crossbeam. The post lift also enables barrier-free passage. |

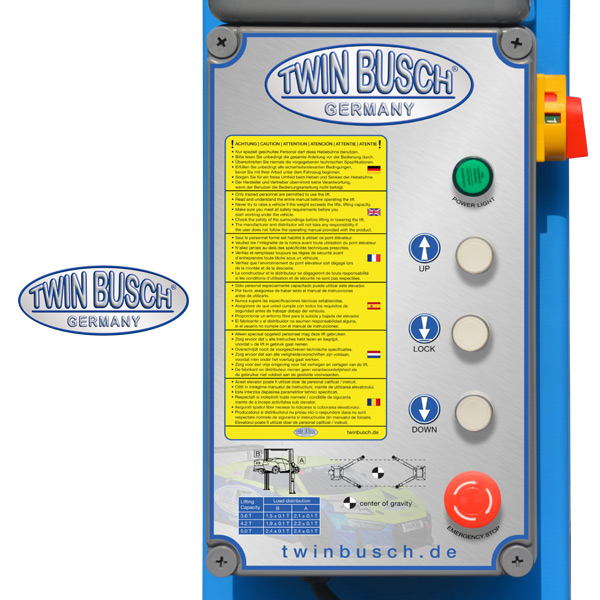

Control unitThe convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working. |

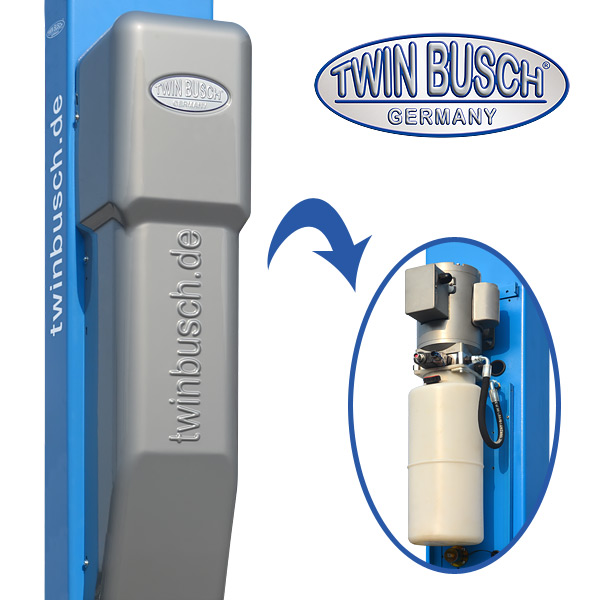

E-motorPowerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover. |

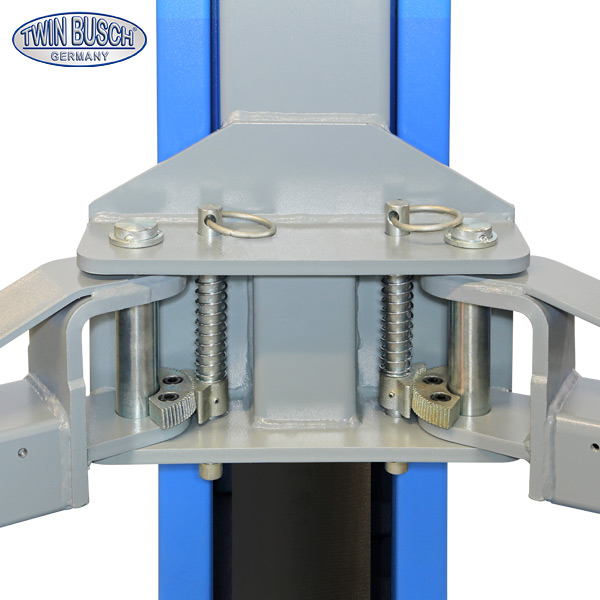

Arm-locking systemThe support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety. |

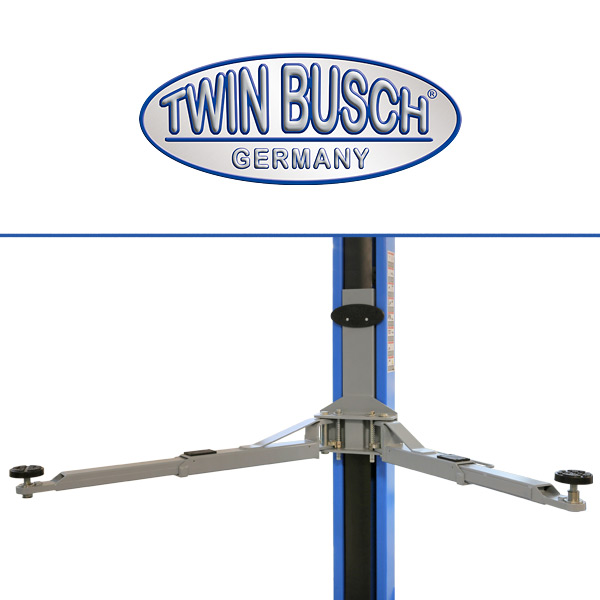

Supporting armsFlat, 3-way telescopic and bevelled support arms for pushchairs. The asymmetrical design of the support arms allows the doors to be opened particularly wide. |
Door stop protectionThe door stop protects your car doors by preventing them from slamming shut unintentionally. |
Post protection coverThe lift is equipped with a manual release on only one side (single-lock). |

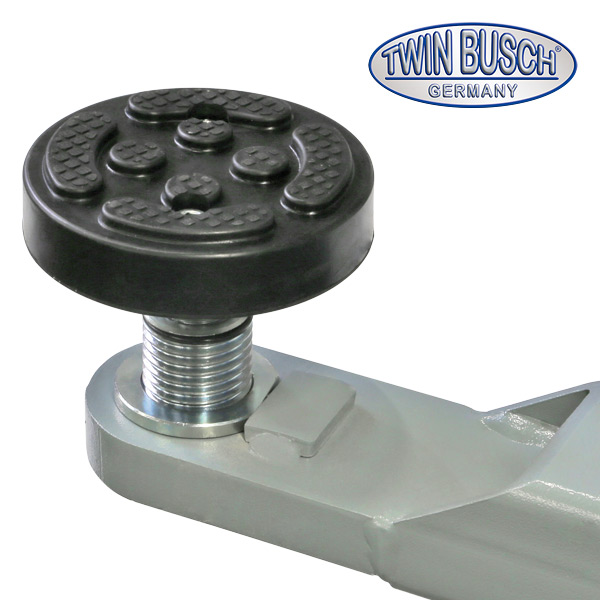

2 stage turntableThe post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm. |

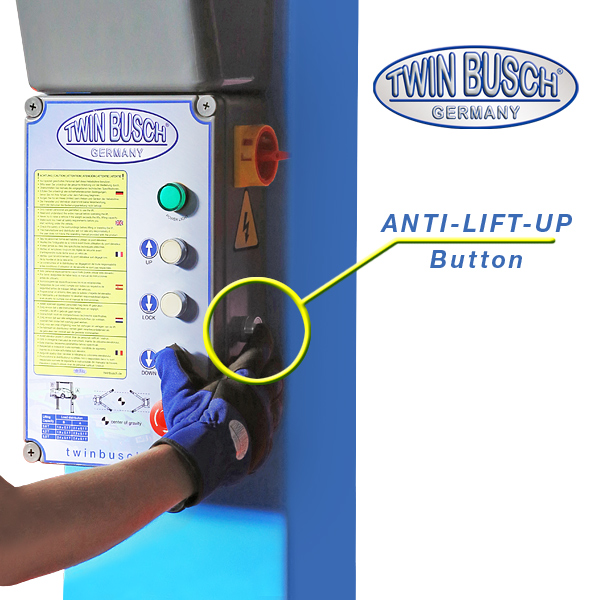

New: Anti-lift-up buttonThe anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first. |

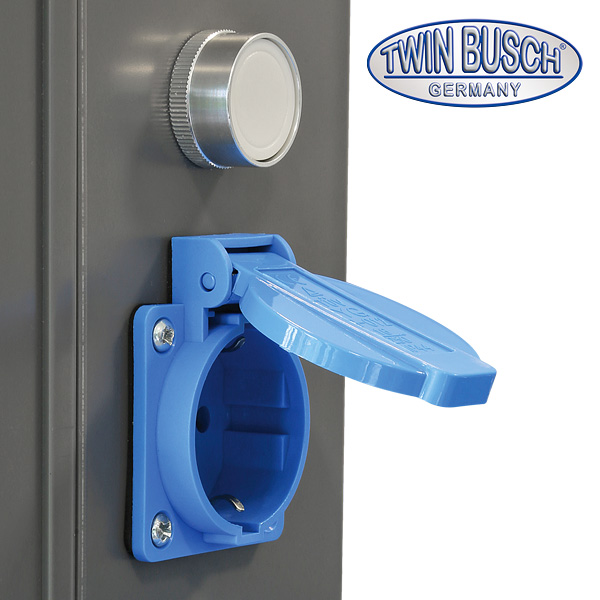

230 V socketA handy 230 V socket is located directly on the control box for added convenience. |

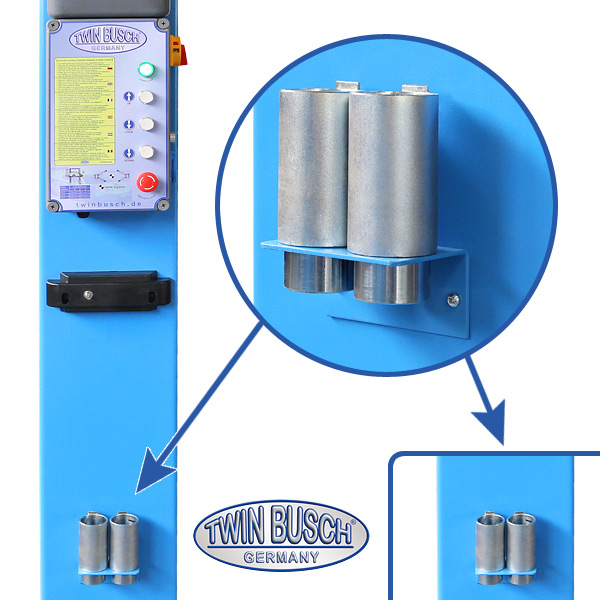

Extention adaptersOn each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each. |

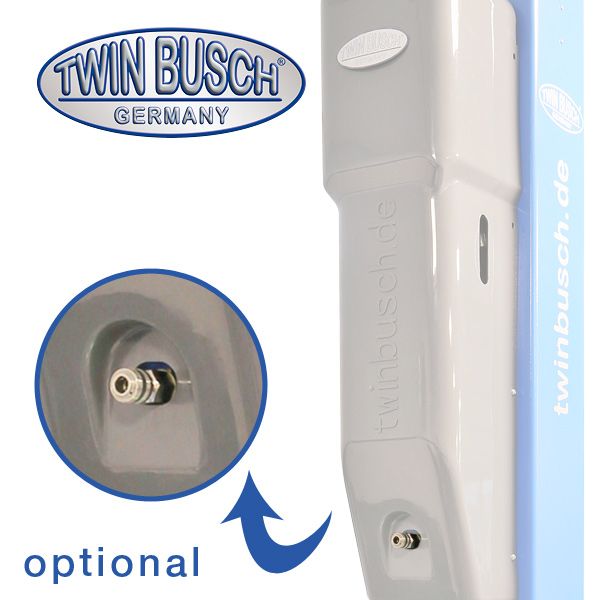

Accessories TW236PE-AIRThe optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection. |
Accessories TWLED-2BThe TWLED-2B LED lighting (optionally available) consists of 4 flexible and magnetic LED strip lights / LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation materials. These LED lights provide pleasant light in any colour and brightness. |
Accessories TW242-GPVThe base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm. |

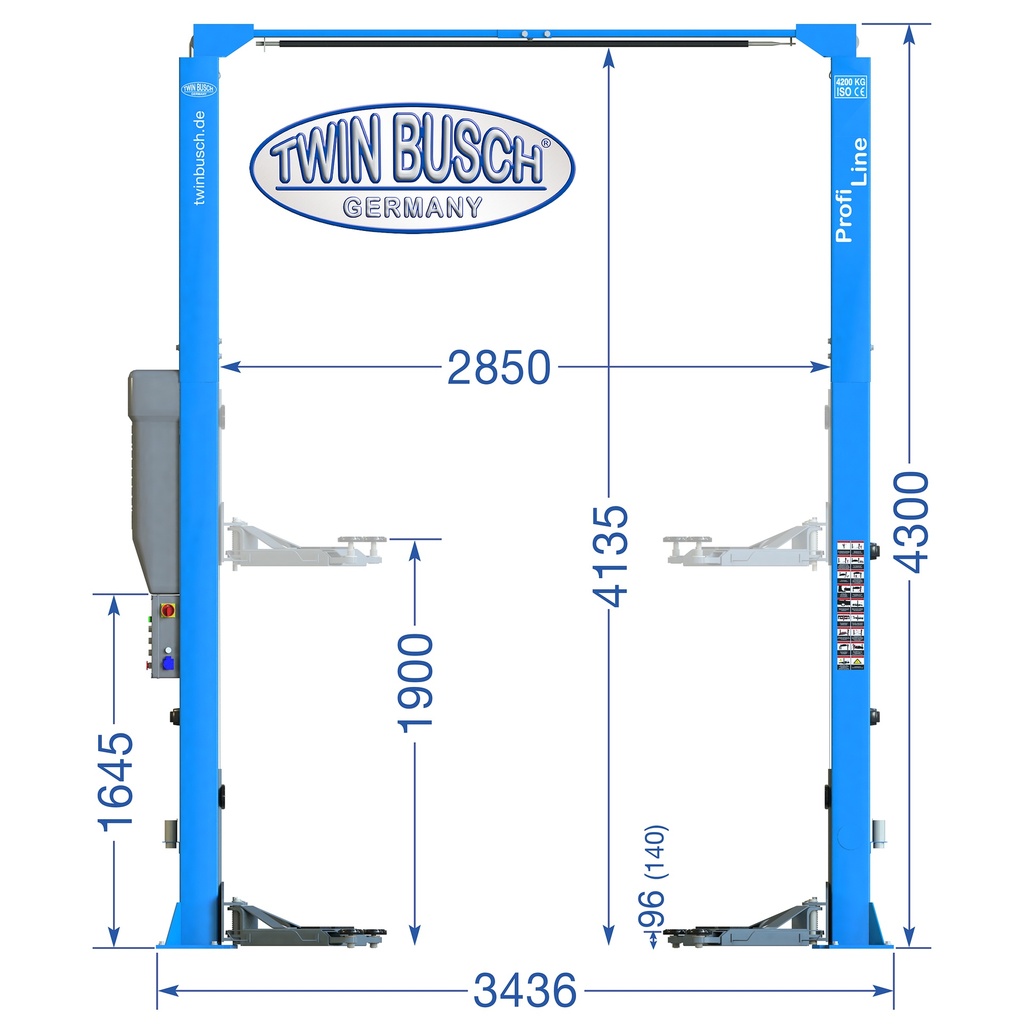

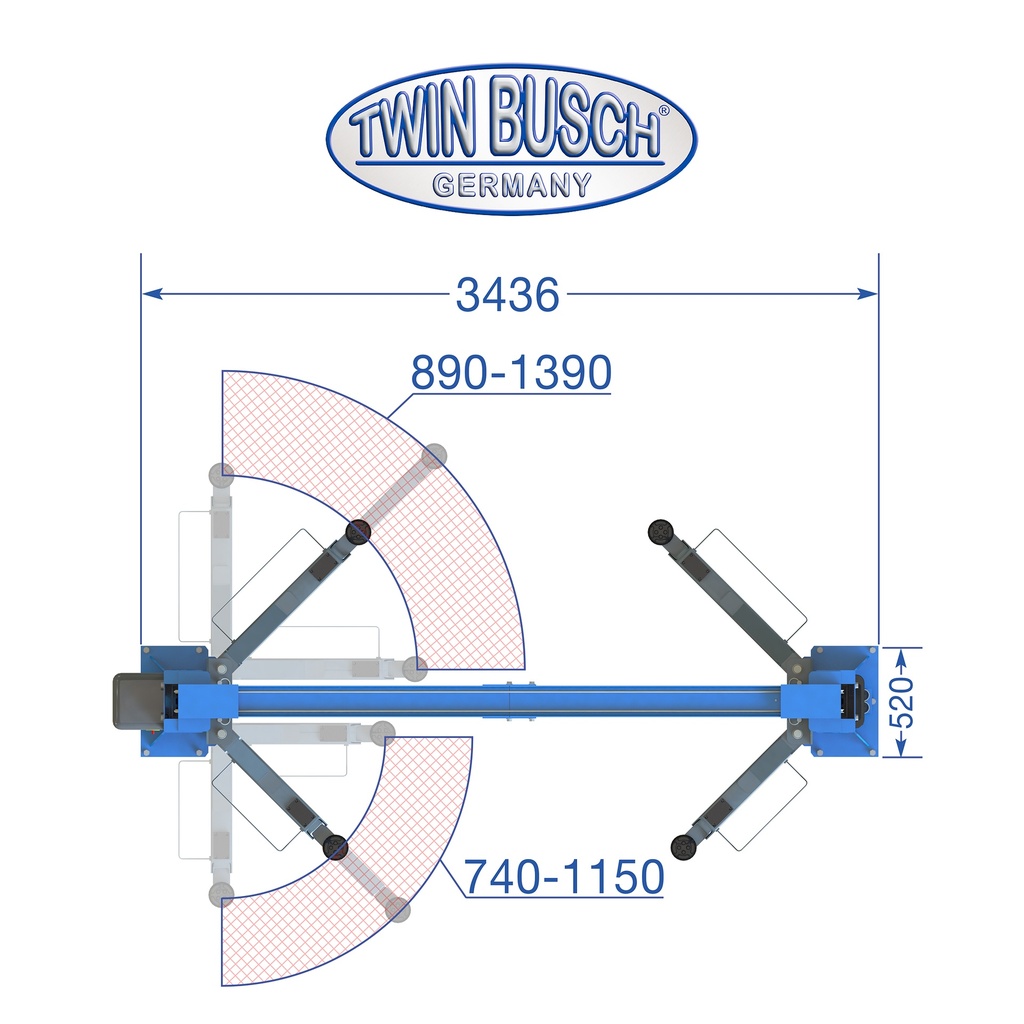

Product dimensions
Vehicle type / Wheelbase
This graphic is for information purposes only!
Contents of the delivery
- Two-post lift incl. power unit and motor cover
- Height adapter
- Bracket for extension adapter
- 10 x heavy-duty M16 anchor bolts (16 mm drill bit required)
- Door stop protection
- Operating and maintenance instructions
- 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.

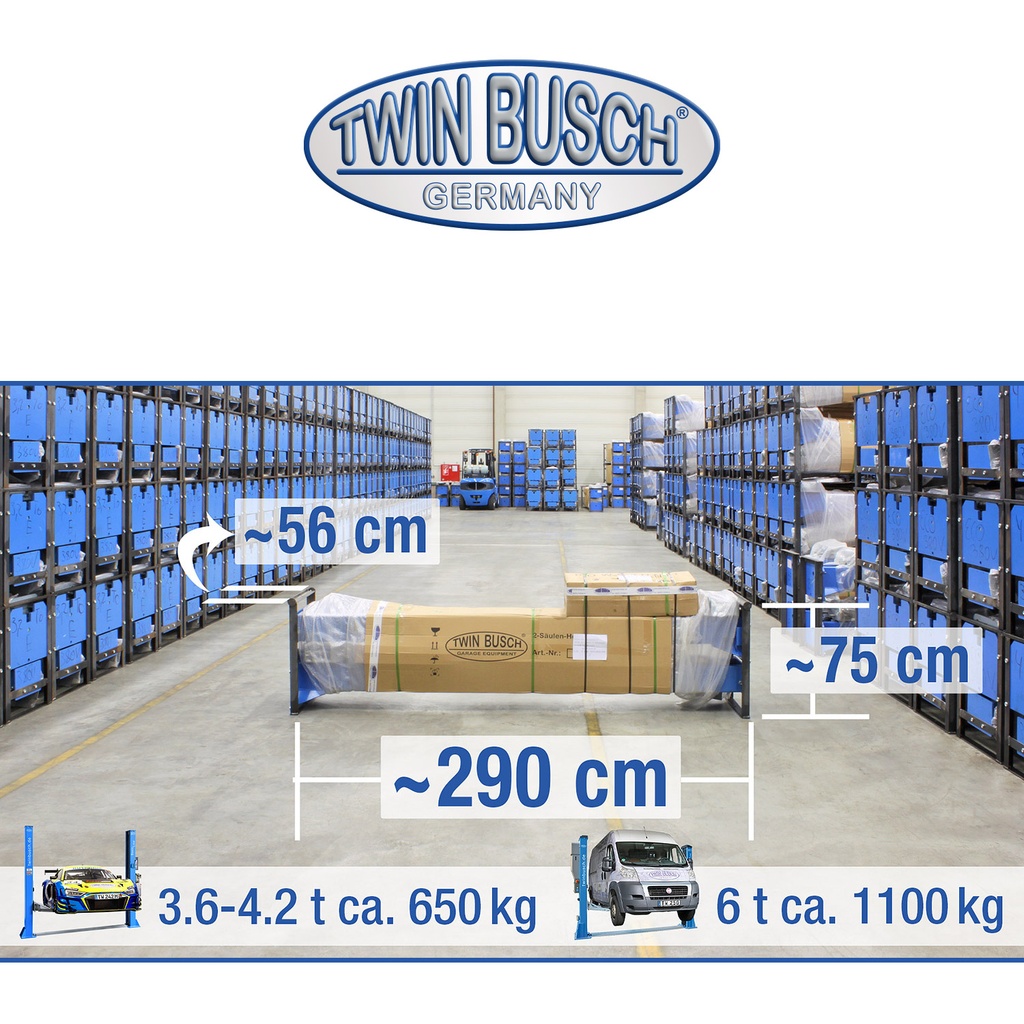

Shipping dimensions and weight
