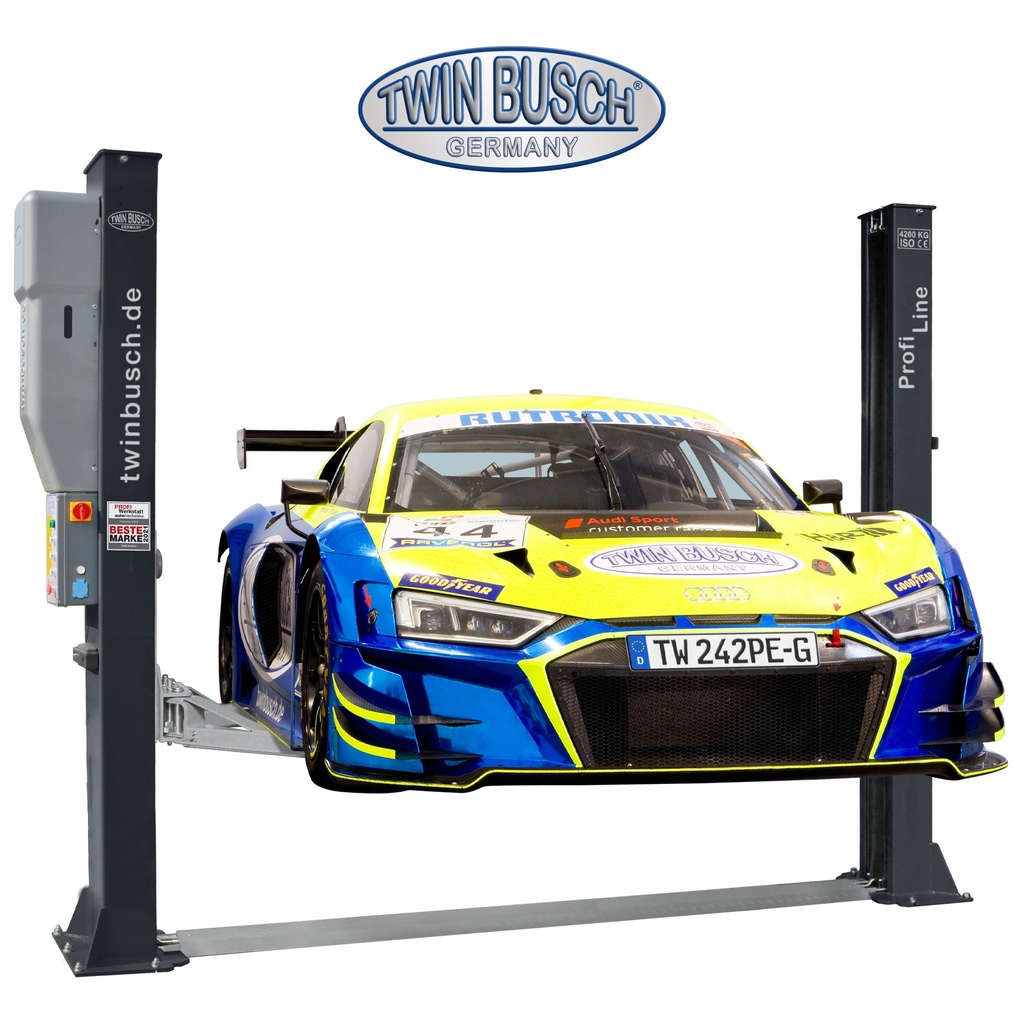

2-post lift - 4.2 tonnes - Profi-Line - Grey

TW242PE-G

2-post lift - 4.2 tonnes - Profi-Line - Grey

CHF 2,811.29 2811.29 CHF CHF 2,811.29 VAT Excluded

CHF 2,811.29 VAT Excluded

This combination does not exist.

Add to cart

380 Volt

Détails
Téléchargements

Pont élévateur 2 colonnes 4,2 tonnes - Profi-Line.

L'élévateur Profi-line est le modèle parfait pour une utilisation professionnelle, avec des verrous de sécurité automatiques et un revêtement en poudre de haute qualité.

Patins de support réglables à double filetage et plaque de sol extrêmement plate de seulement 30 mm.

Sur chaque poteau, vous disposez d'un support de fixation pratique pour les adaptateurs d'extension.

Nouveau :
bouton anti-soulèvement , permet de descendre l'élévateur sans qu'il doive se lever avant de s'enfoncer dans une prise 230 V placée dans le boîtier de commande.

Présentation du produit	Assemblage

Caractéristiques

Excellent workmanship with the CE certificate for the UVV safety test
Fabriqué selon la norme ISO 9001
New: Anti-Lift-Up-button
New: 230 V socket
Plaques de levage rotatives avec protection du filetage
Abaissement d'urgence en cas de coupure de courant
Poteaux de soutien à profil spécial de haute qualité
Double vérin pour un levage fort et stable
Dispositif de verrouillage automatique du bras
Levage synchronisé grâce aux câbles en acier
Revêtement en poudre de qualité selon la norme DIN 55633
Bras de levage télescopiques extra plats pour voitures de sport
Support de rangement pratique pour deux adaptateurs d'extension
New: Motor-Cover included (Stylish design, dust protection and noise reduction)

Données techniques

Lifting capacity

4200 kg

Max lifting height

1900 mm/Annonce 2010

Low lifting point

96 mm

Lifting, lowering time (approx.)

45/30 secondes

Power supply

400V / 3 phases

Motor power

2,2 kW

Fuse protection

16 A / type C

Weight

650 kg

Hauteur de levage (coussin de levage vissé)

1900 mm

Hauteur de levage (coussin de levage vissé)

1960 mm

Lifting height (Lifting pad+adapter screwed out)

2060 mm

Safety release

Automatique

Lifting pads

2 vitesses

Transporter adapters

compris

Powder coated

Oui

Column chain guard

compris

Motor-Cover

compris

Air-Kit

facultatif

Anti-Lift-Up-Button

Oui

230 V socket placed in the control box

Oui

Floor plate

Oui (30 mm)

Overall width / bottom plate (without motor)

3436 mm

Post hight

2824 mm

Required concrete depth (Special solution)

200 mm

Lifting arm length / short

740-1150 mm

Lifting arm length / long

890-1390 mm

Width between posts

2850 mm

Max. height

Max. width

2574 mm

Colour

RAL 5015 (bleu), RAL 7000 (gris)

TW242PE - Vue d'ensemble

TW242M-FZ - Overview
Control unit The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.	E-Motor Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.	Arm-locking system The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.
Supporting arms Flat, telescopic and slanted support arms for sports cars. The asymmetrical design of the support arms allows the doors to be opened particularly wide.	Door stop protection The door stop protects your car doors by preventing them from slamming shut unintentionally.	Flat drive-over plate The flat drive-over plate of the post lift is only 30 mm high.
2-stage turntable The post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm.	Anti-Lift-Up-Button The anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first.	230 V socket A handy 230 V socket is located directly on the control box for added convenience.
Extension adapters On each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each.	Accessories TW236PE-AIR The optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection.	Accessories TWLED-2 The LED illumination TWLED-2 (optionally available) consists of 4 flexible and magnetic LED light bands / LED strips, a transformer, power and connection cables, a remote control and the necessary assembly and installation material. These LED lights provide a pleasant light in any colour and brightness.
Accessories TW242-GPV The base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm.

TW242M-FZ - Overview

Control unit

The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.

E-Motor

Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.

Arm-locking system

The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.

Supporting arms

Flat, telescopic and slanted support arms for sports cars. The asymmetrical design of the support arms allows the doors to be opened particularly wide.

Door stop protection

The door stop protects your car doors by preventing them from slamming shut unintentionally.

Flat drive-over plate

The flat drive-over plate of the post lift is only 30 mm high.

2-stage turntable

The post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm.

Anti-Lift-Up-Button

The anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first.

230 V socket

A handy 230 V socket is located directly on the control box for added convenience.

Extension adapters

On each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each.

Accessories TW236PE-AIR

The optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection.

Accessories TWLED-2

The LED illumination TWLED-2 (optionally available) consists of 4 flexible and magnetic LED light bands / LED strips, a transformer, power and connection cables, a remote control and the necessary assembly and installation material. These LED lights provide a pleasant light in any colour and brightness.

Accessories TW242-GPV

The base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm.

Dimensions du produit

Type de véhicule / Empattement

Ce graphique à disposition exclusivement à des fins d'information !

Contenu de la livraison

Lève-personne à deux colonnes, y compris unité de puissance et capot moteur
Adaptateurs de transport (4 pièces)
Boulons d'extension (10 pièces)
Support pour l'adaptateur d'extension
Protection de la porte
Instructions d'utilisation et d'entretien
Certificat CE

Informations sur l'expédition

Expédition en Suisse - Veuillez demander les prix par e-mail à info@garagepro.ch avec le code postal.

L'élévateur est livré dans un cadre de transport.

Dimensions et poids pour l'expédition

Vidéo sur l'expédition

TW242PE-G_de_handbuch.pdf View

TW242PE-G_en_manual.pdf View

TW242PE-G_fondation_plan.pdf View

TW242PE-G_fr_manuel.pdf View
