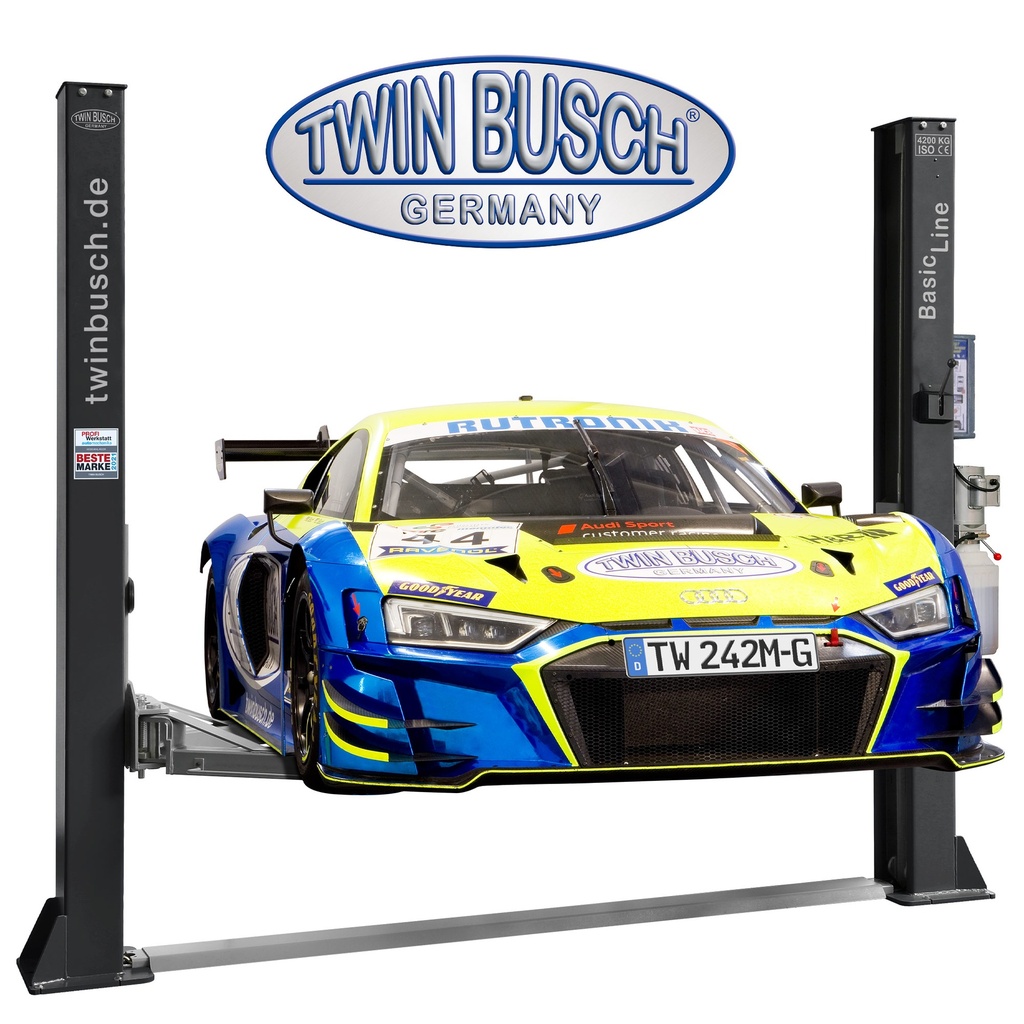

4.2-tonne 2-post car lift – semi-automatic – anthracite
The ideal entry-level model offering excellent value for money.
Our entry-level model is now better than ever, featuring two height-adjustable lifting pads and a very low profile (just 35 mm).
With our Basic-line lift, you can lift any vehicle, from a Smart car to a small van.
Product overview
Assembly
Features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- Mechanical safety locking system
- High-quality support posts with a special profile
- 2 hydraulic cylinders for powerful lifting and lowering
- Automatic arm locking system
- Synchronisation using steel cables
- Manual double release
- Telescopic lifting arm
Technical data
TW242M-230-G - Overview |
||
|---|---|---|
Control unitThe convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working. |
E-motorPowerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor. |
Arm-locking systemThe support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety. |
Supporting armsFlat, 3-way telescopic and bevelled support arms for pushchairs. The asymmetrical design of the support arms allows the doors to be opened particularly wide. |
Door stop protectionThe door stop protects your car doors by preventing them from slamming shut unintentionally. |
Flat drive-over plateThe flat drive-over plate of the lifting platform is only 35 mm high. |
Single-lock releaseThe lift is equipped with a manual release on only one side (single-lock). |
1-stage turntableThe lifting platform has a 1-stage height-adjustable turntable with a low swivelling height. |
Accessories TWLED-2The LED illumination TWLED-2 (optionally available) consists of 4 flexible and magnetic LED light bands / LED strips, a transformer, power and connection cables, a remote control and the necessary assembly and installation material. These LED lights provide a pleasant light in any colour and brightness. |
Accessories TW242-GPVThe base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm. |
Dimensions and weight
Vehicle type / Wheelbase
This chart is provided for information purposes only; GIMP SARL accepts no liability in connection with it.
Contents of the delivery
- Lift with power unit
- Heavy-duty anchor bolts (10 pieces)
- Rubber door protectors
- User manual in English
- Examination book, 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.
