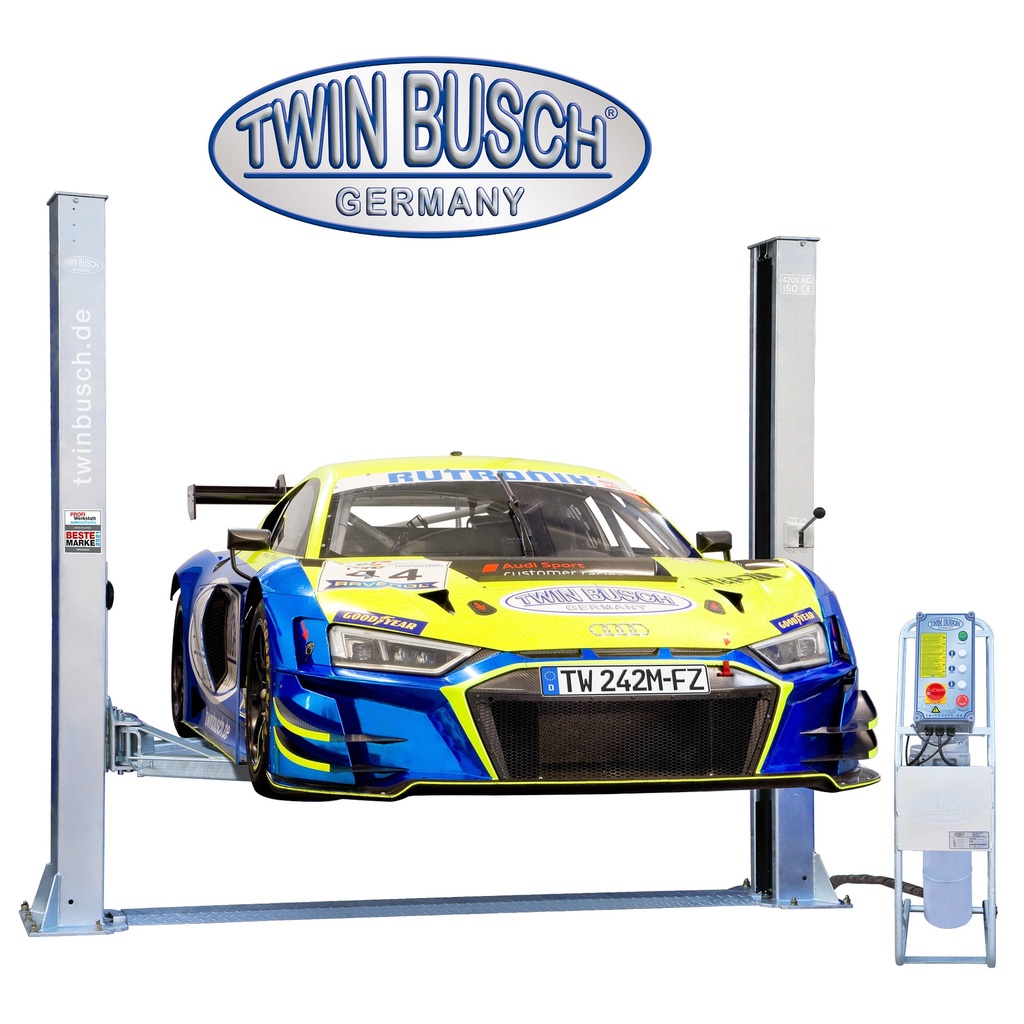

2-post lift 4.2 tonnes - Galvanised - Semi-automatic.
The ideal entry-level model with TOP value for money.
Our entry-level model is now better than ever, with 2 height-adjustable lifting pads and a very low footprint (only 35 mm).
With our Basic-line lift, you can lift any vehicle, from a Smart car to a small van.
Product presentation
Assembly
Features
- 1st class quality built with CE certificate
- Manufactured in accordance with the ISO 9001 standard
- Mechanical safety locking mechanism
- High-quality support posts with special profiles
- 2 hydraulic cylinders for powerful lifting and lowering
- Automatic arm locking system
- Wire rope synchronisation
- Double manual release
- Telescopic lifting arm
Technical data
TW242M-FZ - Overview |
||
|---|---|---|
GalvanisationThe entire construction, including bolts and screws, is hot-dip galvanised for the best possible protection against corrosion. |
Control unitThe convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working. |
E-MotorPowerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor. |
Arm-locking systemThe support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety. |
Supporting armsFlat, telescopic and slanted support arms for sports cars. The asymmetrical design of the support arms allows the doors to be opened particularly wide. |
Door stop protectionThe door stop protects your car doors by preventing them from slamming shut unintentionally. |
Flat drive-over plateThe flat drive-over plate of the lifting platform is only 35 mm high. |
Single-lock releaseThe lift is equipped with a manual release on only one side (single-lock). |
1-stage turntableThe lifting platform has a 1-stage height-adjustable turntable with a low swivelling height. |
Quick-release couplingThe control unit can be disconnected from the post lift by a quick-release coupling, so that it can be protected against the weather when not in use indoors. |
Product dimensions
Type of vehicle / Wheelbase
This graph is for information purposes only!
Scope of delivery
- Lift with feed unit
- Heavy-duty anchor bolts (10 pieces)
- Rubber door protectors
- English instruction manual
- Examination booklet and CE certificate
- Oil not included - can be ordered as an option
- Car not included
