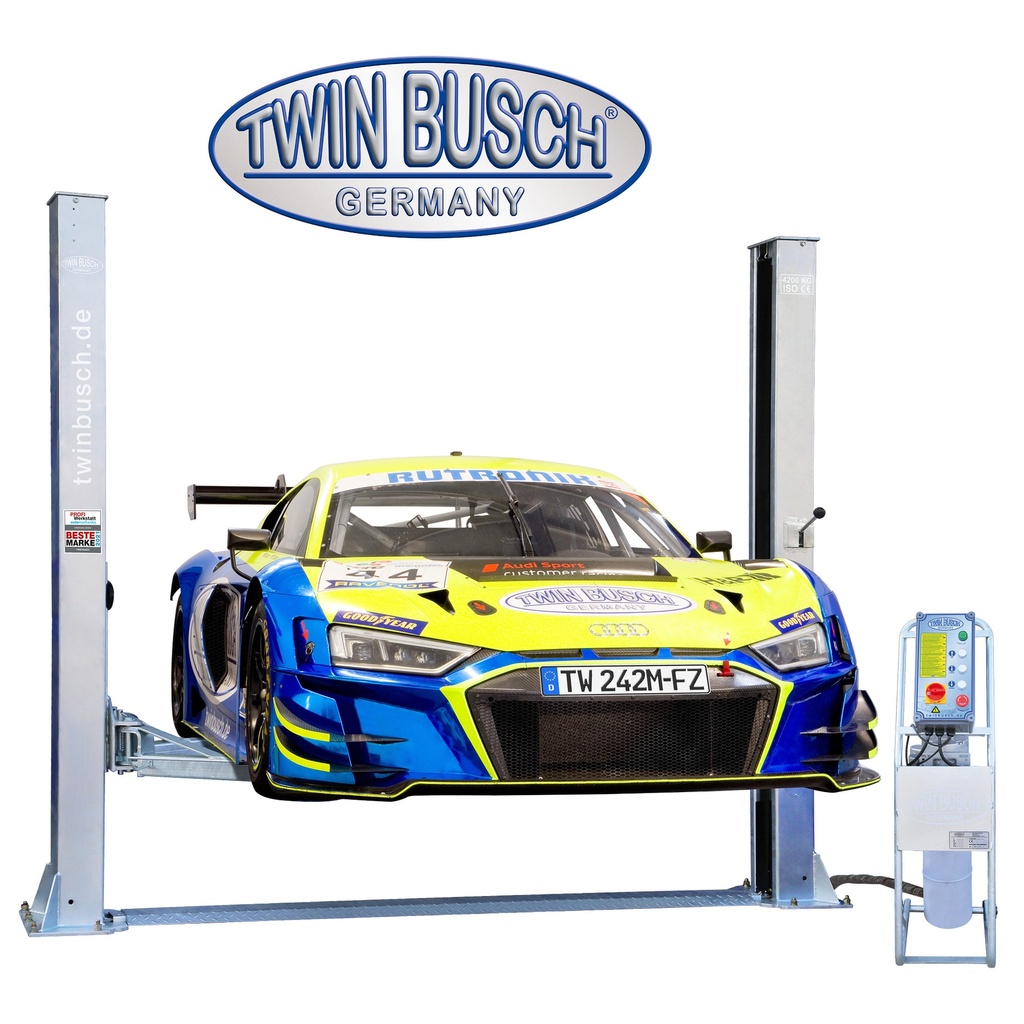

2 post lift 4.2 t - galvanized

Name: 2 post lift 4.2 t - galvanized
Price: 2996.3 CHF
Availability: InStock

230 Volt

CHF 2,996.30 VAT Excluded

Add to cart

Add to wishlist

Documents

TW242M-230-FZ_de_handbuch TW242M-230-FZ_en_manual.pdf TW242M-230-FZ_fixation.pdf TW242M-230-FZ_fondation_plan.pdf TW242M-230-FZ_fr_manuel.pdf

Internal Reference: TW242M-230-FZ

2-post lift 4.2 tonnes - Galvanised - Semi-automatic

The ideal entry-level model with TOP value for money.
Our entry-level model is now better than ever, with 2 height-adjustable lifting pads and a very low footprint (only 35 mm).
With our Basic-line lift, you can lift any vehicle, from a Smart car to a small van.

Product presentation

Assembly

Product features

1A Quality built with CE certificate
Manufactured according to ISO 9001
Mechanical safety locking system
High quality special profile supporting columns
2 hydraulic cylinders for powerful lifting and lowering
Automatic arm locking system
Wire rope synchronisation
Manual double release
Telescopic lifting arm

Technical data

Lifting capacity

4200 kg

Maximum lifting height

1900 mm / Ad 2050

Low lift point

96 mm

Lifting and lowering time (approx.)

45/30 seconds

Power supply

230 V

Engine power

2,2 kW

Fuse protection

16 A / type C

Weight

600 kg

Lifting height (lifting pad screwed in)

1900 mm

Lifting height (lifting pad screwed in)

1940 mm

Lifting height (lifting pad + screwed adapter)

2040 mm

Safety release

Manual release on one side only / single lock / one-hand release.

Lifting cushions

In one step

Carrier adapters

optional

High-quality powder coating

Yes

Protection of the column chain

optional

Motor cover

Air kit

Anti-lift button

230 V socket in control box

Floor plate

Yes (35 mm)

Overall width / base plate (without motor)

3436 mm

Column height

2824 mm

Depth of concrete required (special solution)

200 mm

Lifting arm length / short

740-1150 mm

Lifting arm length / long

890-1390 mm

Width between columns

2850 mm

Maximum height

Maximum width

2574 mm

TW242M-FZ - Overview

Galvanized

The entire construction, including bolts and screws, is hot-dip galvanised for the best possible protection against corrosion.

Control unit

The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.

E-motor

Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor.

Arm-locking system

The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.

Supporting arms

Flat, 3-way telescopic and bevelled support arms for pushchairs. The asymmetrical design of the support arms allows the doors to be opened particularly wide.

Door stop protection

The door stop protects your car doors by preventing them from slamming shut unintentionally.

Flat drive-over plate

The flat drive-over plate of the lifting platform is only 35 mm high.

Single-lock release

The lift is equipped with a manual release on only one side (single-lock).

1-stage turntable

The lifting platform has a 1-stage height-adjustable turntable with a low swivelling height.

Quick-release coupling

The control unit can be disconnected from the post lift by a quick-release coupling, so that it can be protected against the weather when not in use indoors.

Product dimensions

Vehicle type / Wheelbase

This graphic is for information purposes only!

Contents of the delivery

Lift with feed unit
Heavy-duty anchor bolts (10 pcs.)
Rubber door protectors
English instruction manual
Examination book, 1A Quality built with CE certificate
Oil is not included – it can be ordered as an optional extra
Car not included
