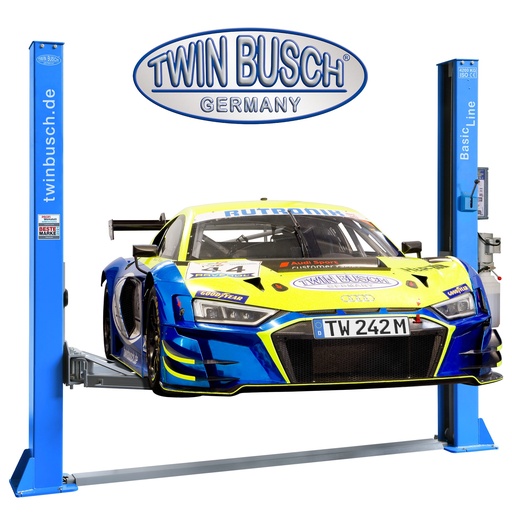

2 post lift 4.2 t - BASIC LINE

Name: 2 post lift 4.2 t - BASIC LINE
Price: 2163.74 CHF
Availability: InStock

230 Volt

CHF 2,163.74 VAT Excluded

Add to cart

Add to wishlist

Documents

TW242M-230_datasheet TW242M-230_de_handbuch TW242M-230_en_manual TW242M-230_fondation_plan.pdf TW242M-230_fr_manuel.pdf

Pont élévateur à 2 colonnes 4,2 tonnes - Semi automatique.

2-post lift 4.2 tonnes - Semi-automatic. The ideal entry-level model with TOP value for money.
Our entry-level model is now better than ever, with 2 height-adjustable lifting pads and a very low footprint (only 35 mm).
With our Basic-line lift, you can lift anything from a Smart car to a small transporter.

Product presentation

Assembly

Features

1A Quality built with CE certificate
Manufactured in accordance with the ISO 9001 standard
Mechanical safety locking mechanism
High-quality support posts with special profiles
2 hydraulic cylinders for powerful lifting and lowering
Automatic arm locking system
Wire rope synchronisation
Double manual release
Telescopic lifting arm

Technical data

Lifting capacity

4200 kg

Maximum lifting height

1900 mm/Ad 2050

Low lift point

96 mm

Lifting and lowering time (approx.)

45/30 seconds

Power supply

230V

Engine power

2,2 kW

Fuse protection

16 A / type C

Weight

600 kg

Lifting height (lifting pad screwed in)

1900 mm

Lifting height (lifting pad screwed in)

1940 mm

Lifting height (lifting pad + screwed adapter)

2040 mm

Safety release

Manual unlocking on one side only / single locking / single-handed unlocking.

Lifting pads

In one step

Carrier adapters

optional

Powder coating

Yes

Protection of the column chain

optional

Motor cover

Air kit

Anti-lift button

230 V socket in control box

Floor plate

Yes (35 mm)

Overall width / base plate (without motor)

3436 mm

Post height

2824 mm

Depth of concrete required (special solution)

200 mm

Lifting arm length / short

740-1150 mm

Lifting arm length / long

890-1390 mm

Width between posts

2850 mm

Maximum height

Maximum width

2574 mm

Color

RAL 5015 (bleu), RAL 7000 (gris)

TW242A - Vue d'ensemble

TW242M-230 - Overview

Control unit

The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.

E-Motor

Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor.

Arm-locking system

The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.

Supporting arms

Flat, telescopic and slanted support arms for sports cars. The asymmetrical design of the support arms allows the doors to be opened particularly wide.

Door stop protection

The door stop protects your car doors by preventing them from slamming shut unintentionally.

Flat drive-over plate

The flat drive-over plate of the lifting platform is only 35 mm high.

Single-lock release

The lift is equipped with a manual release on only one side (single-lock).

1-stage turntable

The lifting platform has a 1-stage height-adjustable turntable with a low swivelling height.

Accessories TWLED-2

The LED illumination TWLED-2 (optionally available) consists of 4 flexible and magnetic LED light bands / LED strips, a transformer, power and connection cables, a remote control and the necessary assembly and installation material. These LED lights provide a pleasant light in any colour and brightness.

Accessories TW242-GPV

The base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm.
