BASIC-Line Lift - 4,2 t - BASIC LINE - Garage Model

BASIC-Line Lift - 4,2 t - BASIC LINE - Garage Model

230 Volt

CHF 2,348.75 VAT Excluded

capacité de levage
- 4.2
Type d'embase
- au sol
Type de bras
- droits
Type de véhicule
- Véhicules légers
- SUV
alimentation
- 230 V

Add to cart

Add to wishlist

Documents

TW242GE-230-DEUTSCH TW242GE-230-ENGLISH twinbusch_242-g_handbuch.pdf

Internal Reference: TW242GE-230-G

2-post lift - 4.2 tonnes - BASIC LINE - Garage model

Garage model - Recommended for garages with limited space and low ceilings. The TW242G is designed for garages with limited space , with its 3 metres wide and a pole height of 2.32 metres, it's perfect for normal garages. With adjustable lifting pads and a 35 cm flat floor plate.

Features

1A Quality built with CE certificate
Manufactured according to ISO 9001
Width only 3 m
Column height 2.32 m
Lifting height 1.60 m
Perfect for normal garages
Mechanical safety locking system
High quality special profile supporting columns
2 hydraulic cylinders for powerful lifting and lowering
Automatic arm locking system
Wire rope synchronisation
Manual double release
Telescopic lifting arm

Technical data

Lifting capacity

4200 kg

Maximum lifting height

1600 mm / Ad 1740

Low lifting point

96 mm

Lifting and lowering time (approx.)

45/30 seconds

Power supply

230 V

Engine power

2,2 kW

Fuse protection

16 A / type C

Weight

540 kg

Lifting height (lifting pad screwed in)

1600 mm

Lifting height (lifting pad screwed in)

1640 mm

Lifting height (lifting pad + screwed adapter)

1740 mm

Safety release

Automatic

Lifting cushions

In one step

Carrier adapters

optional

High-quality powder coating

Yes

Protection of the column chain

Motor cover

Air kit

Anti-lift button

230 V socket in control box

Floor plate

Yes (35 mm)

Overall width / base plate (without motor)

2986 mm

Column height

2324 mm

Depth of concrete required (special solution)

200 mm

Lifting arm length / short

520-715 mm

Lifting arm length / long

620-880 mm

Width between columns

2500 mm

Maximum height

Maximum width

2224 mm

Colour

RAL 5015 (Blue), RAL 7000 (Grey)

TW242GE-230-G - Présentation générale

Garage model

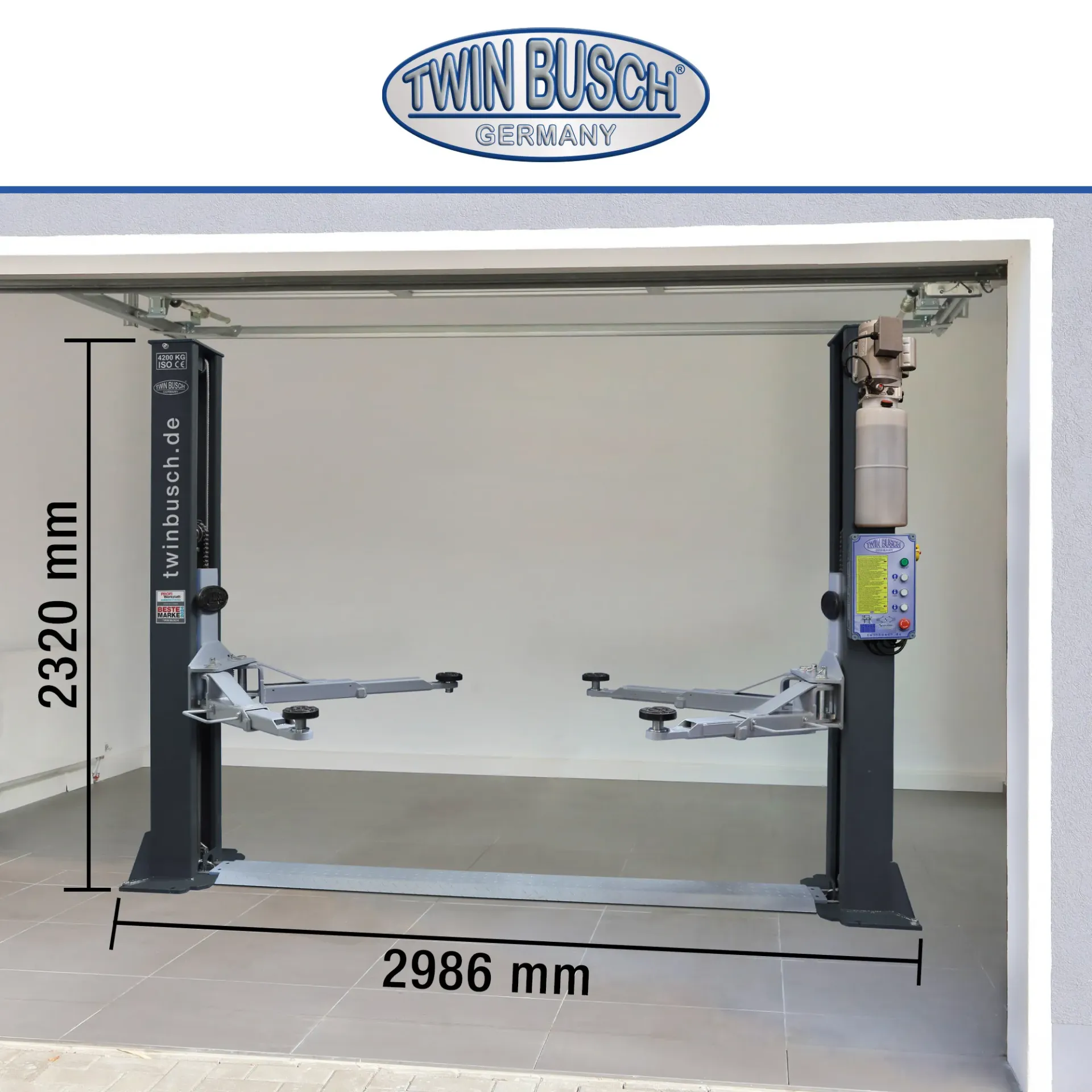

With a total width of less than 3 metres and a column height of just 2.32 metres, the post lift is suitable for standard garages with width restrictions and low ceilings.

Control unit

The convenient control unit (protection class IP 54, 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic safety device for safe working. Two control units (one per column) ensure a particularly high level of operating comfort.

E-motor

Two powerful hydraulic units with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor.

Arm-locking system

The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.

Supporting arms

Flat, telescopic and slanted support arms for sports cars. The asymmetrical design of the support arms allows the doors to be opened particularly wide.

Door stop protection

The door stop protects your car doors by preventing them from slamming shut unintentionally.

Flat drive-over plate

The flat drive-over plate of the lifting platform is only 35 mm high.

1-stage turntable

The lifting platform has a 1-stage height-adjustable turntable with a low swivelling height.

Accessories TW242GE-GPV

The base plate reinforcement set TW242GE-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm.
