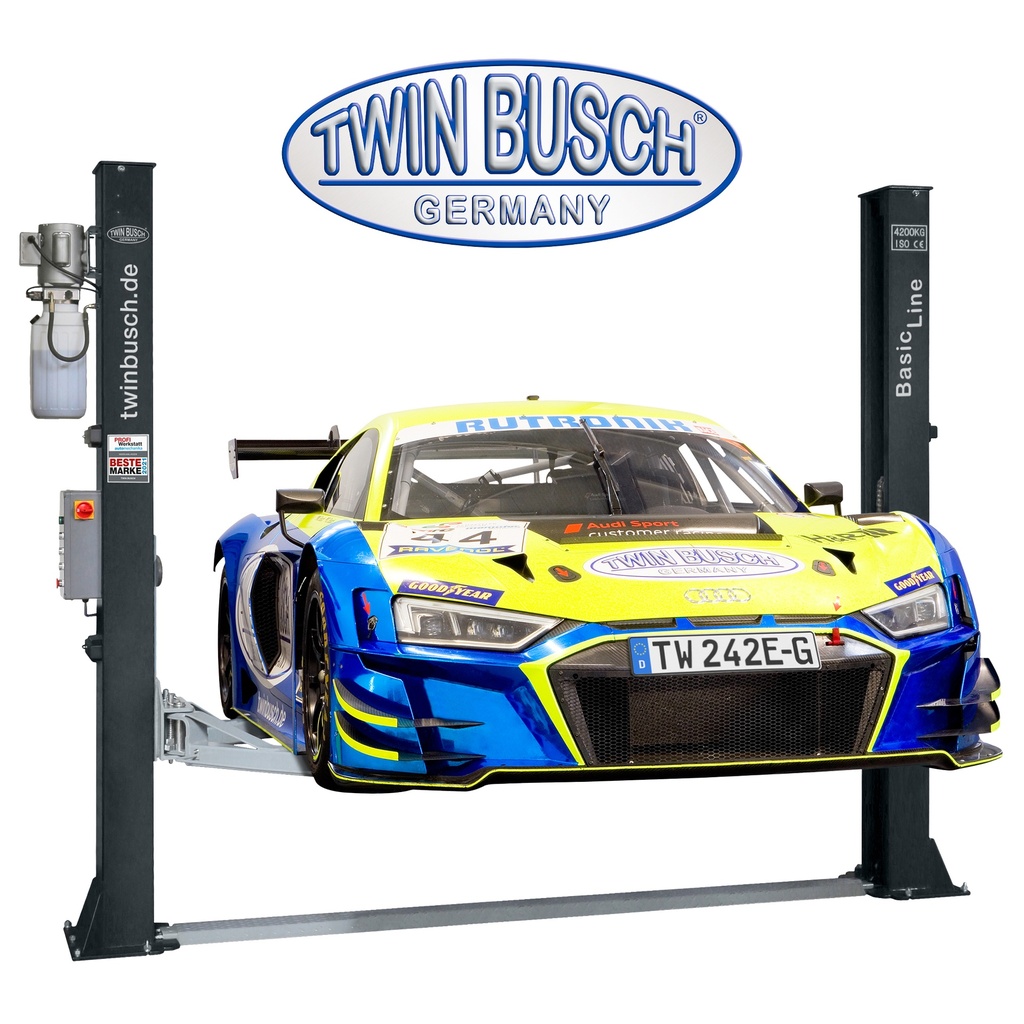

4.2-tonne 2-post car lift – basic line– anthracite
4.2 t 2-post lift – BASIC LINE Automatic – anthracite. The ideal entry-level model offering excellent value for money. The Basic Line lift in the electromagnetic version with a load capacity of 4,200 kg. Featuring automatically unlocking safety latches, adjustable lifting pads, a high-quality powder-coated finish and a flat lift plate (just 35 mm thick). With the Basic Line electromagnetic car lift, you can lift everything from a Smart car to vans.
Product overview
Assembly
Features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- Automatic safety lock-release system
- Rotating lifting plates with thread protection
- Emergency lowering in the event of a power cut
- High-quality support posts with a special profile
- 2 hydraulic cylinders for powerful lifting and lowering
- Automatic arm locking system
- High-quality powder coating
- Synchronisation using steel cables
- Extra-flat telescopic lifting arms for sports cars
Technical data
TW242E - Overview
Control unitThe convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working. |
E-motorPowerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover. |
Arm-locking systemThe support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety. |
Supporting armsFlat, telescopic and slanted support arms for sports cars. The asymmetrical design of the support arms allows the doors to be opened particularly wide. |
Door stop protectionThe door stop protects your car doors by preventing them from slamming shut unintentionally. |
Flat drive-over plateThe flat drive-over plate of the post lift is only 30 mm high. |
1-stage turntableThe lifting platform has a 1-stage height-adjustable turntable with a low swivelling height. |
Accessories TWLED-2The LED illumination TWLED-2 (optionally available) consists of 4 flexible and magnetic LED light bands / LED strips, a transformer, power and connection cables, a remote control and the necessary assembly and installation material. These LED lights provide a pleasant light in any colour and brightness. |
Accessories TW242-GPVThe base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm. |
Product dimensions
Vehicle type / Wheelbase
This chart is provided for information purposes only; GIMP SARL accepts no liability in connection with it.
Contents of the delivery
- Lift with power unit
- Heavy-duty anchor bolts (10 pieces)
- Rubber door protectors | User manual in English
- Examination book, 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.
Dimensions and weight
Video about the expedition
Specifications
| Type de véhicule | Véhicules légers, SUV |
| capacité de levage | 4.2 |
| Type d'embase | au sol |
| Type de bras | droits |
| alimentation | 230 V |
