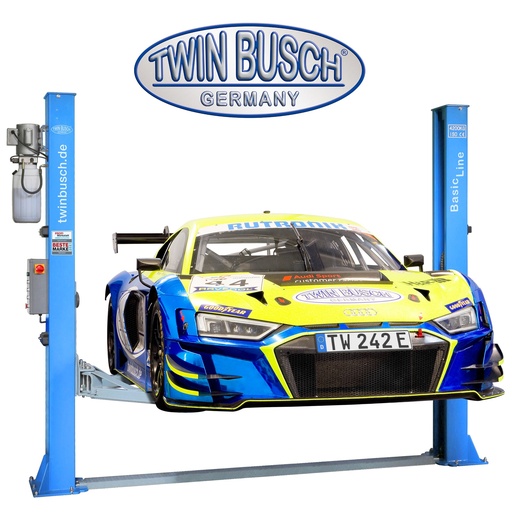

4.2-tonne 2-post car lift - BASIC LINE
2-post lift 4.2 tonnes - BASIC LINE. The ideal entry-level model with TOP value for money.
Basic Line electromagnetic lifts with a load capacity of 4200 kg.
With automatically releasable safety latches, adjustable lifting pads, high-quality powder coating and a flat deck plate (only 35 mm). With the electromagnetic Basic Line, you can lift everything from Smart cars to vans.
Product presentation
Assembly
Product characteristics
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- Automatic safety lock-release system
- Rotating lifting plates with thread protection
- Emergency lowering in the event of a power cut
- High quality special profile supporting columns
- 2 hydraulic cylinders for powerful lifting and lowering
- Automatic arm locking system
- High-quality powder coating
- Wire rope synchronisation
- Extra-flat telescopic lift arms for sports cars
Technical data
Lifting capacity
4200 kg
Maximum lifting height
1900 mm / Ad 2050
Low lifting point
96 mm
Lifting and lowering time (approx.)
45/30 seconds
Power supply
230 V
Engine power
2,2 kW
Fuse protection
16 A / type C
Weight
600 kg
Lifting height (lifting pad screwed in)
1900 mm
Lifting height (lifting pad screwed in)
1940 mm
Lifting height (lifting pad+adapter screwed on)
2040 mm
Safety release
Automatic
Lifting cushions
In one step
Carrier adapters
optional
High-quality powder coating
Yes
Protection of the column chain
optional
Motor cover
-
Air kit
-
Anti-lift button
No
230 V socket in control box
No
Floor plate
Yes (35 mm)
Overall width / base plate (without motor)
3436 mm
Post height
2824 mm
Depth of concrete required (special solution)
200 mm
Lifting arm length / short
740-1150 mm
Lifting arm length / long
890-1390 mm
Width between columns
2850 mm
Maximum height
-
Maximum width
2574 mm
Colour
RAL 5015 (Blue), RAL 7000 (Grey)
TW242E - Overview
Product dimensions
Vehicle type / Wheelbase
This graphic is for information purposes only!
Scope of delivery
- Lift with feed unit
- Heavy-duty anchor bolts (10 pcs.)
- Rubber door protectors | English instruction manual
- Examination book, 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.
Shipping dimensions and weight
Video about the expedition
