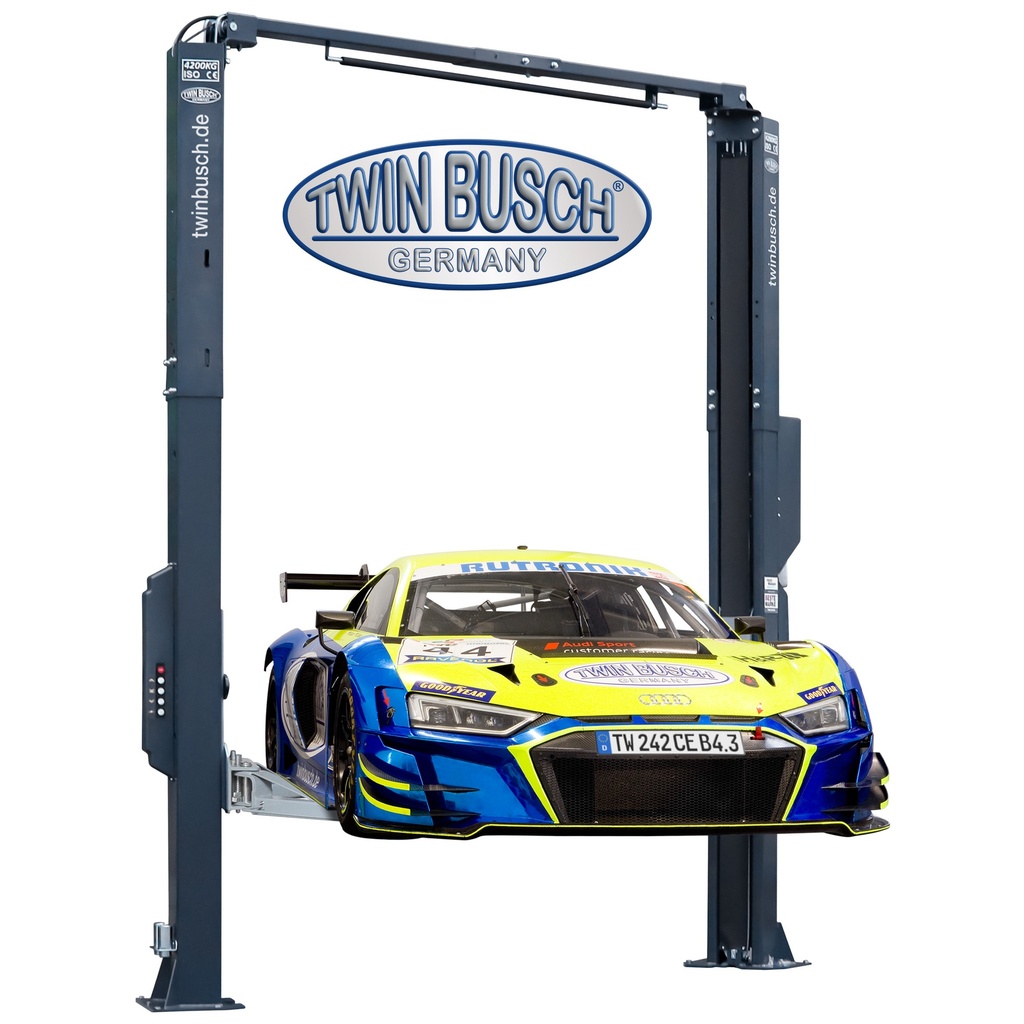

TW242CEB4.3-400-G: 2 post lift - clear floor - Comfort-Line - GREY-Line
Product description
The Comfort-Line - barrier-free.
The Comfort-Line lifting platform is well-equipped and therefore ideal for professional
use in workshops.
It has an automatic release of the safety latch and a two-stage
height-adjustable turntable with a swivelling height of only approx. 85 mm. In addition,
the lifting platform has three-part telescopic support arms for a large support
area.
Depending on the type of vehicle you will be lifting, the columns can be
mounted either symmetrical or asymmetrical.
The asymmetrical design allows for
optimal door opening clearance for cars with low door positions, while the symmetrical
design offers more space between the columns for wider vehicles. You can choose between
2872 mm and 3016 mm drive-through width.
The height of the lift can be individually
selected depending on the ceiling or vehicle height, with options between 3867 mm and
4300 mm.
For ease of use, the lift is equipped with an additional control box, so the
TW242CEB4.3-G can be operated from either side. It also has an anti-lift-up button that
allows the lift to be lowered precisely without first having to raise it
automatically.
On the outside of each column, there is a practical holder for plug-in
adapters, which offers space for the secure storage of two plug-in adapters at a time.
Product presentation
Features
- 1A Quality built with CE-Certificate
- Manufactured in accordance to ISO 9001
- Anti-Lift-Up-Button
- Control box on both columns, operation possible on both columnsh
- Can be set up symmetrically or asymmetrically
- 3-part telescopic support arms
- Only approx. 85 mm swivelling height
- Protective cover in front of the columns
- Automatic safety locking and unlocking
- High-quality supporting columns made of special rolled profile
- 2 hydraulic cylinders for powerful lifting and lowering
- Automatic support arm locking device
- Synchronised control using wire ropes
- With symmetrical assembly, the passage width (between the pillars) can be selected between 2872 mm and 3016 mm
- Post lift height can be selected between 3867 mm and 4300 mm depending on the ceiling or vehicle height
- Practical plug-in adapter holders (one holder on each side of the column) for two plug-in adapters each
-
NEW: Includes motor cover
(Stylish design, dust protection and noise-dampening effect)
Technical data
Note:
This product requires an increased mains voltage for its proper operation and is not equipped with a two-pole mains plug. The installation of non-pluggable equipment must be carried out by the respective network operator or a registered specialist company, which will also assist you in obtaining any necessary approval from the respective network operator for the installation of the equipment.
TW242CEB4.3-400-G - Overview
Customised alignment
The height of the post lift can be individually selected depending on the ceiling or vehicle height. In addition, the post lift allows for barrier-free access.
Control unit 1
The convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working.
Control unit 2
Two control units (one per column) ensure a particularly high level of operating comfort.
E-Motor
Powerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover.
2-stage turntable
The post lift has a 2-stage height-adjustable turntable with a low swivelling height of just 85 mm.
Arm-locking system
The support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety.
Supporting arms
Flat, 3-part telescopic and bevelled support arms. Assembly of the support arms can be either symmetrical or asymmetrical, enabling an optimal door opening clearance or more space between the columns.
Door stop protection
The door stop protects your car doors by preventing them from slamming shut unintentionally.
Post protection cover
The post protection cover protects the hydraulic cylinder from flying sparks during welding and flexing work. It offers a high level of safety and impresses with its attractive appearance.
Product Dimensions - Symmetrical Assembly
Product dimensions – Asymmetrical Assembly
Vehicle type / Wheelbase
The illustrated vehicles are only an example to give you an understanding of different
wheelbases and vehicle lengths.
Of course, a variety of other vehicle manufacturers and
models can be raised.
If you have any questions, we are happy to advise you personally!
+41 (0) 27 722 10 00 or info@garagepro.ch
*The vehicles shown were raised with the manufacturer's or alternative lifting points. Pay attention to our Twin Busch special adapters to ensure safe lifting, since some vehicles, especially in the transporter class, have no lifting points as with most cars. Always follow the relevant equipment regulations of the vehicle manufacturer. Always observe the usual safety precautions during lifting and lowering as well as the correct load distribution, maximum load and always read the manual of the lift.
Vehicle status: 2024, Subject to technical changes and errors. Garagepro provides this graphic exclusively for information purposes! Garagepro is under no circumstances liable for recommendations from this graphic.
Delivery contents
- Lift incl. Power unit
- Transporter extensions (4 pcs.)
- plug-in adapter holders
- 10 x heavy-duty anchors M16 (16 mm drill bit required)
- door rubber stops
- English instruction manual
- Examination book and CE-Certificate
- Oil not included – can be optionally ordered
- Car not included
- The lift arrives bolted to a transport frame.
- Important note! The customer must have a forklift available for unloading!
- Please note that access for a lorry of 18 t to 40 t must be possible for deliveries.
- According to international haulage law, the driver only has to deliver the goods to the kerbside. If there is level access to your hall or garage, the carrier will usually be happy to deliver the goods there.
