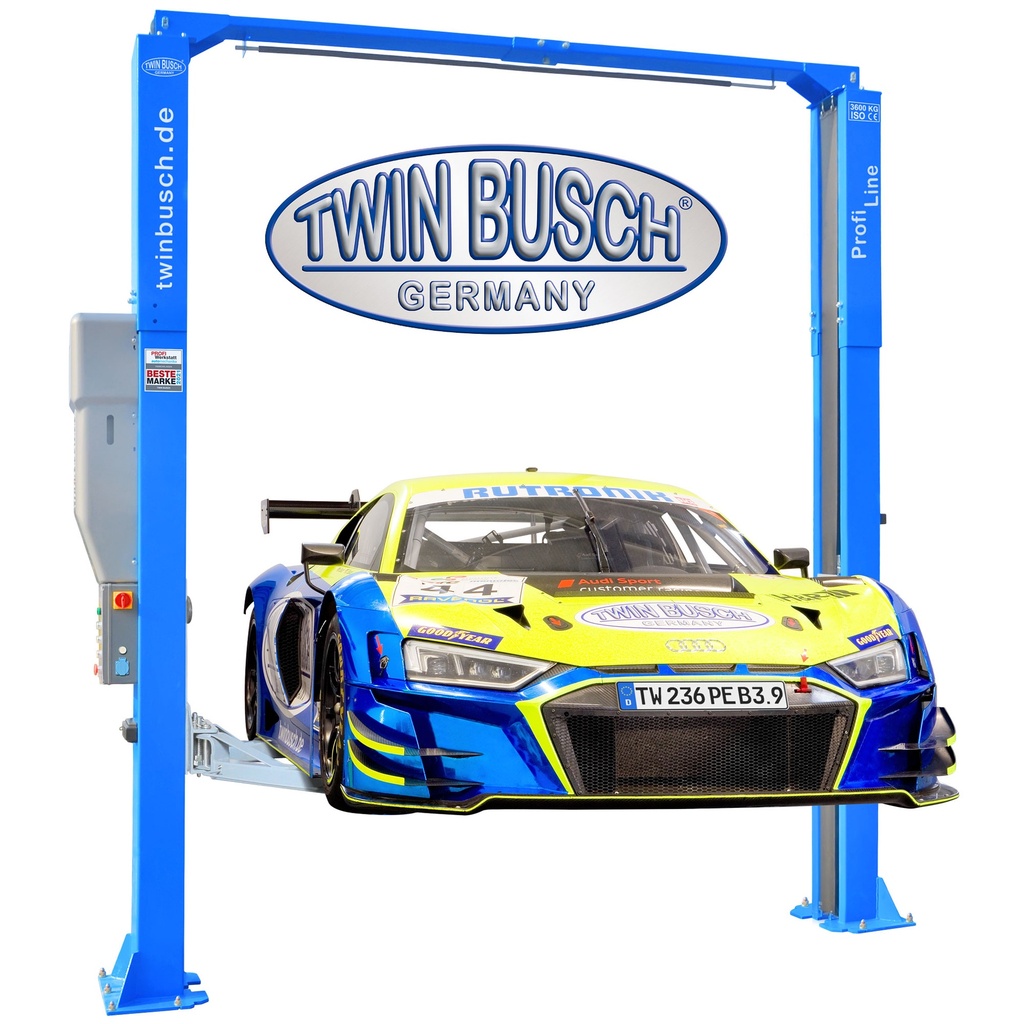

2-post lift 3.6 tonnes - without flange - Profi-Line
With electric release, includes round screw-on lifting pads and height adapters. Clear floor.
Each post has a practical mounting bracket for extension adapters.
New: anti-lift up button , for targeted lowering of the lift without prior automatic lifting. And a practical 230 V socket directly on the control box.
Product presentation
Assembly
Features
- Excellent manufacturing quality with CE certificate
- Manufactured to ISO 9001 standard
- New: Anti-lift button
- New: 230 V socket
- Column cover
- Electrical release
- Special rolled section column
- 2 hydraulic cylinders for strong lifting and lowering
- Automatic arm lock device
- Synchronization through steel ropes
- 2 stage telescopic arms
- Lift height 3900 mm
- Practical storage bracket for two extension adapters
- NEW: Motor-Cover included (Stylish design, dust protection and noise reduction)
Technical Data
Lifting capacity
3600 kg
Max lifting height
1900 mm/Ad 2010
Low lifting point
96 mm
Lifting, lowering time (approx.)
45/30 sec.
Power supply
400V / 3 phases
Motor power
2,2 kW
Fuse protection
16 A / type C
Weight
670 kg
Lifting height (Lifting pad screwed out)
1900 mm
Lifting height (Lifting pad screwed out)
1960 mm
Lifting height (Lifting pad+adapter screwed out)
2060 mm
Safety release
Automatic
Lifting pads
2-speed
Transporter adapters
included
Powder coated
Yes
Column chain guard
included
Motor-Cover
included
Air-Kit
optional
Anti-Lift-Up-Button
Yes
230 V socket placed in the control box
Yes
Floor plate
clear floor
Overall width / bottom plate (without motor)
3436 mm
Post hight
3900 mm
Required concrete depth (Special solution)
200 mm
Lifting arm length / short
620-880 mm
Lifting arm length / long
890-1390 mm
Width between posts
2850 mm
Max. height
3775 mm
Max. width
2574 mm
Colour
RAL 5015 (Bleu), RAL 7000 (Gris)
TW236PEB3.9 - Overview
Product dimensions
Vehicle type / Wheelbase
This graphic is for information purposes only!
Delivery contents
- Two-post lift incl. power unit and Motor-Cover
- Height adapter
- Bracket for extension adapter
- 10 x heavy duty anchor bolt M16 (16 mm drill bit required)
- Door protection
- Operating and maintenance instructions
- CE-Certificate
- Oil not included – can be optionally ordered
- Car not included
Shipping information
Shipping within Switzerland - Please request prices by e-mail to info@garagepro.ch with postcode
- The lift is supplied in a transport frame.
Shipping dimensions and weights
