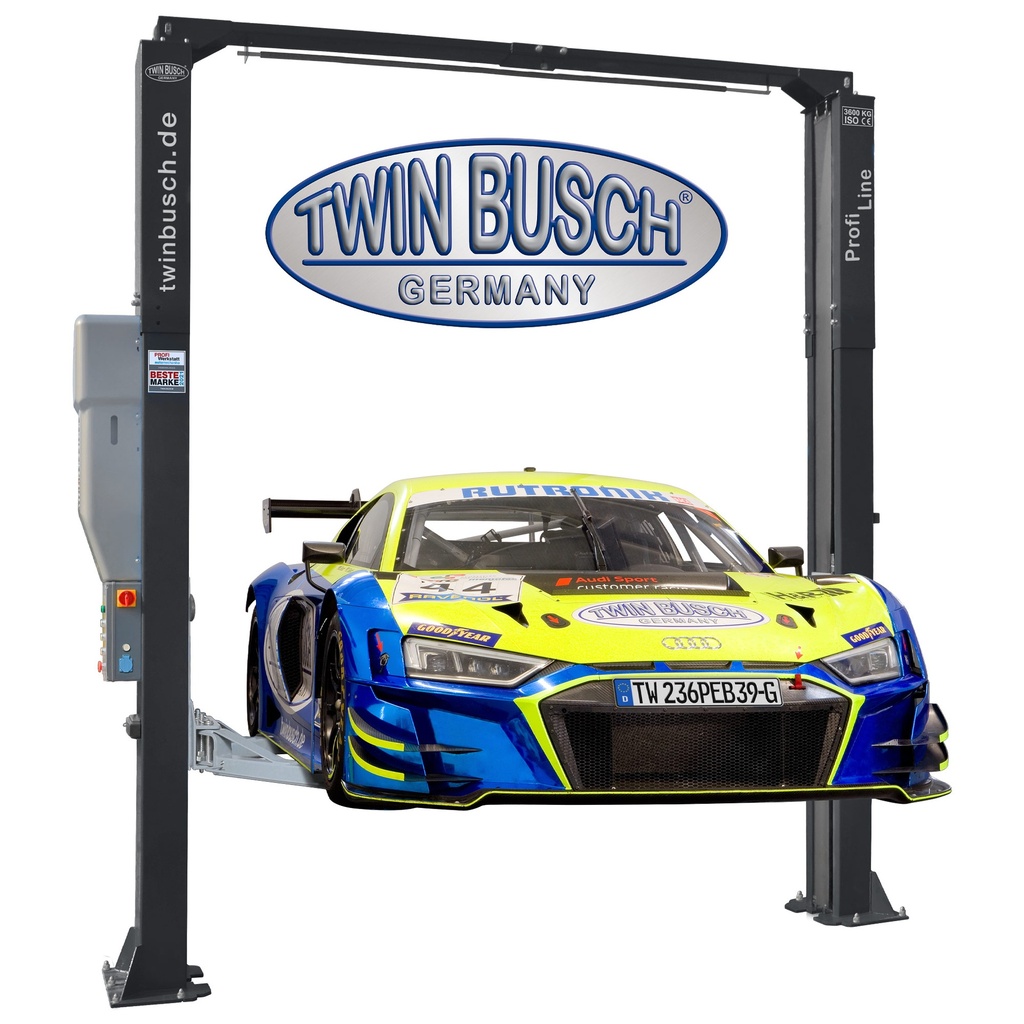

2-post 3.6-tonne car lift – without side brackets – Profi-Line
With electric release, includes round screw-in lifting pads and height adaptors. Ground clear. Each post features a handy mounting bracket for the extension adaptors.
New: anti-lift button, for controlled lowering of the lift without prior automatic lifting. And a handy 230 V socket directly on the control box.
Product overview
Assembly
Features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- New: Anti-lift-up button
- New: 230 V socket
- Column cover
- Electric unlocking
- Column with a special profile
- 2 hydraulic cylinders for powerful lifting and lowering
- Automatic arm locking system
- Synchronisation using steel cables
- 2-stage telescopic arms
- Lift height 3900 mm
- A handy storage holder for two extension adaptors
- New: motor cover included (Stylish design, dust protection and noise reduction)
Technical data
Lifting capacity
3600 kg
Max lifting height
1900 mm / Ad 2010
Low lifting point
96 mm
Lifting and lowering time (approx.)
45/30 seconds
Power supply
400 V / 3 phases
Motor power
2,2 kW
Fuse protection
16 A / type C
Weight
670 kg
Lifting height (Lifting pad screwed out)
1900 mm
Lifting height (Lifting pad screwed out)
1960 mm
Lifting height (Lifting pad+adapter screwed out)
2060 mm
Safety release
Automatic
Lifting pads
2 speed
Transporter adapters (4 pieces)
included
High-quality powder coating
Yes
Column chain guard
included
Motor cover
included

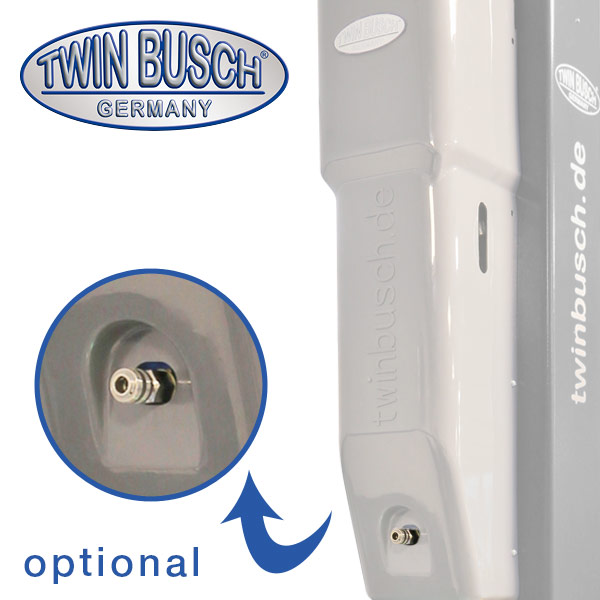

Air kit
facultatif
Anti-lift-up button
Yes
230 V socket placed in the control box
Yes
Floor plate
clear floor
Overall width / base plate (without motor)
3436 mm
Post height
3900 mm
Required concrete depth (Special solution)
200 mm

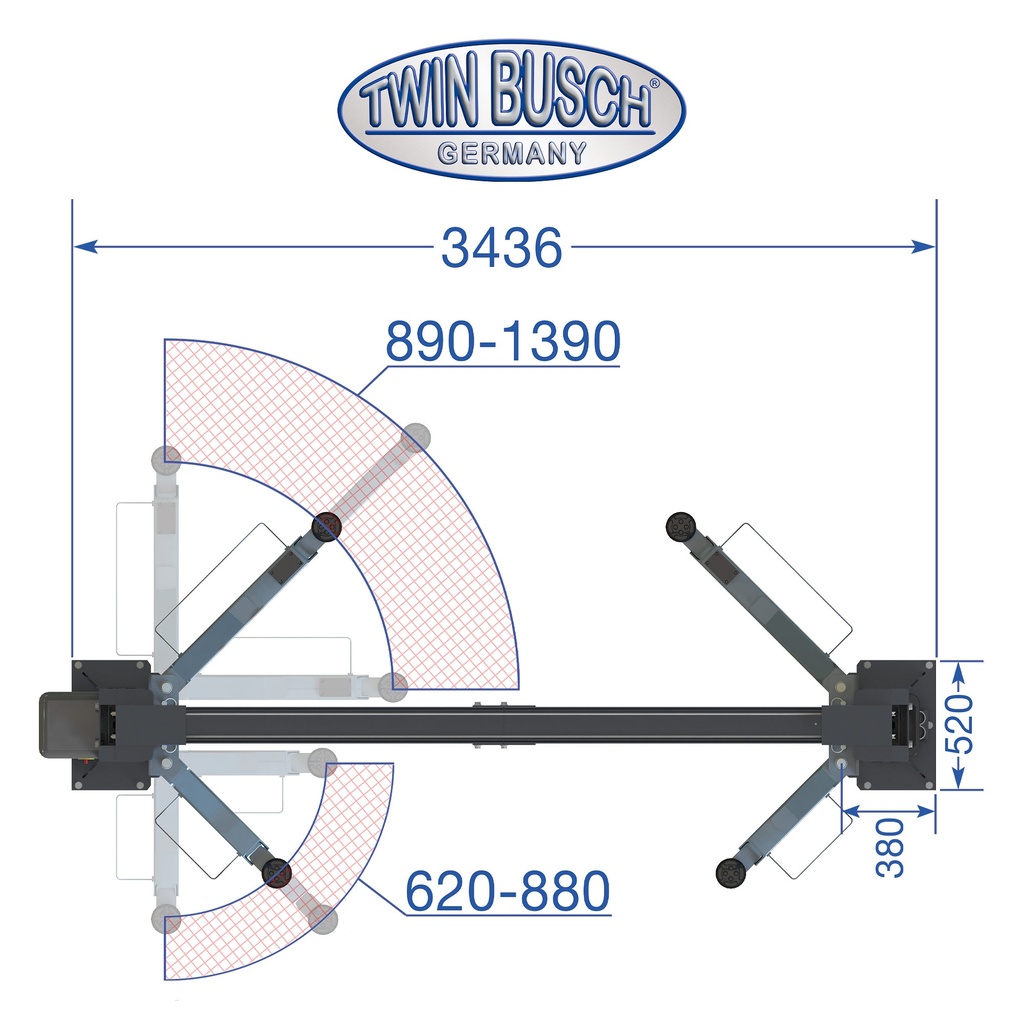

Lifting arm length / short
620-880 mm
Lifting arm length / long
890-1390 mm
Width between columns
2850 mm
Maximum height
3775 mm
Maximum width
2574 mm
Colour
RAL 7016 (Anthracite), RAL 7000 (Gray)
TW236PEB39 - Overview

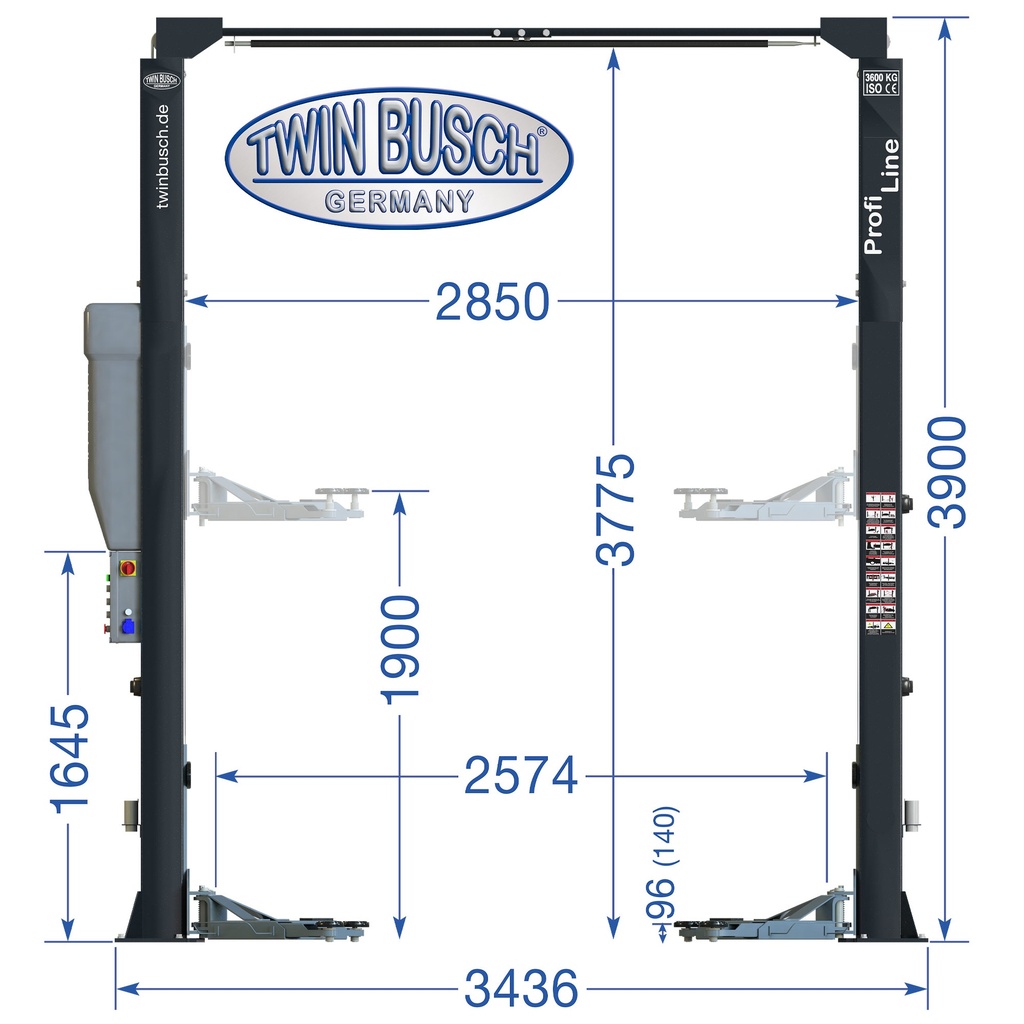

Product dimensions
Vehicle type / Wheelbase
This chart is provided for information purposes only; GIMP SARL accepts no liability in connection with it.
Contents of the delivery
- Two-post lift, including power unit and motor cover
- Height adapter
- Support for extension adapter
- Heavy-duty anchor bolts (10 pieces)
- Rubber door protectors
- Instructions for use and care
- 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.

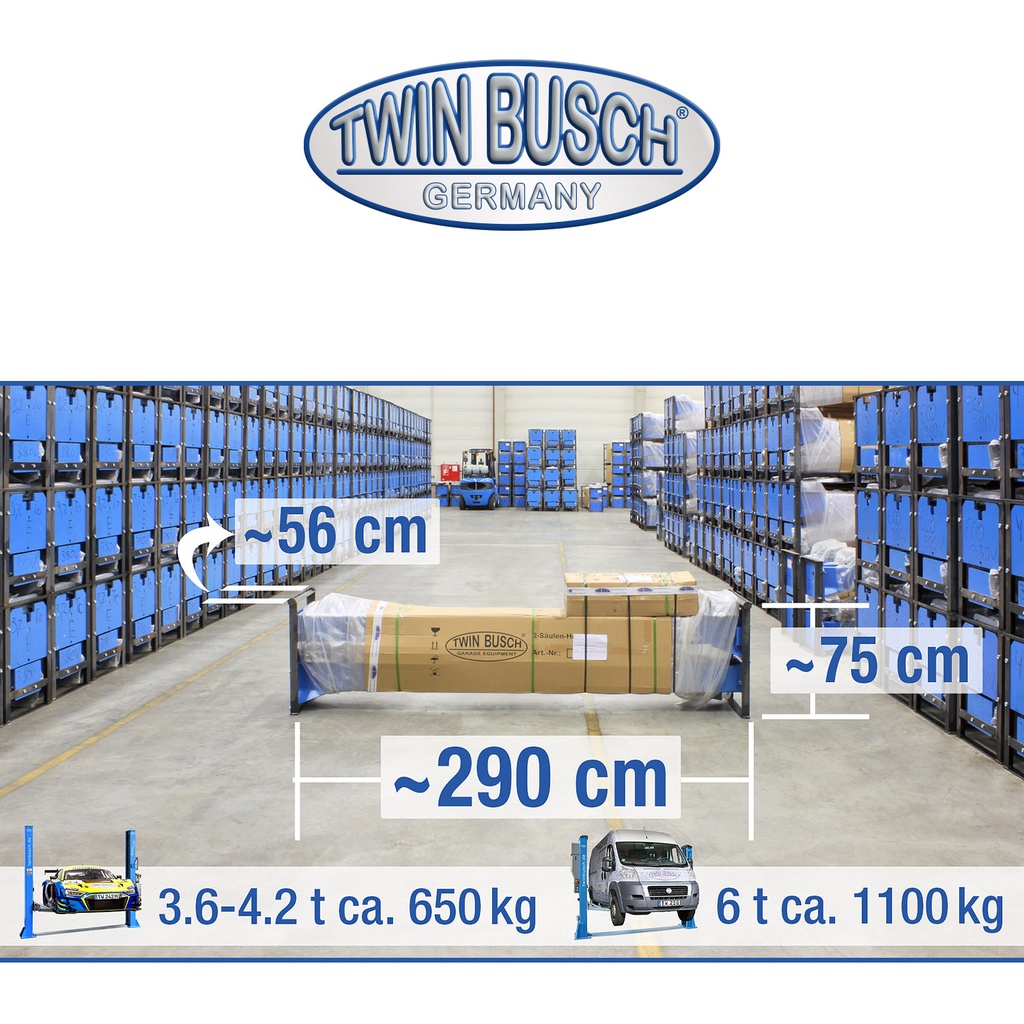

Dimensions and weight
Video about the expedition
