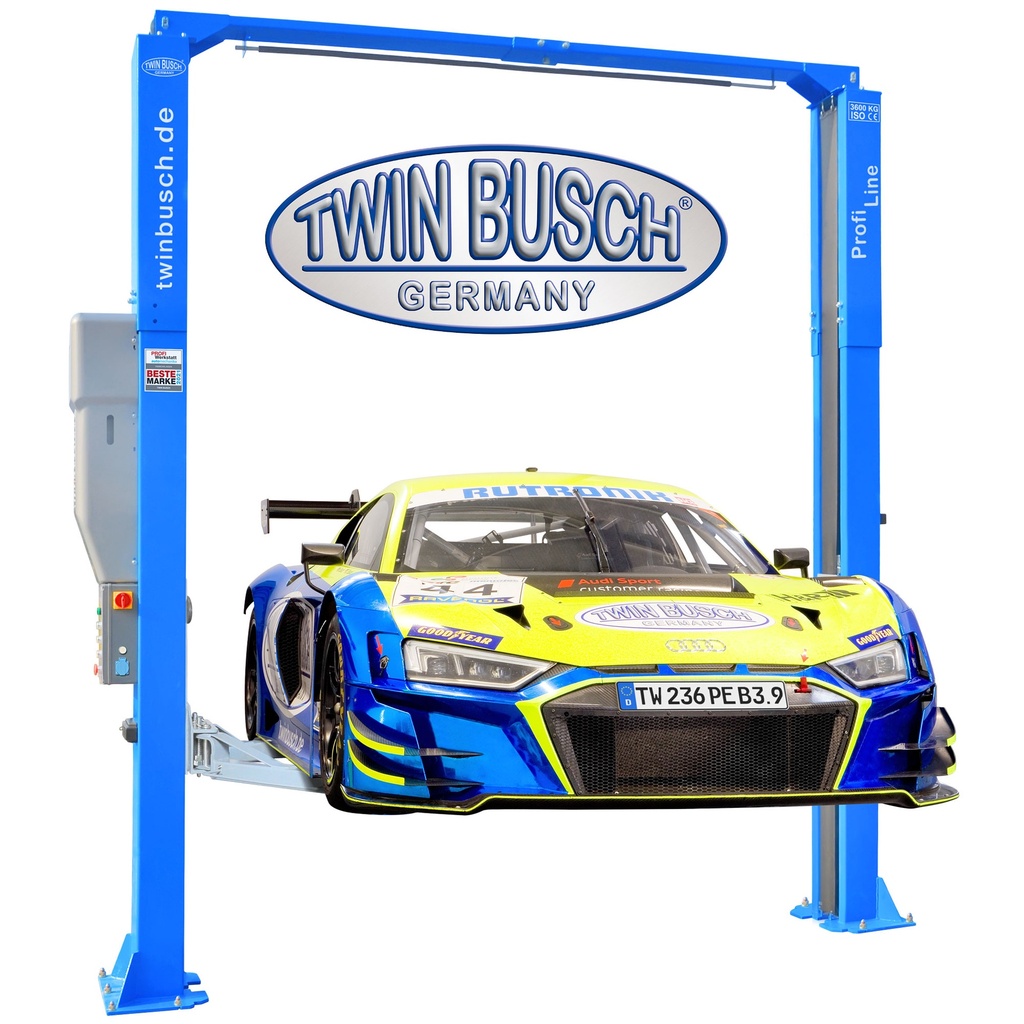

2-post lift 3.6 tonnes - without flange - Profi-Line
With electric release, includes round screw-on lifting pads and height adapters. Clear floor. Each post has a practical mounting bracket for extension adapters.
New: anti-lift up button , for targeted lowering of the lift without prior automatic lifting. And a practical 230 V socket directly on the control box.
Product presentation
Assembly
Features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- New: Anti-lift-up button
- New: 230 V socket

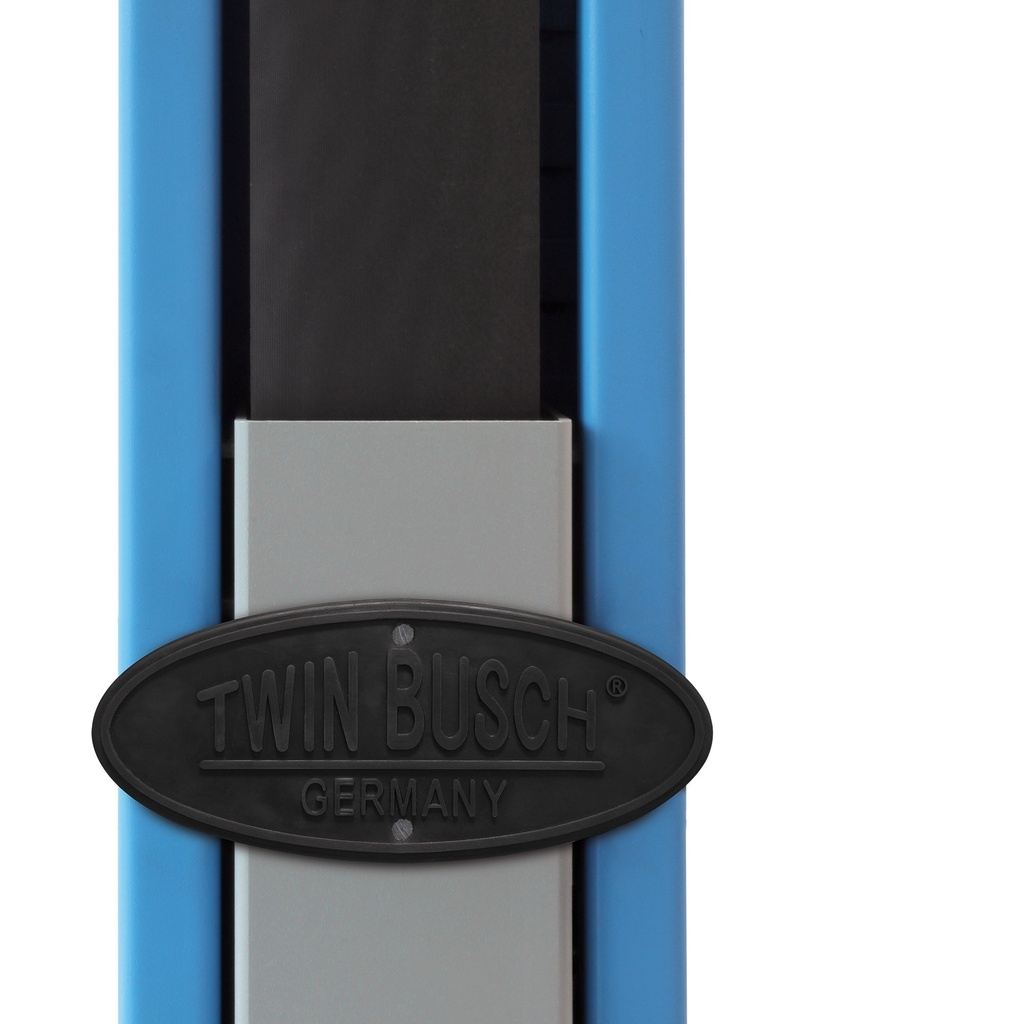

- Column cover

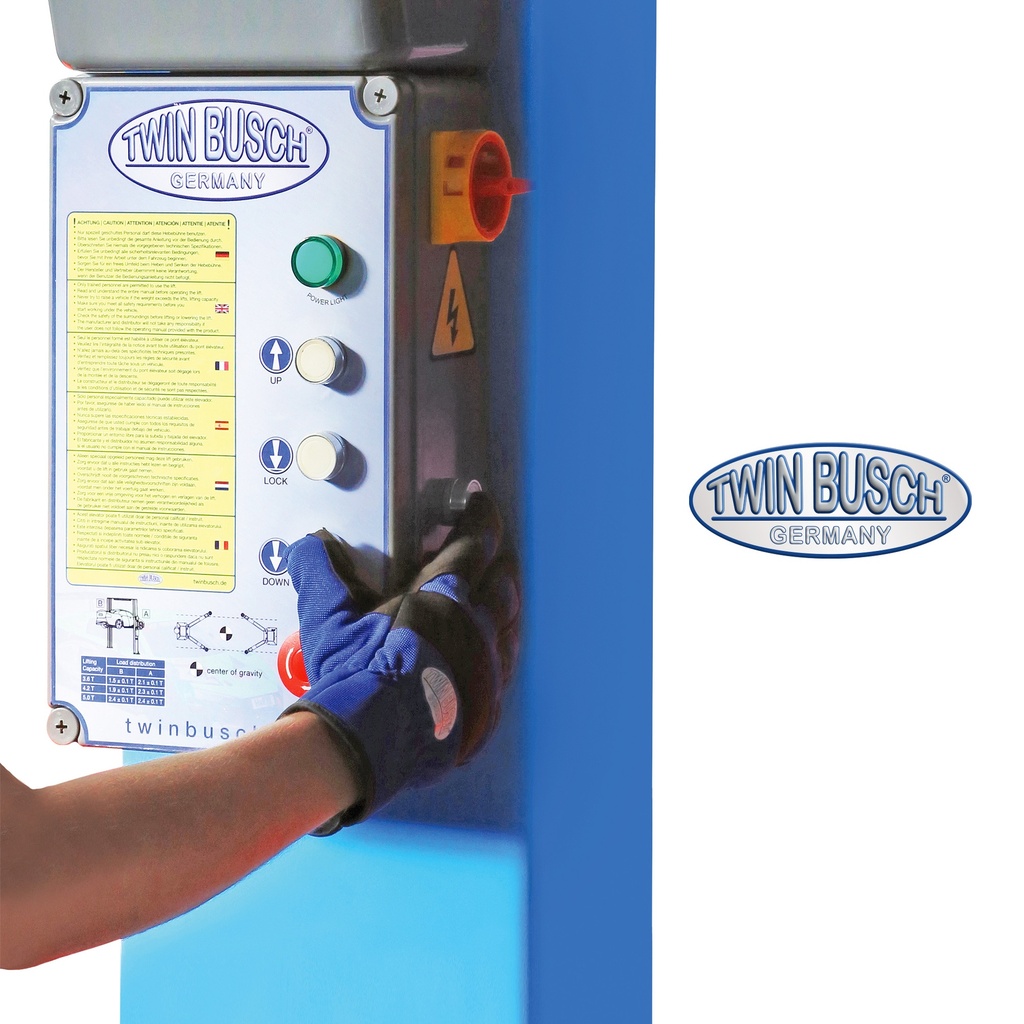

- Electrical release
- Special rolled columns
- 2 hydraulic cylinders for strong lifting and lowering

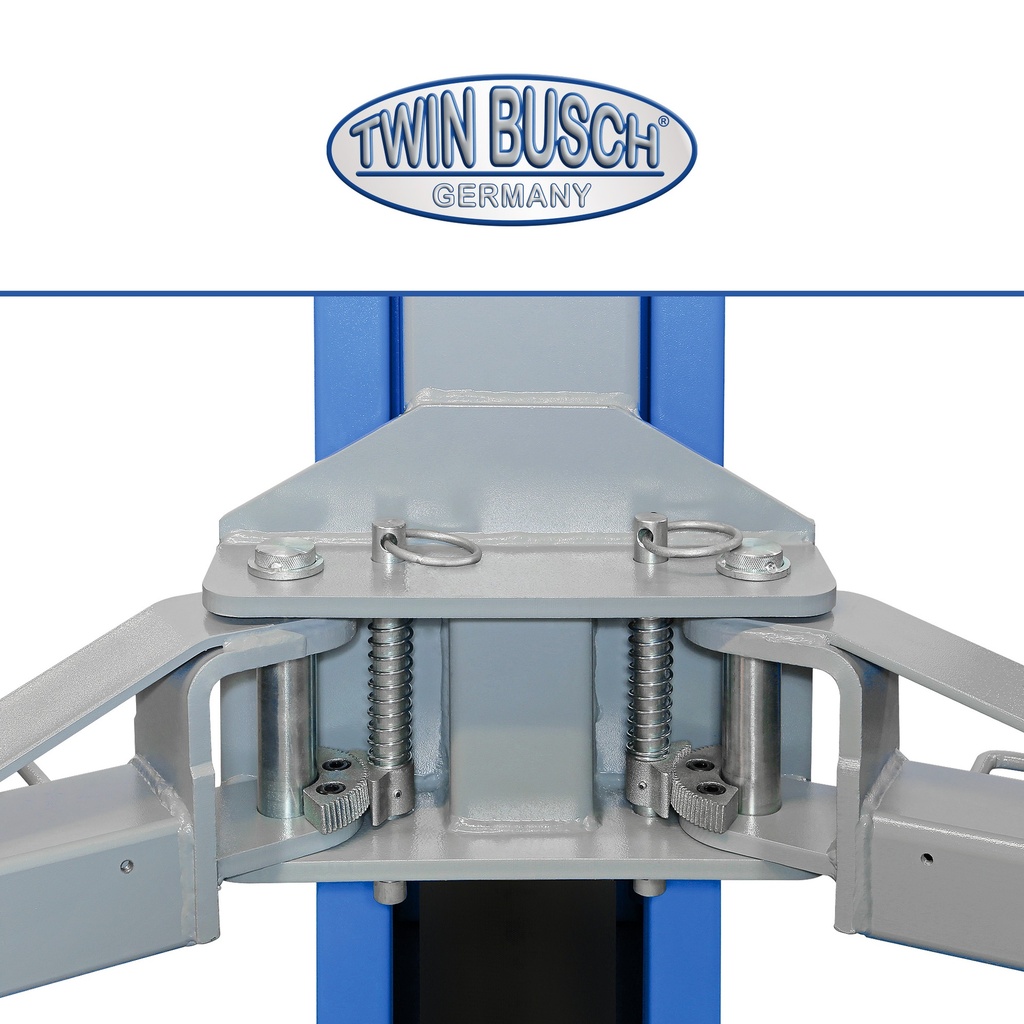

- Automatic arm locking system
- Synchronisation using steel cables

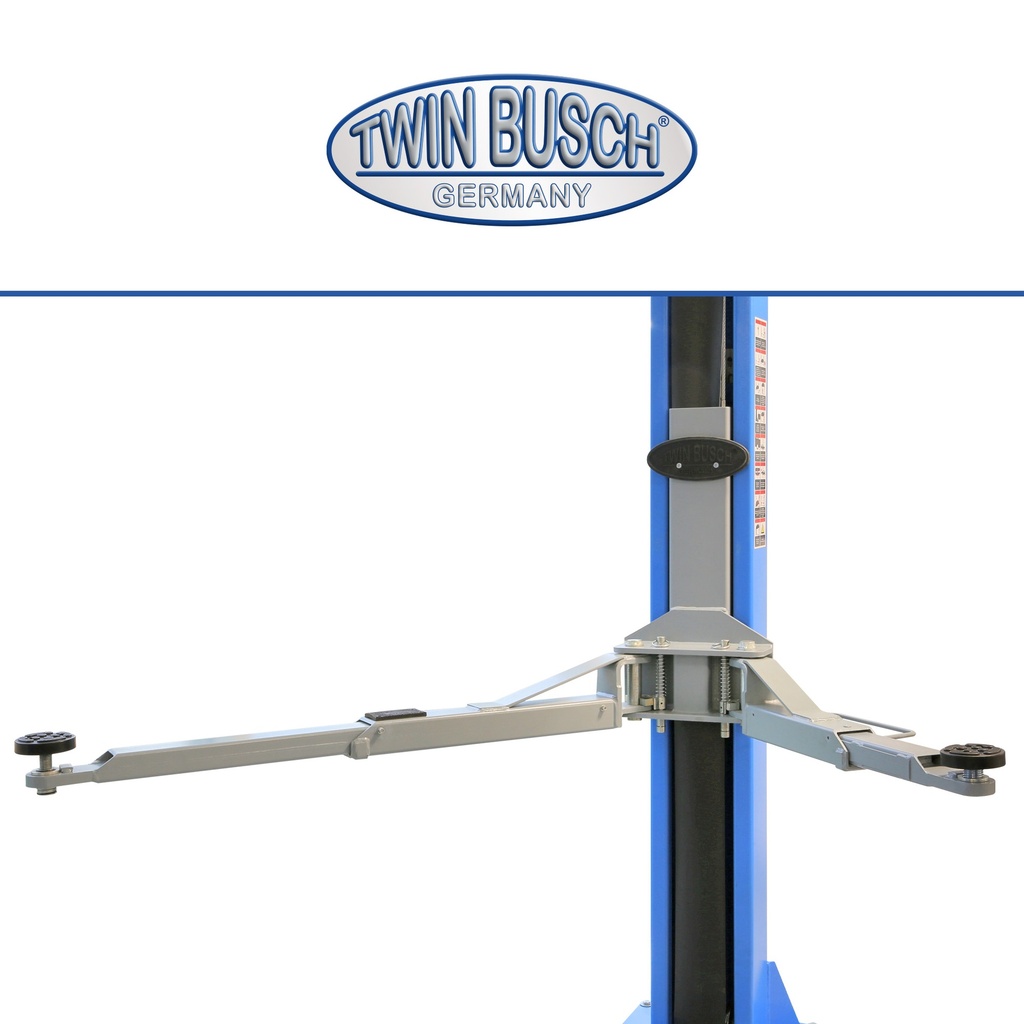

- 2 stage telescopic arms
- Lift height 3900 mm

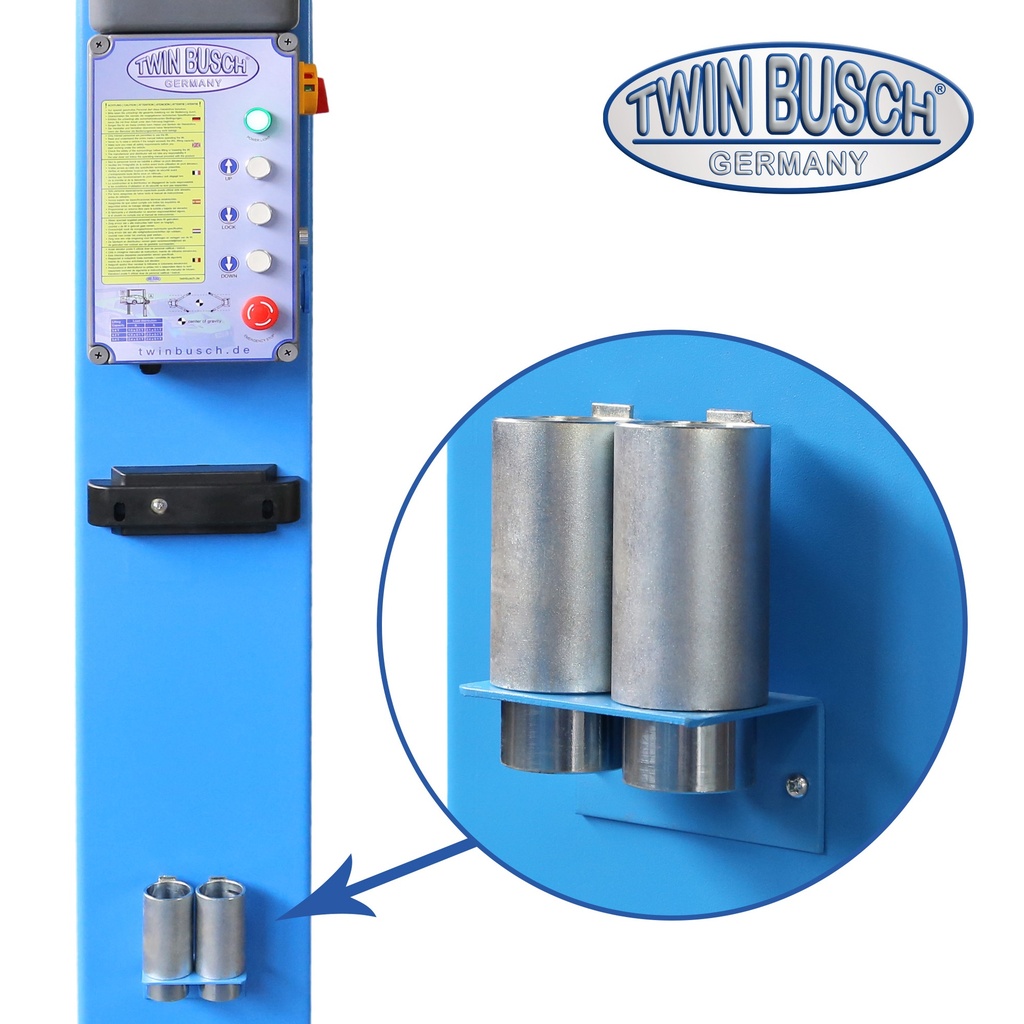

- Practical storage bracket for two extension adapters

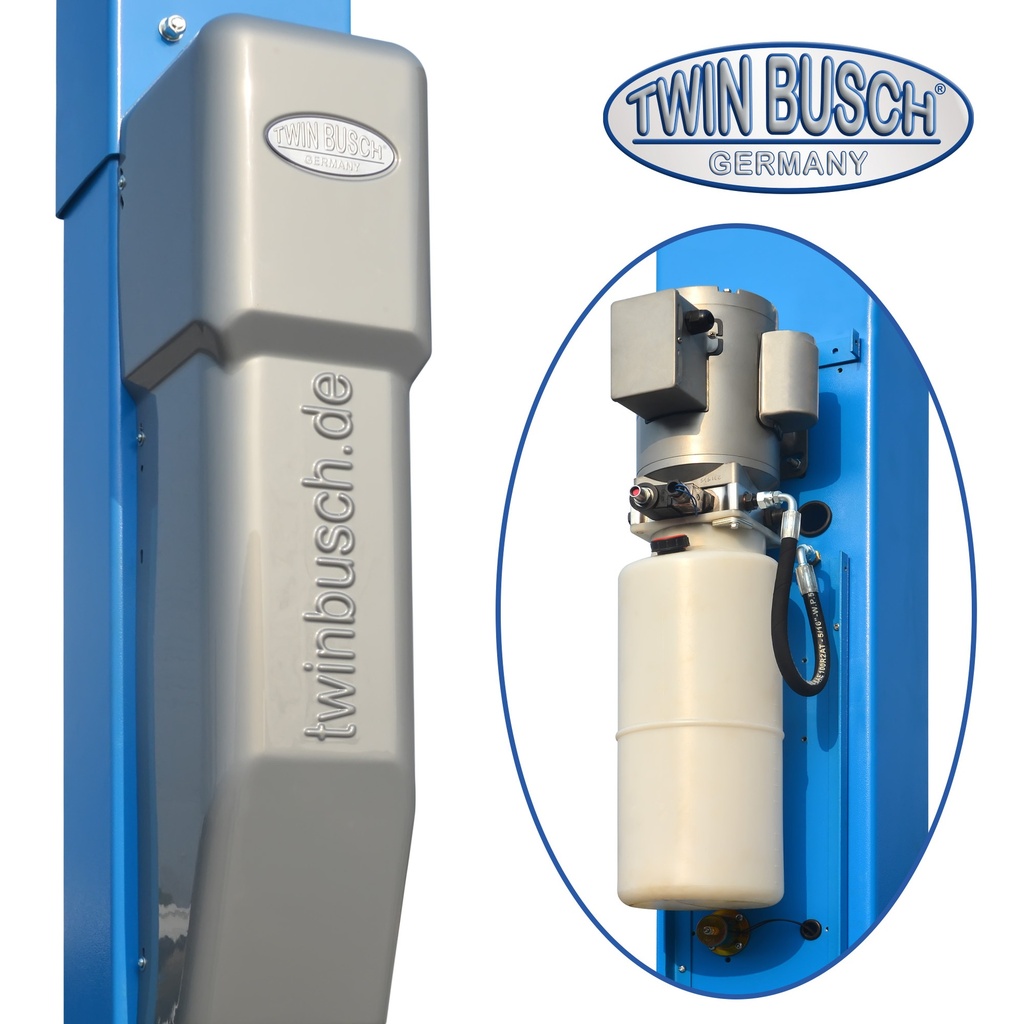

- New: motor cover included (Stylish design, dust protection and noise reduction)
Technical data
Lifting capacity
3600 kg
Max lifting height
1900 mm / Ad 2010
Low lifting point
96 mm
Lifting and lowering time (approx.)
45/30 seconds
Power supply
400 V / 3 phases
Motor power
2,2 kW
Fuse protection
16 A / type C
Weight
670 kg
Lifting height (Lifting pad screwed out)
1900 mm
Lifting height (Lifting pad screwed out)
1960 mm
Lifting height (Lifting pad+adapter screwed out)
2060 mm
Safety release
Automatic

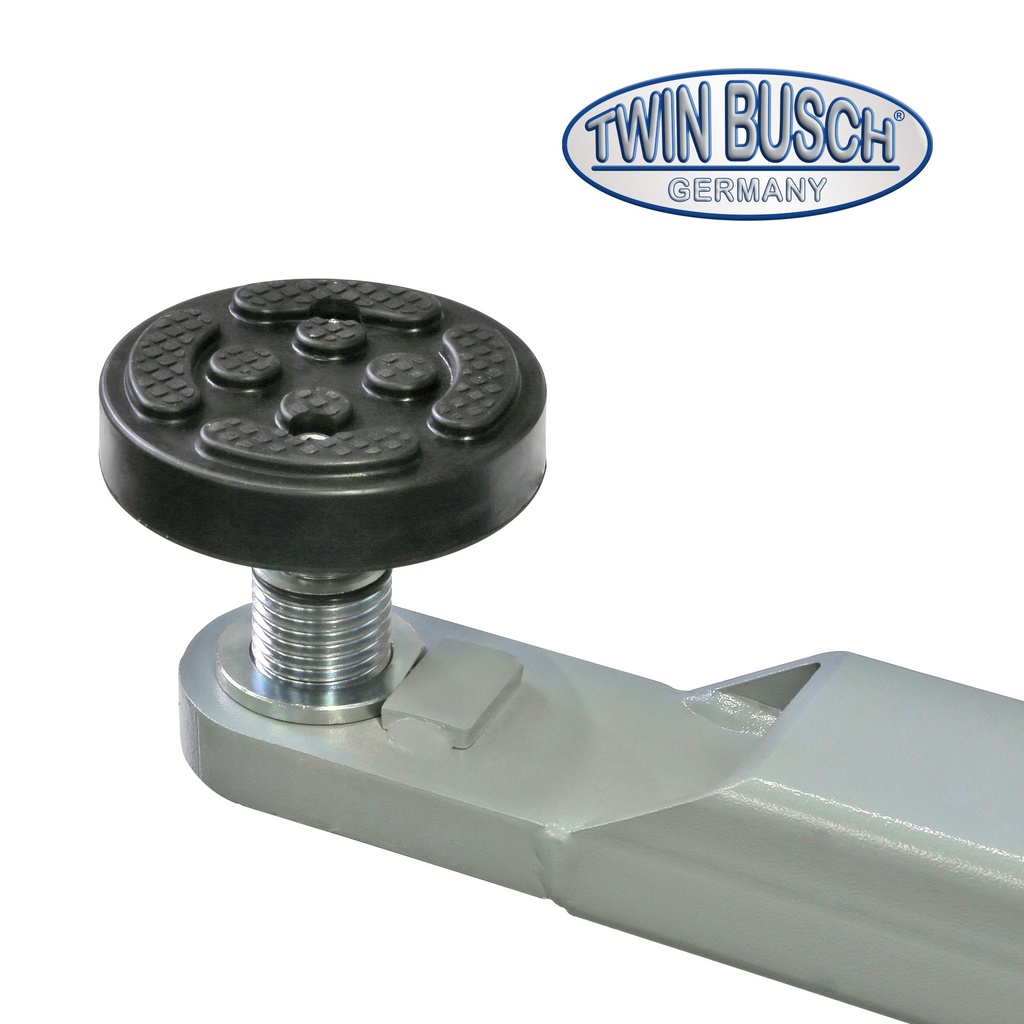

Lifting pads
2 speed
Transporter adapters (4 pieces)
included
High-quality powder coating
Yes
Column chain guard
included
Motor cover
included

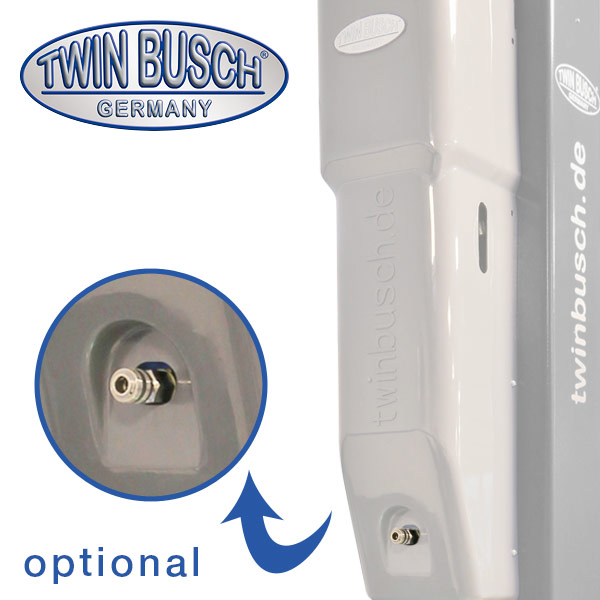

Air kit
optional
Anti-lift-up button
Yes

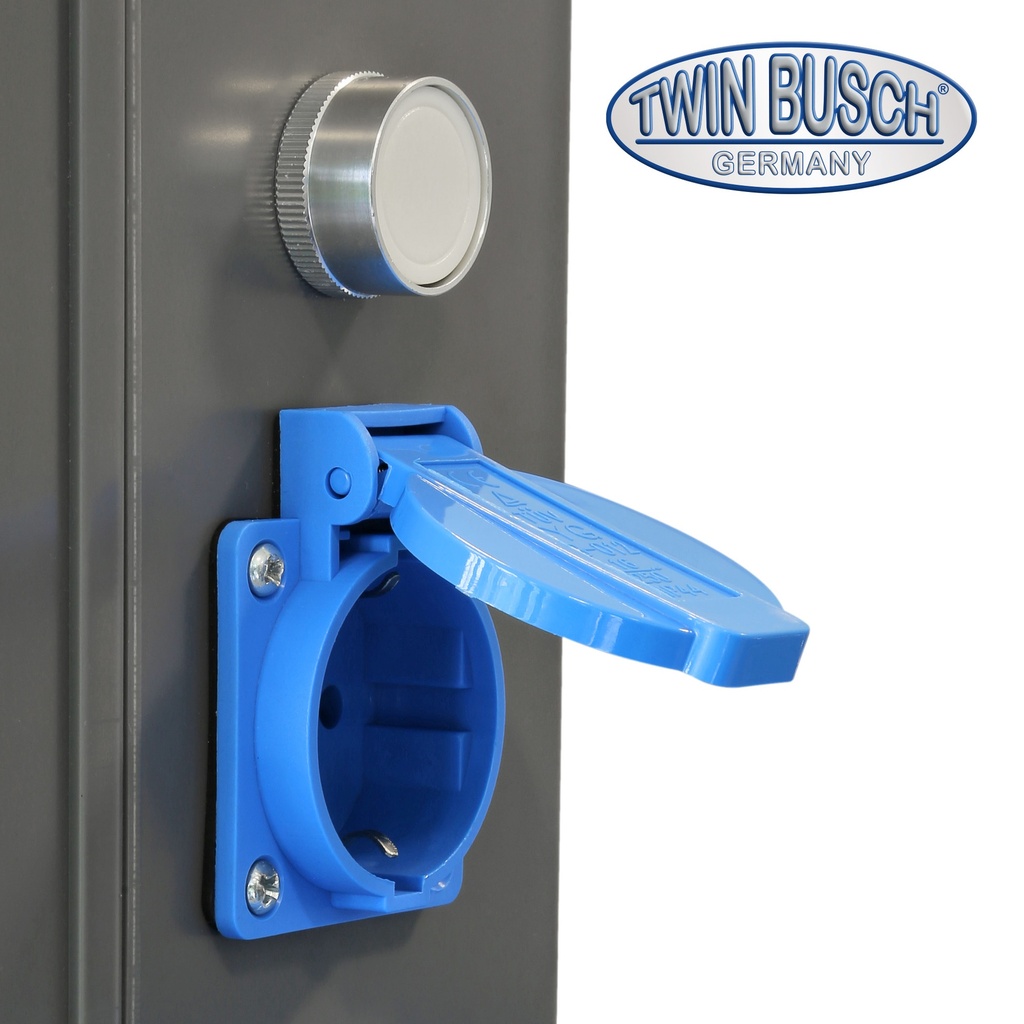

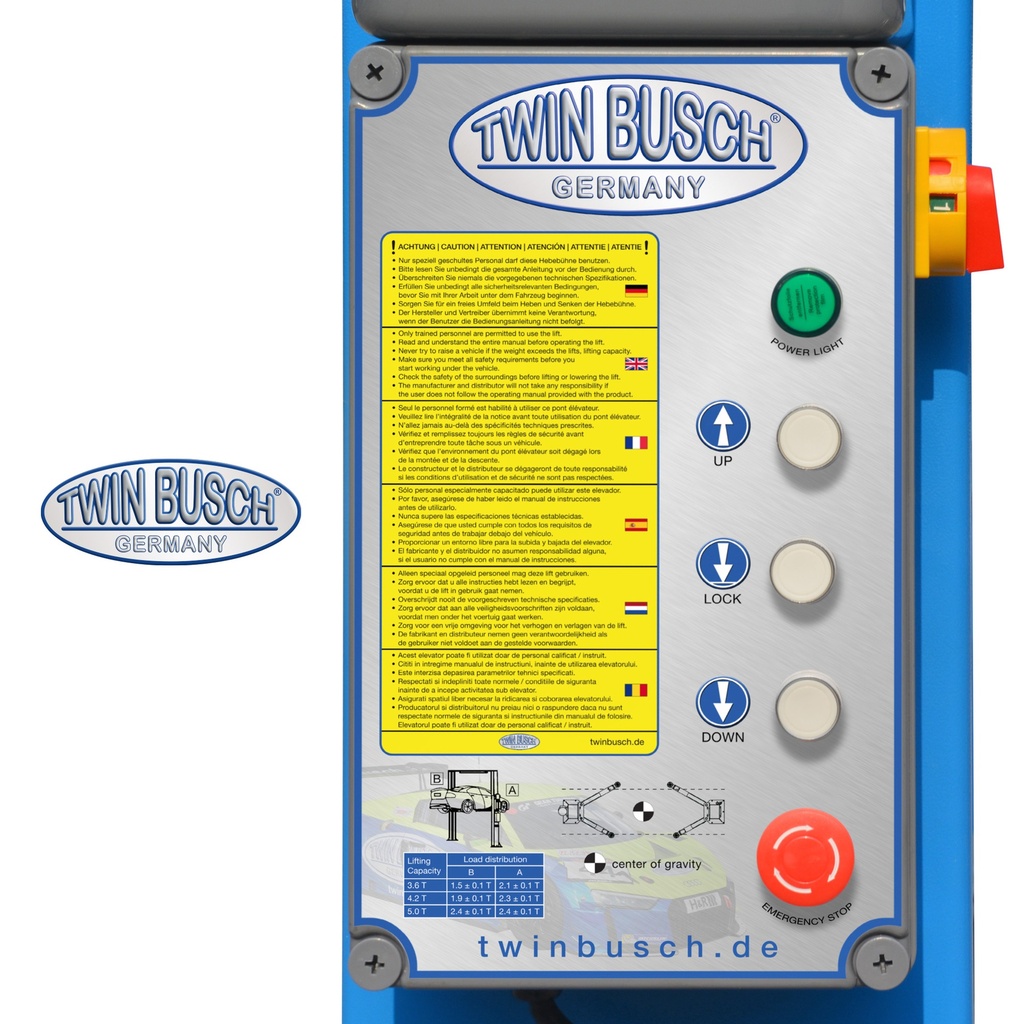

230 V socket placed in the control box
Yes
Floor plate
clear floor
Overall width / base plate (without motor)
3436 mm
Post height
3900 mm
Required concrete depth (Special solution)
200 mm

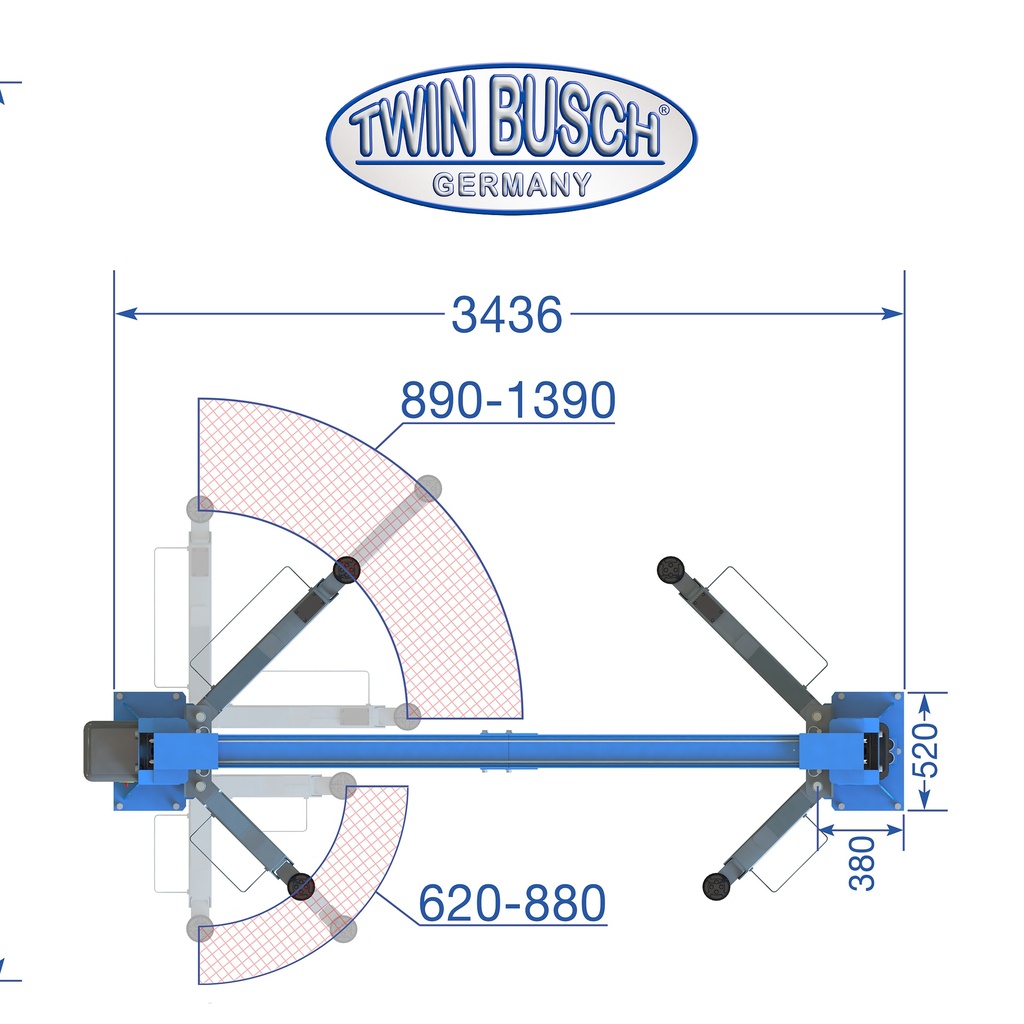

Lifting arm length / short
620-880 mm
Lifting arm length / long
890-1390 mm
Width between columns
2850 mm
Maximum height
3775 mm
Maximum width
2574 mm
Colour
RAL 5015 (Blue), RAL 7000 (Grey)
TW236PEB3.9 - Overview

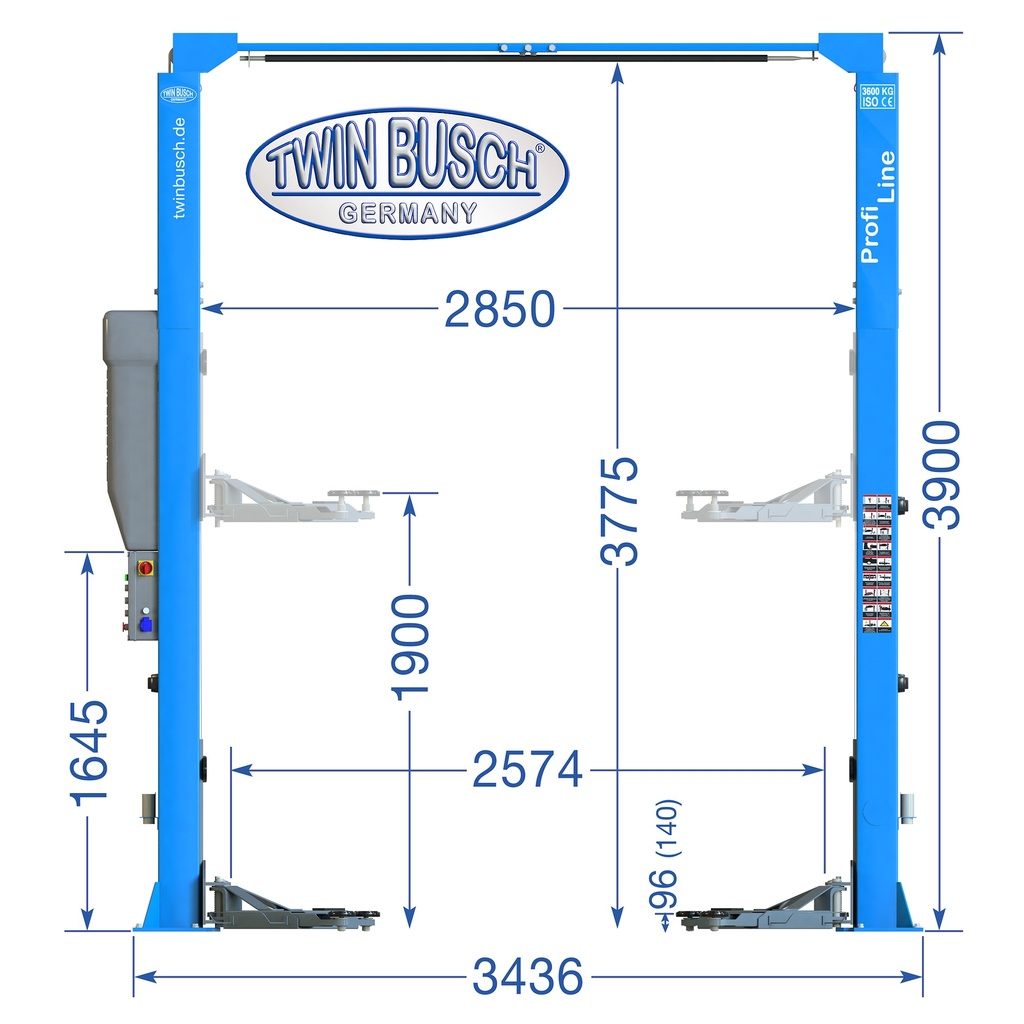

Product dimensions
Vehicle type / Wheelbase
This graphic is for information purposes only!
Contents of the delivery
- Two-post lift incl. power unit and motor cover
- Height adapter
- Bracket for extension adapter
- 10 x heavy-duty M16 anchor bolts (16 mm drill bit required)
- Door stop protection
- Operating and maintenance instructions
- 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.
Shipping dimensions and weight
Video about the expedition
Specifications
| Vehicle type | Light vehicles, SUV |
| Lifting capacity (tons) | 3.6 |
| Base type | overhead |
| Arm type | straight |
| Power supply | 380 V |
