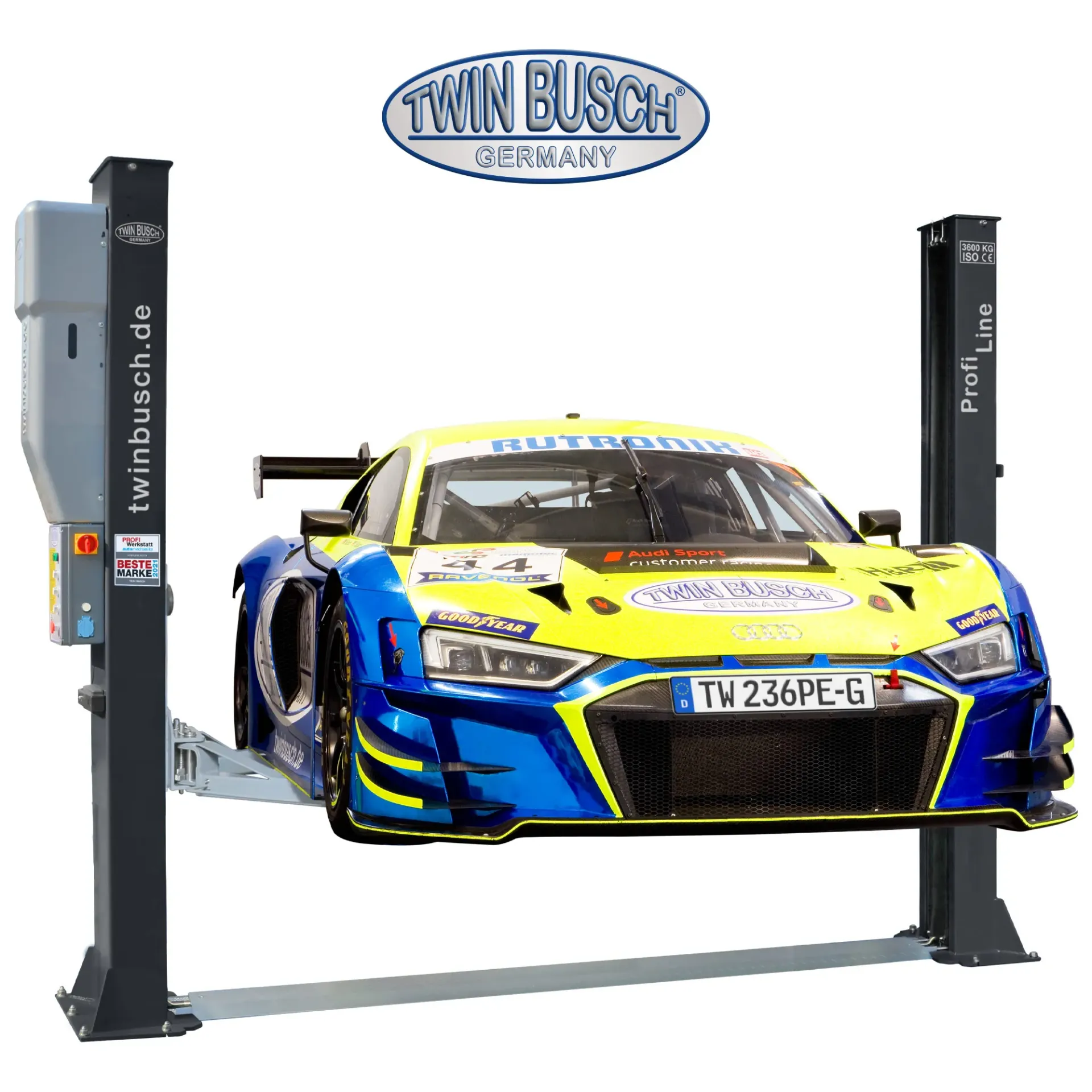

2-post lift 3.6 tonnes - Profi-Line. The Profi-Line lift is the perfect model for beginners and professionals alike, with automatic safety locks and high-quality powder coating.
With automatic locking and unlocking of the safety latches, adjustable rotating supports, high-quality powder coating and an extremely flat floor plate (only 30 mm). The Profi-Line lifts everything from Smart cars to vans.
New: anti-lift up button , for targeted lowering of the lift without prior automatic lifting. And a practical 230 V socket directly on the control box.
Product presentation
Assembly
Product features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- New: Anti-lift-up button
- New: 230 V socket
- Rotating lifting plates with thread protection
- Emergency lowering in the event of a power cut
- High quality special profile supporting columns
- Double jack for strong, stable lifting
- Automatic arm locking system
- Synchronisation using steel cables
- High-quality powder coating
- Extra-flat telescopic lift arms for sports cars
- Practical storage holder for two extension adaptors
- New: motor cover included (Stylish design, dust protection and noise reduction)
Technical data
TW236PE - Overview
Control unitThe convenient control unit (protection class IP 54 and 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic circuit breaker for safe working. |
E-motorPowerful hydraulic unit with high-quality aluminium pump, overpressure safety valve and an industrial-quality electric motor, protected behind a robust motor cover. |
Arm-locking systemThe support arm locking device and the mechanical synchronisation control using steel cables ensure maximum safety. |
Supporting armsFlat, telescopic and slanted support arms for sports cars. The asymmetrical design of the support arms allows the doors to be opened particularly wide. |
Door stop protectionThe door stop protects your car doors by preventing them from slamming shut unintentionally. |
Flat drive-over plateThe flat drive-over plate of the post lift is only 30 mm high. |
2-stage turntableThe post lift has 2-stage height-adjustable turntables with a low swivel height of just 96 mm. |
Anti-Lift-Up-ButtonThe anti-lift-up button allows the post lift to be lowered precisely without it being raised automatically first. |
230 V socketA handy 230 V socket is located directly on the control box for added convenience. |
Extension adaptersOn each outer side of the column there is a practical holder for plug-in adapters, which offers space for the safe storage of two plug-in adapters each. |
Accessories TW236PE-AIRThe optionally available Air-Kit TW236PE-AIR is integrated into the motor cover above the control unit and serves as an additional compressed air connection. |
Accessories TWLED-2The LED illumination TWLED-2 (optionally available) consists of 4 flexible and magnetic LED light bands / LED strips, a transformer, power and connection cables, a remote control and the necessary assembly and installation material. These LED lights provide a pleasant light in any colour and brightness. |
Accessories TW242-GPVThe base plate reinforcement set TW242-GPV (optionally available) is to be used for concrete strengths between 150 - 200 mm and reduces the usual minimum concrete strength by 50 mm. |
Product dimensions
Vehicle type / Wheelbase
This graphic is for information purposes only!
Contents of the delivery
- Two-post lift, including feed unit
- Extension bolts (10 pieces)
- Support for extension adapter
- Door stop protection
- Instructions for use and care
- 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.
Shipping dimensions and weight
Video about the expedition
Specifications
| Type de véhicule | Véhicules légers, SUV |
| capacité de levage | 3.6 |
| Type d'embase | au sol |
| Type de bras | droits |
| alimentation | 380 V |
