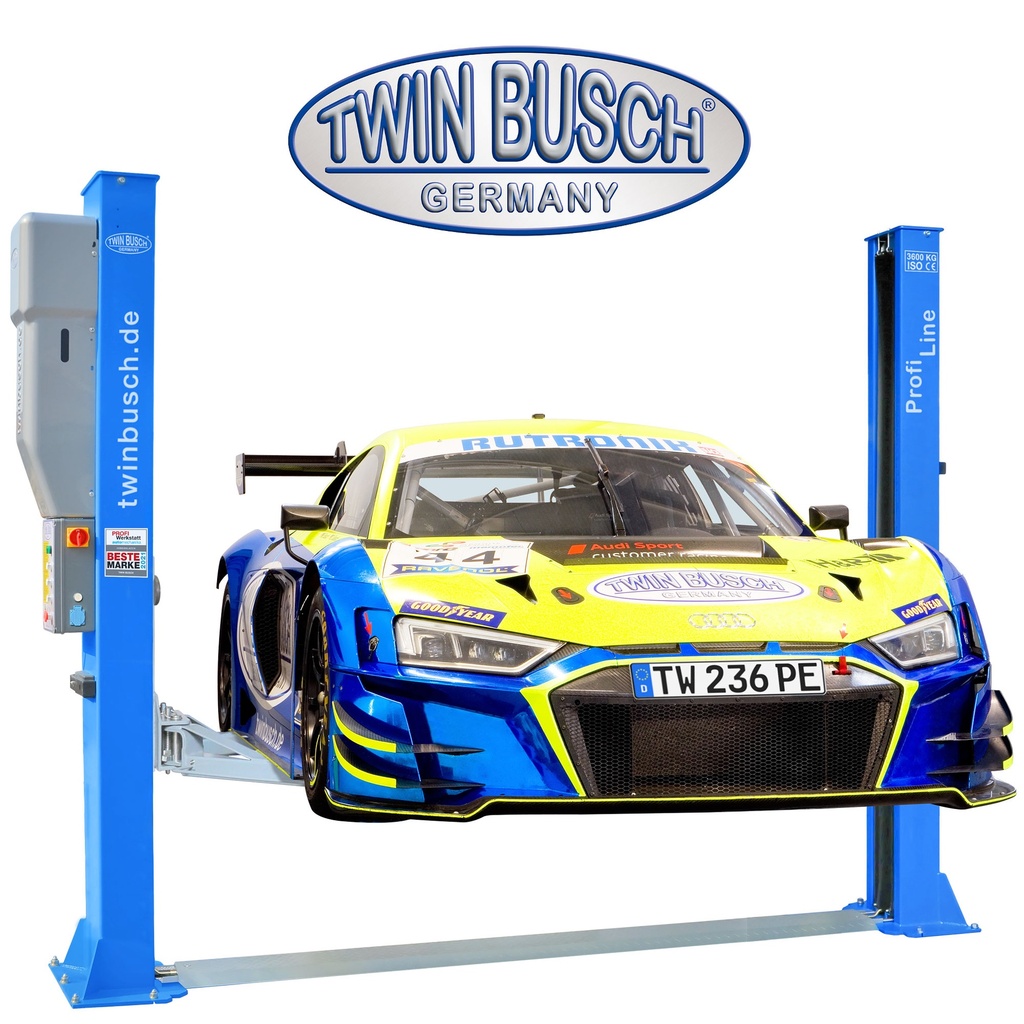

2-post lift 3.6 tonnes - Profi-Line. The Profi-Line lift is the perfect model for beginners and professionals alike, with automatic safety locks and high-quality powder coating.
With automatic locking and unlocking of the safety latches, adjustable rotating supports, high-quality powder coating and an extremely flat floor plate (only 30 mm). The Profi-Line lifts everything from Smart cars to vans.
New: anti-lift up button , for targeted lowering of the lift without prior automatic lifting. And a practical 230 V socket directly on the control box.
Product presentation
Assembly
Product features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- New: Anti-lift-up button
- New: 230 V socket
- Rotating lifting plates with thread protection
- Emergency lowering in the event of a power cut
- High quality special profile supporting columns
- Double jack for strong, stable lifting
- Automatic arm locking system
- Synchronisation using steel cables
- High-quality powder coating
- Extra-flat telescopic lift arms for sports cars
- Practical storage holder for two extension adaptors
- New: motor cover included (Stylish design, dust protection and noise reduction)
Technical data
Lifting capacity
3600 kg
Maximum lifting height
1900 mm / Ad 2080
Low lifting point
96 mm
Lifting and lowering time (approx.)
45/30 seconds
Power supply
400 V / 3 phases
Engine power
2,2 kW
Fuse protection
16 A / type C
Weight
630 kg
Lifting height (lifting pad screwed in)
1900 mm
Lifting height (lifting pad screwed in)
1960 mm
Lifting height (lifting pad + screwed adapter)
2060 mm
Triggering the safety system
Automatic
Lifting cushions
2 speeds
Carrier adapters
included
High-quality powder coating
Yes
Protection of the column chain
included
Motor cover
included
Air kit
optional
Anti-lift button
Yes
230 V socket in control box
Yes
Floor plate
Yes (30 mm)
Overall width / base plate (without motor)
3436 mm
Post height
2824 mm
Depth of concrete required (special solution)
200 mm
Lifting arm length / short
620-880 mm
Lifting arm length / long
890-1390 mm
Width between columns
2850 mm
Maximum height
-
Maximum width
2574 mm
Colour
RAL 5015 (Blue), RAL 7000 (Grey)
TW236PE - Overview
Product dimensions
Vehicle type / Wheelbase
This graphic is for information purposes only!
Contents of the delivery
- Two-post lift, including feed unit
- Extension bolts (10 pieces)
- Support for extension adapter
- Door stop protection
- Instructions for use and care
- 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.
Shipping dimensions and weight
Video about the expedition
