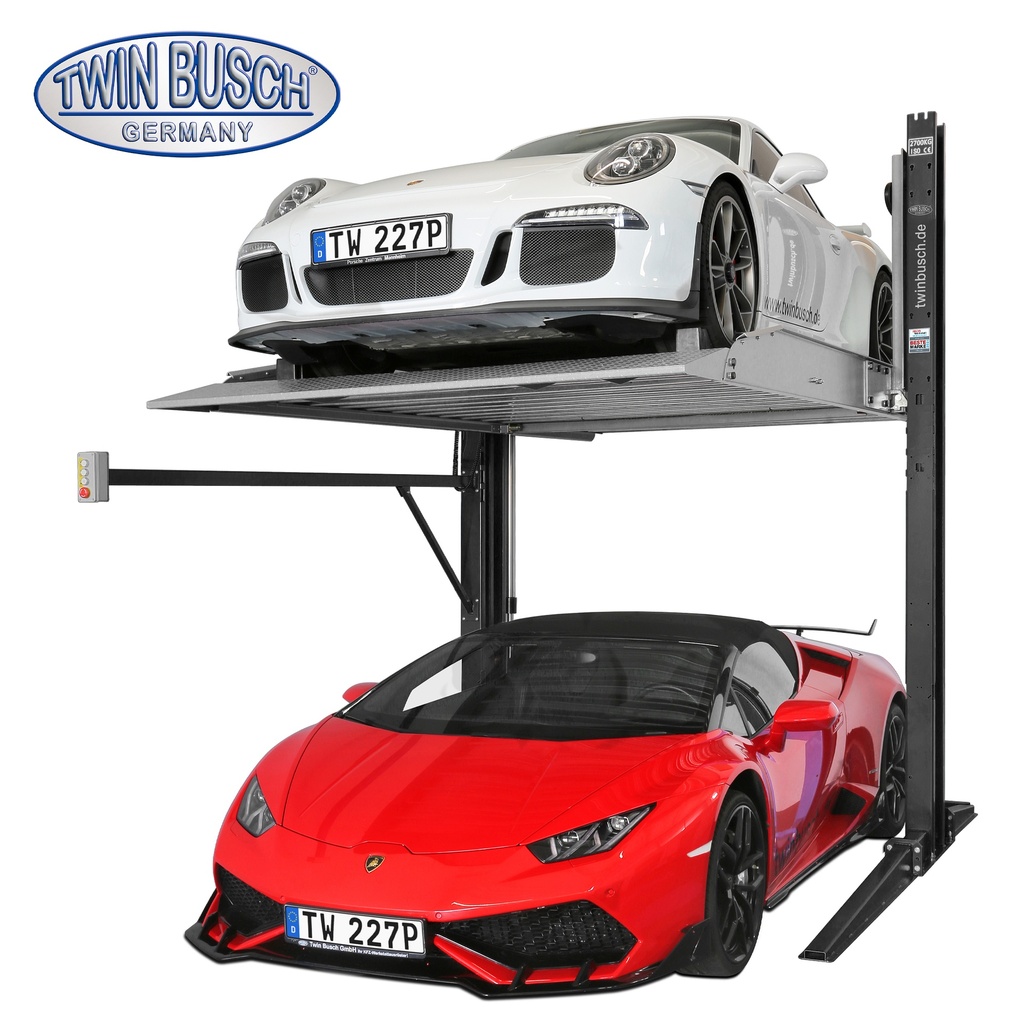

2 column 2.7 tonne parking lift - electromagnetic - anthracite
The practical two-column parking lift with electromagnetic safety release. Space-saving construction. Using only two posts, this lift takes up less space than a conventional four-post parking lift. The lift can be extended to the left or right as many times as required.
Easy lifting and lowering using the front-mounted control panel.
With a maximum lift height of 2091 mm and a maximum load weight of 2700 kg, this two-post parking lift is ideal for large, heavy vehicles such as large SUVs or a VW T6, for example.
The sturdy galvanised platform offers protection against oil and dirt damaging the vehicle parked underneath.
Product presentation
Assembly
Features
- 1A Quality built with CE certificate
- Manufactured in accordance with ISO 9001.
- Automatic safety lock release, no compressed air required
- Safety locks secure the lift for extremely long periods.
- Fully enclosed galvanised platform
- High quality special profile supporting posts
- Hydraulic lowering valve
- Two hydraulic cylinders for powerful lifting / lowering
- Roll off protection
- High quality powder coating
- Acustic warning signal
Technical Data
Lifting capacity
2700 kg
Lifting height max.
120 - 2220 mm
Platform length (Total)
4135 mm
Platform width
2100 mm
Lifting, lowering time (approx.)
45/30 seconds
Power supply
230V
Motor power
2,2 kW
Fuse protection
16 A / type C
Weight (approx.)
1150 kg
Colour
RAL 5015 (Blue), RAL 7000 (Gray)
Delivery contents
- Lift incl. Power unit
- English instruction manual
- Examination book and CE-Certificate
