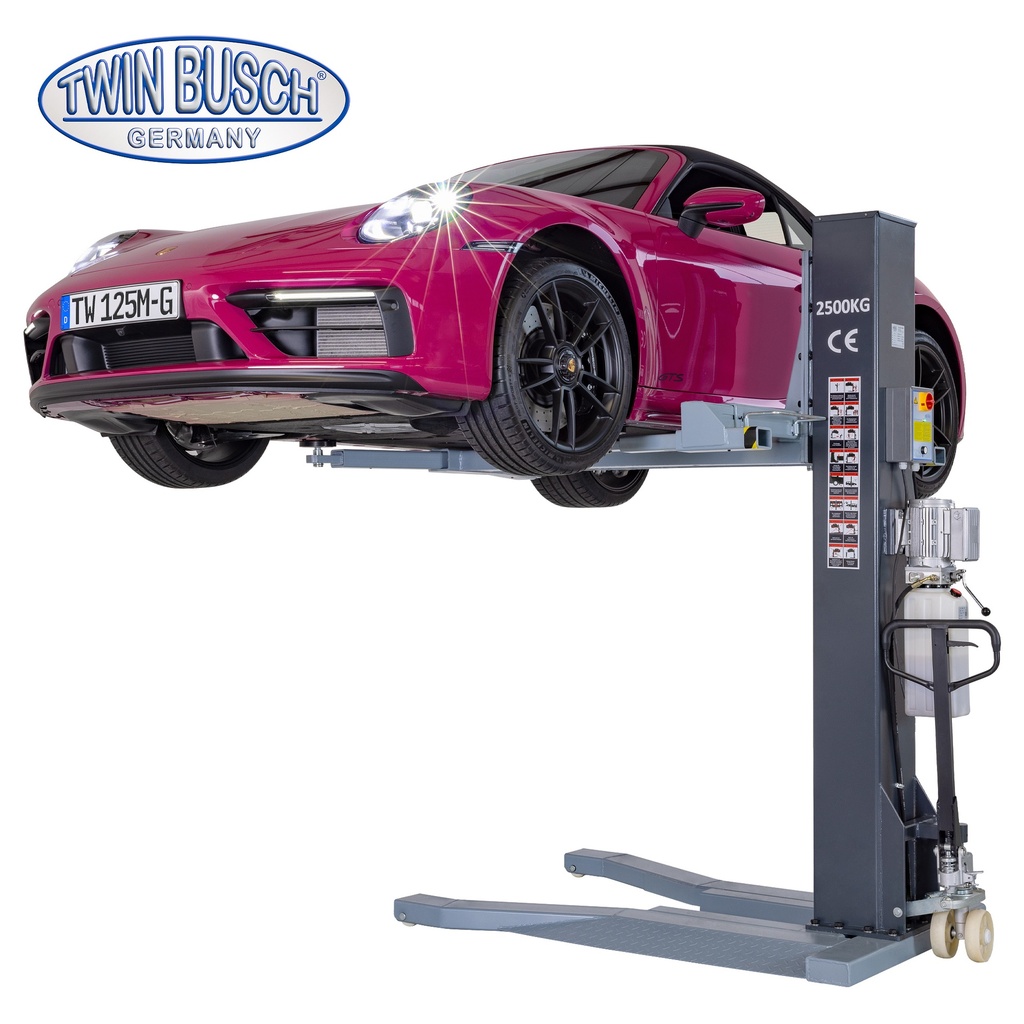

2.5-tonne single-post car lift – Mobile
The new ultra-low TW125M Ultra model is just 85 mm high and has a clearance between the arms of 98 mm This makes it the lowest single-post lift on the market. Ideal for small spaces, it can be moved as easily as a hand pallet truck and can be installed on any flat, sufficiently sturdy floor.
Product overview
Assembly
g
Features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- Hydraulic cylinder for powerful lifting and lowering
- Adjustable lifting pads
- Telescopic lifting arm
- Mechanical safety locking system
- Manual release of the safety lock
- Rolled special-section columns
- Aluminium motor, 24 V – Control unit
- Column chain guard
Technical data
Lifting capacity
2500 kg
Maximum lifting height
1830-1930 mm
Low lifting point
98 mm
Lifting and lowering times (approx.)
35/30 seconds
Power supply
230 V
Engine power
2,2 kW
Fuse protection
16 A
Weight
720 kg
Colour
RAL 5015 (Blue), RAL 7000 (Grey)
TW125M - Overview
Product dimensions
Vehicle type / Wheelbase
This chart is provided for information purposes only!
Contents of the delivery
- Single-post car lift with power unit
- Instructions for use and care
- 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.
Dimensions and weight
