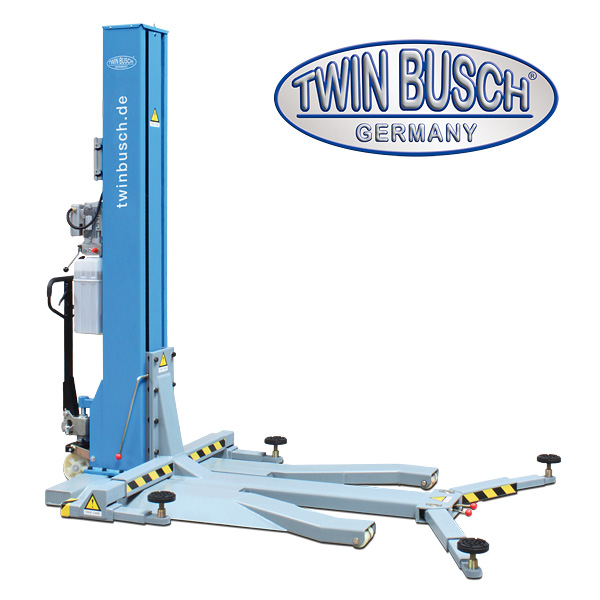

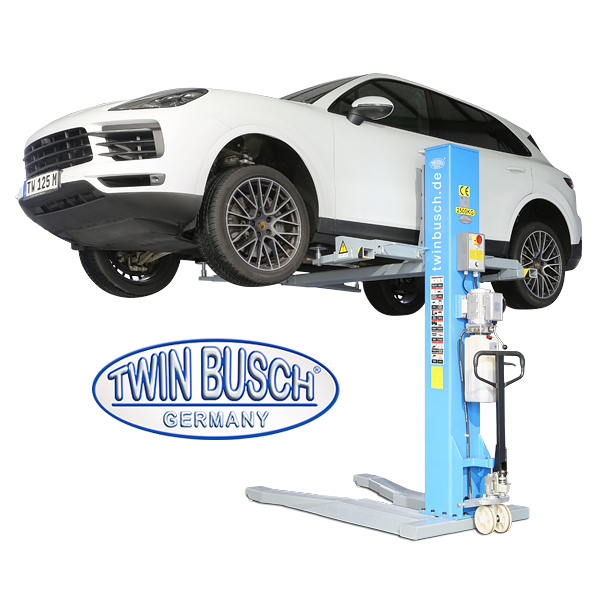

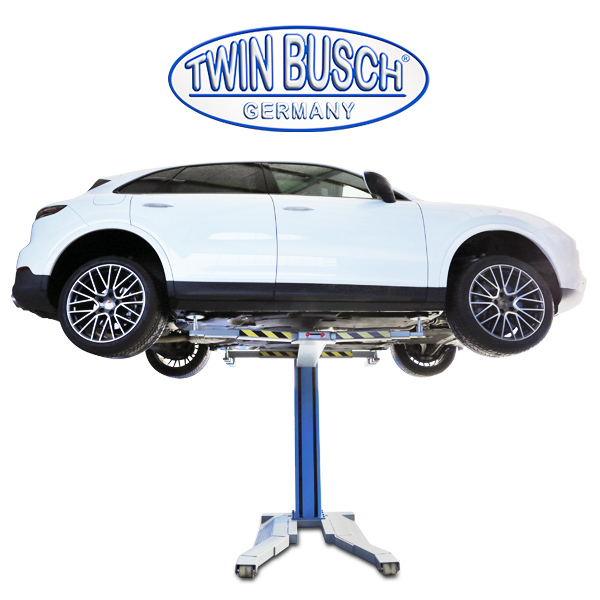

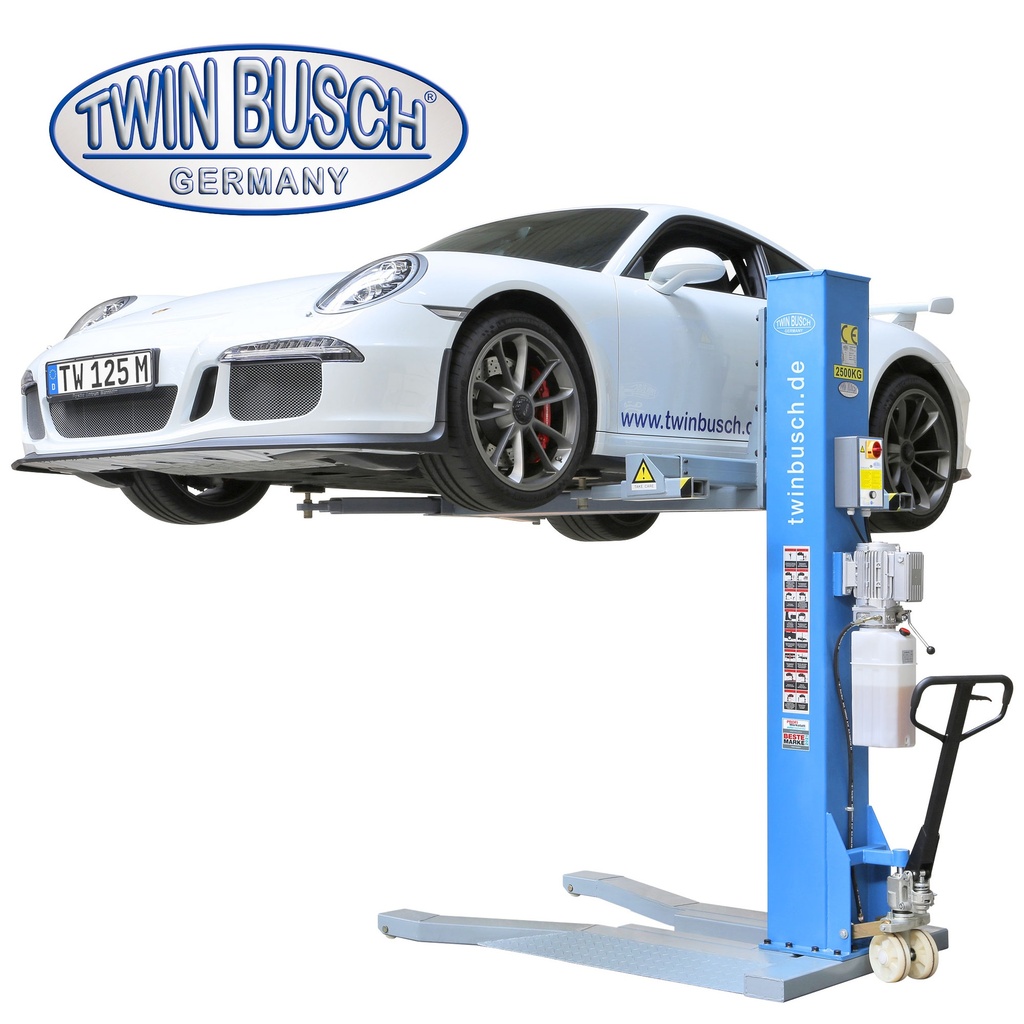

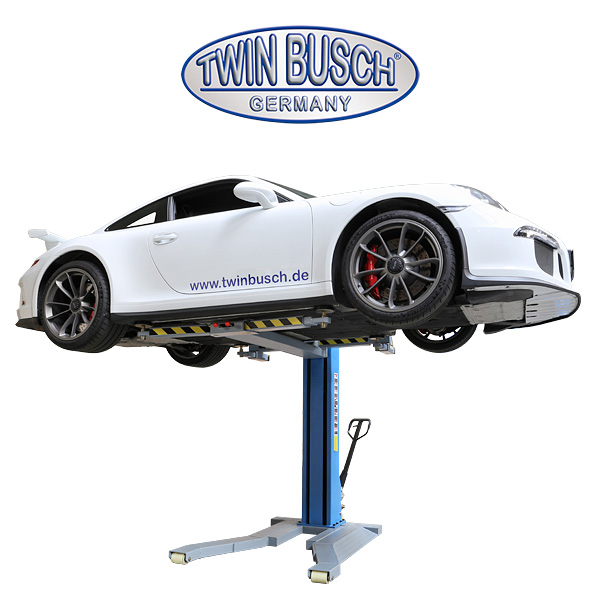

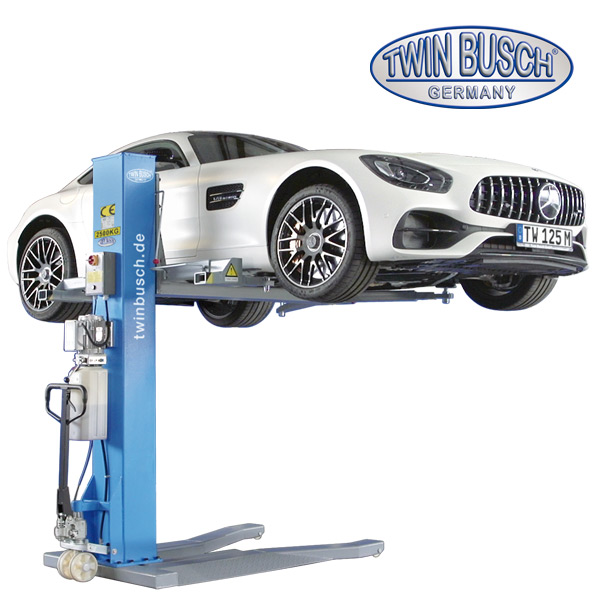

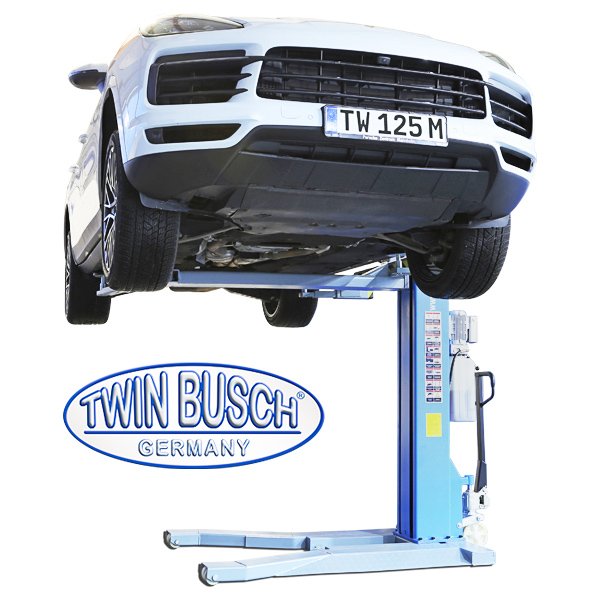

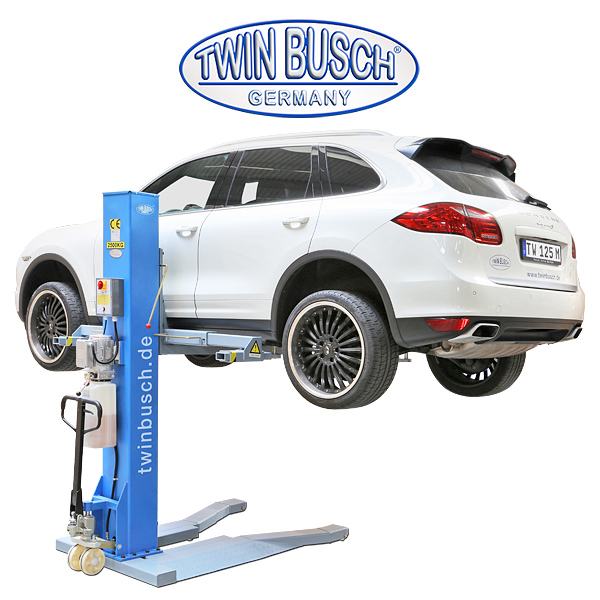

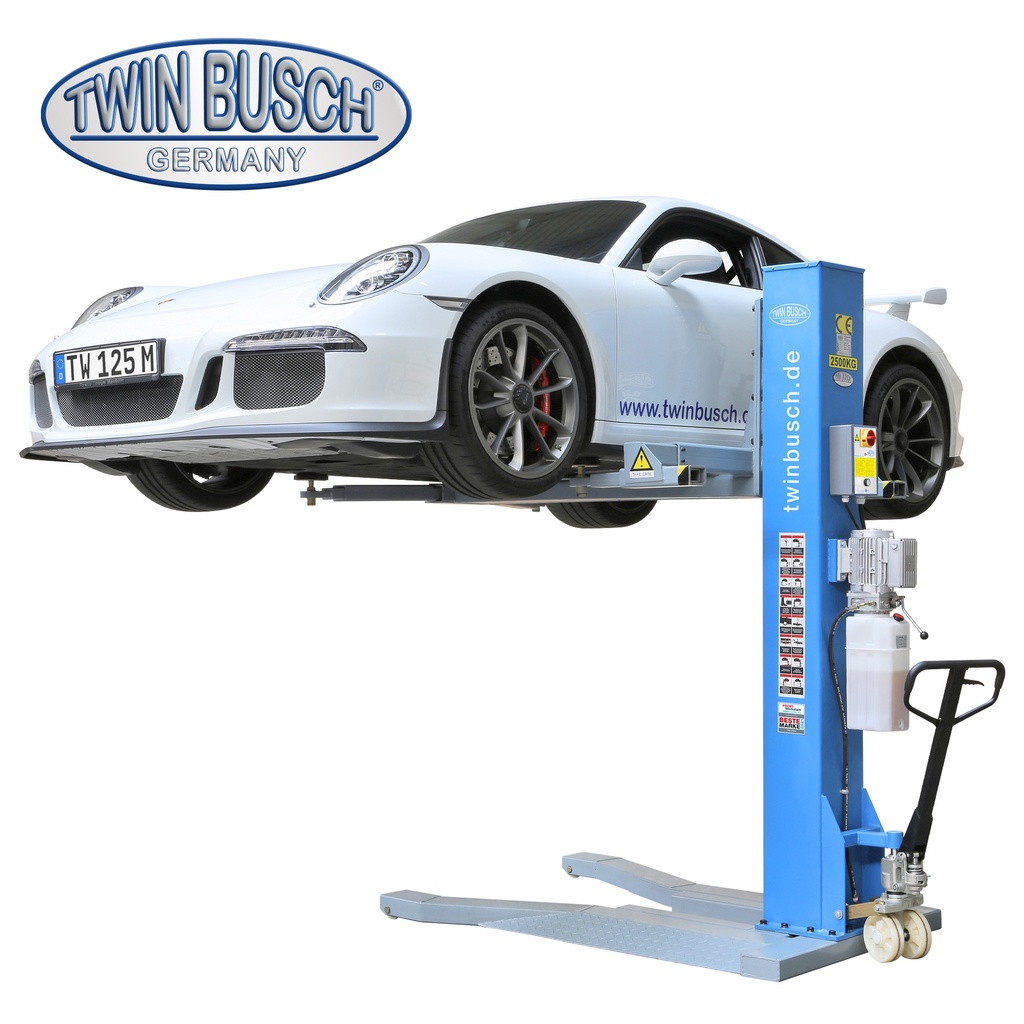

2.5 tonne single column lift - Mobile

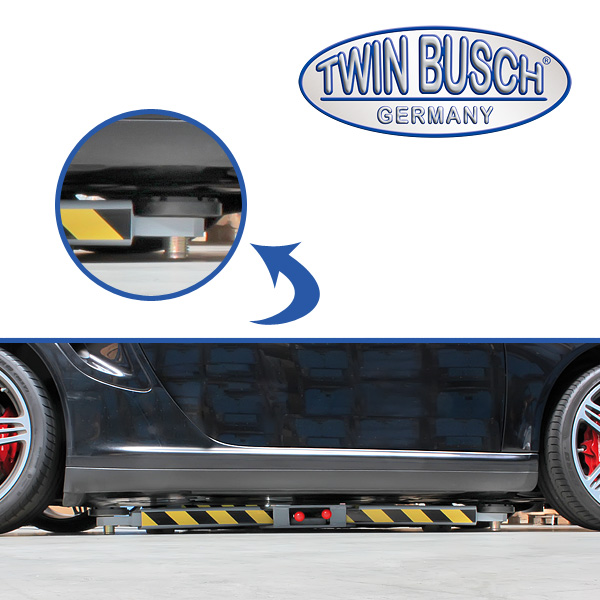

The new ultra-low model TW125M Ultra has a height of just 85 mm and a free space between the arms of98 mm .
It is therefore the lowest single-column lift of the market.

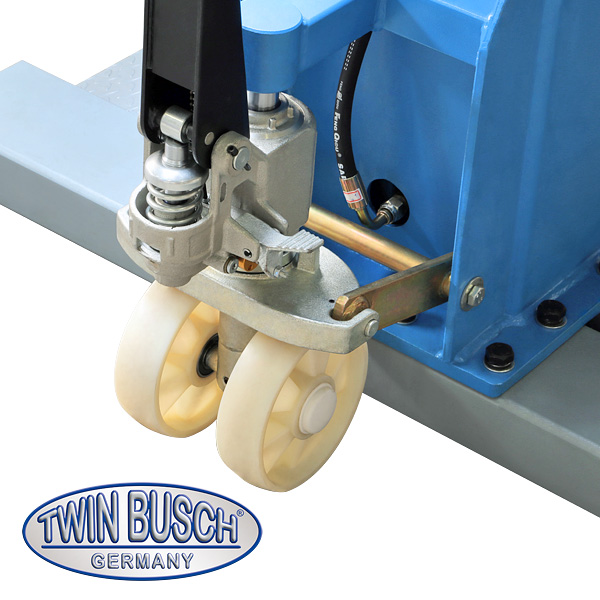

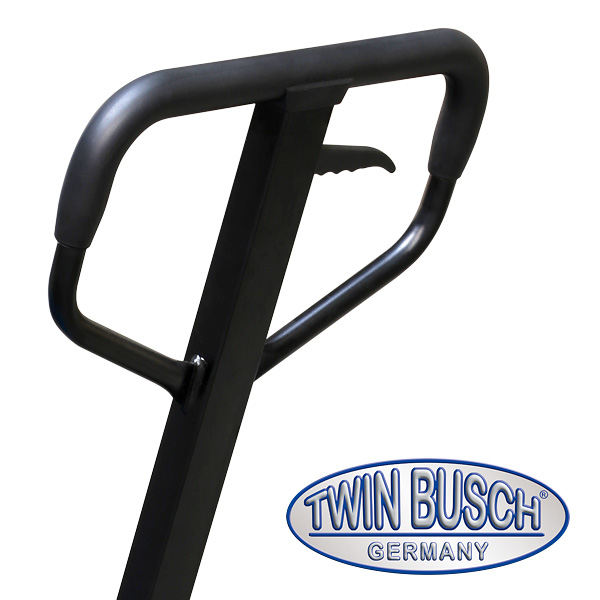

Ideal for small spaces, it can be moved as easily as a manual forklift and can be installed on any flat, solid floor.
Product presentation
Assembly

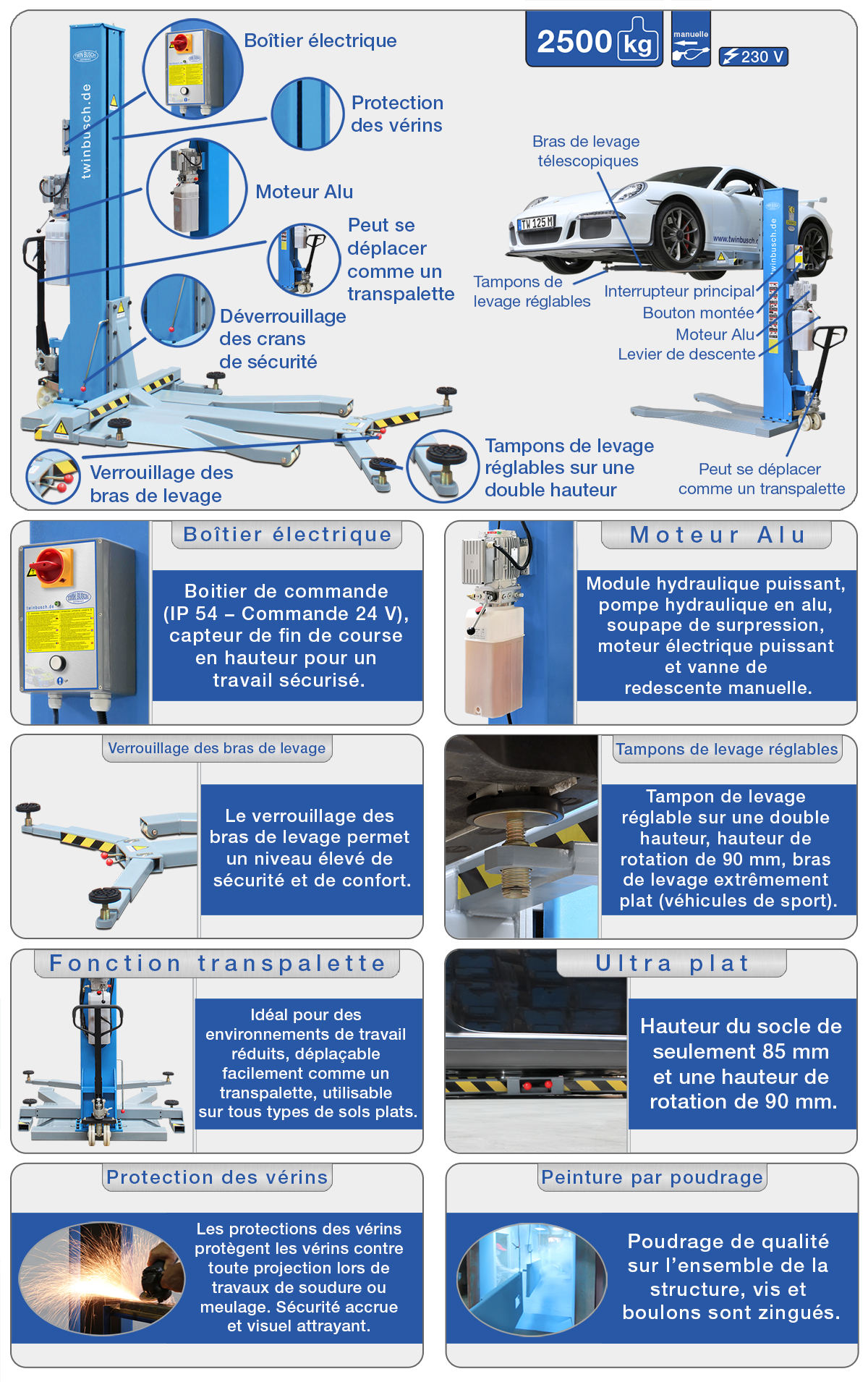

Features
- 1A Quality built with CE certificate
- Manufactured according to ISO 9001
- Hydraulic cylinder for powerful lifting and lowering

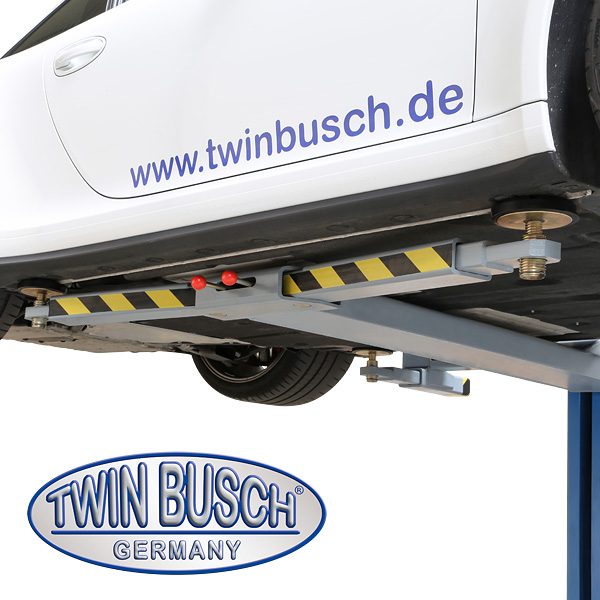

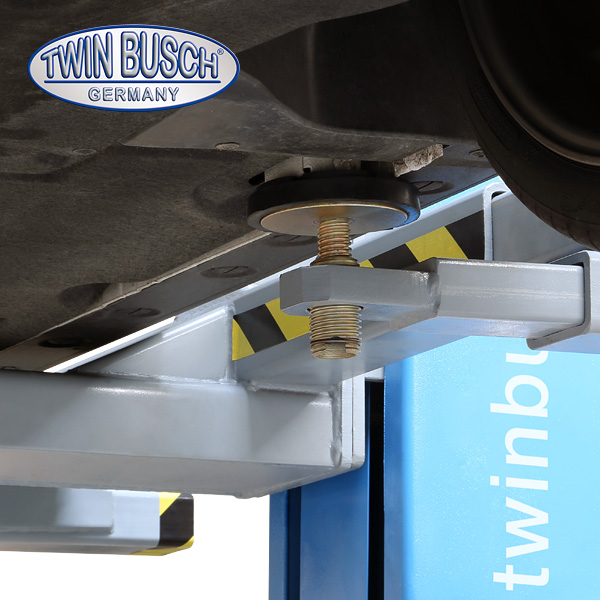

- Adjustable lifting pads

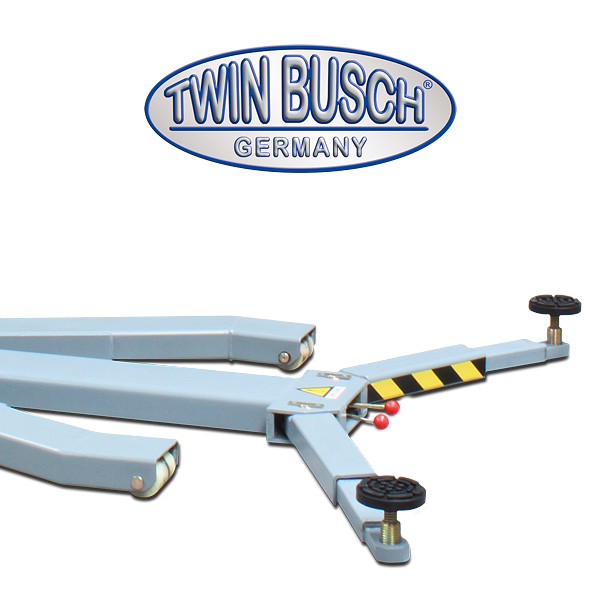

- Telescopic lifting arm

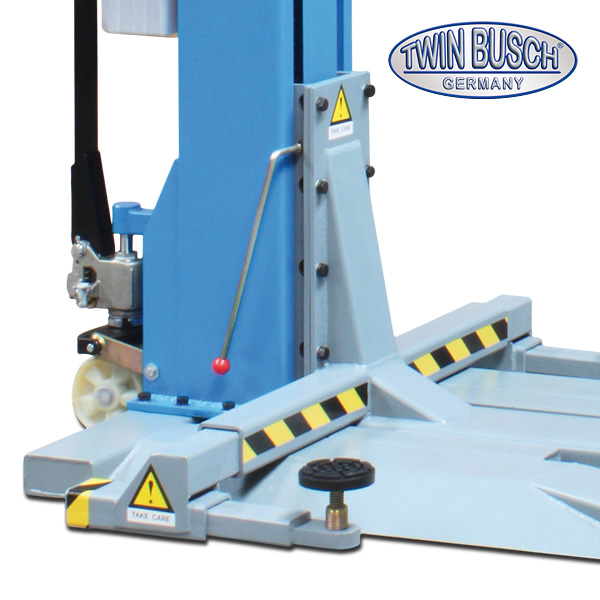

- Mechanical safety locking system
- Manual release of the safety lock
- Columns with special laminated section

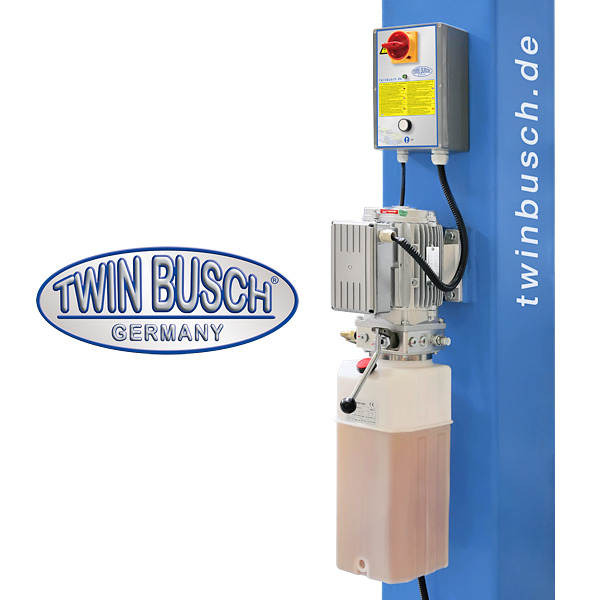

- Aluminium motor with 24 V - Control box
- Column chain guard
Technical data
Lifting capacity
2500 kg
Maximum lifting height
1830-1930 mm
Low lifting point
98 mm
Lifting and lowering time (approx.)
35/30 seconds
Power supply
230 V
Engine power
2,2 kW
Fuse protection
16 A
Weight
720 kg
Colour
RAL 5015 (Blue), RAL 7000 (Grey)
TW125M - Overview
Product dimensions
Vehicle type / Wheelbase
This graphic is for information purposes only!
Scope of delivery
- Single column lift with power unit
- Instructions for use and care
- 1A Quality built with CE certificate
- Oil is not included – it can be ordered as an optional extra
- Car not included
- The lift is supplied in a transport frame.
Shipping dimensions and weight
Video about the expedition
