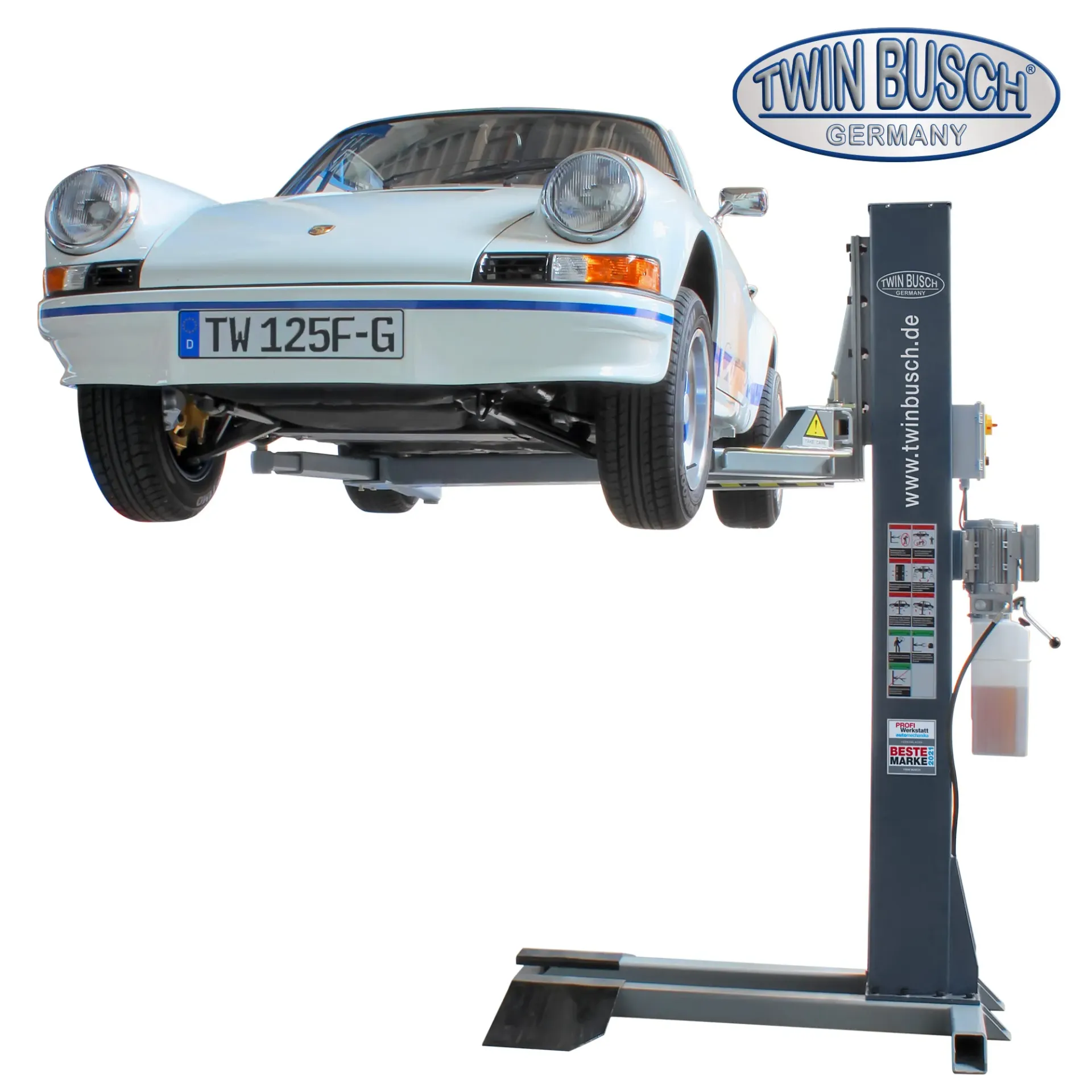

1 post lift - 2.5 tonnes - Fixed

230 Volt
CHF 3,828.86 CHF 3,828.86 VAT Excluded
CHF 3,828.86 VAT Excluded

Add to cart
Add to wishlist
Contact Us
Documents
TW125F-230_de_handbuch TW125F-230_en_manual TW125F-230_en_product TW125F-230_fr_manuel.pdf twinbusch_pickup_areas_of_the_lifting_platforms_125-f_a.pdf

Internal Reference: TW125F-230-G

1 column lift 2.5 tonnes - Fixed



Fixed single-post lift. For use in confined spaces. Ideal for bodywork, paint shops and, of course, everyday use in the workshop.

iconProduct presentation

iconAssembly

iconFeatures

  • 1A Quality built with CE certificate
  • Manufactured according to ISO 9001
  • Hydraulic cylinder for powerful lifting and lowering
  • Adjustable lifting pads
  • Telescopic lifting arm
  • Mechanical safety locking system
  • Manual release of the safety lock
  • Columns with special laminated section
  • Aluminium motor with 24 V - Control box
  • Protection of the column chain

iconTechnical data

Lifting capacity
2500 kg
Maximum lifting height
1830-1930 mm
Low lifting point
115 mm
Lifting and lowering time (approx.)
35/30 seconds
Power supply
230 V
Engine power
2,2 kW
Fuse protection
16 A / type C
Weight
720 kg
Colour
RAL 5015 (Blue)

iconTW125F - Overview
Fixed construction

Fixed construction

The fixed construction of the post lift ensures a particularly high level of stability.

 Control unit

Control unit

The convenient control unit (protection class IP 54, 24 V control voltage) is equipped with a limit switch for lifting height limitation and an automatic safety device for safe working.
E-Motor

E-Motor

Powerful hydraulic unit with high-quality aluminium pump, pressure relief valve, strong electric motor and manual drain valve.

 Arm-locking system

Arm-locking system

The post lift is equipped with telescopic and customisable support arms.
Post protection cover

Post protection cover

The post protection cover protects the hydraulic cylinder from flying sparks during welding and flexing work. It offers a high level of safety and impresses with its attractive appearance.

 Safety release

Safety release

Manual unlocking of the safety catches using the safety release.
2-stage turntable

2-stage turntable

The post lift has 2-stage height-adjustable turntables with a low swivel height of just 100 mm.

 Accessories TW125-Q-G

Accessories TW125-Q-G

The TW125-Q-G set consists of two crossbars for your 1-post lift for lifting vehicles with narrow ladder frames such as off-road vehicles or pre-war classic cars.
Accessories TWLED-1

Accessories TWLED-1

An LED kit is available as an option, providing uniform and optimal illumination of the working area under and around the lift.

iconProduct dimensions

Product dimensions

iconVehicle type / Wheelbase

Vehicle type / Wheelbase

this graphic is for information purposes only!

iconContents of the delivery

  • Lift with feed unit
  • Heavy-duty anchor bolts (10 pcs.)
  • English instruction manual
  • Examination book, 1A Quality built with CE certificate
  • Oil is not included – it can be ordered as an optional extra
  • Car not included
  • The lift is supplied in a transport frame.
