Movable pit jack

🛠️ Movable Pit Jack – Power and Flexibility on Rails

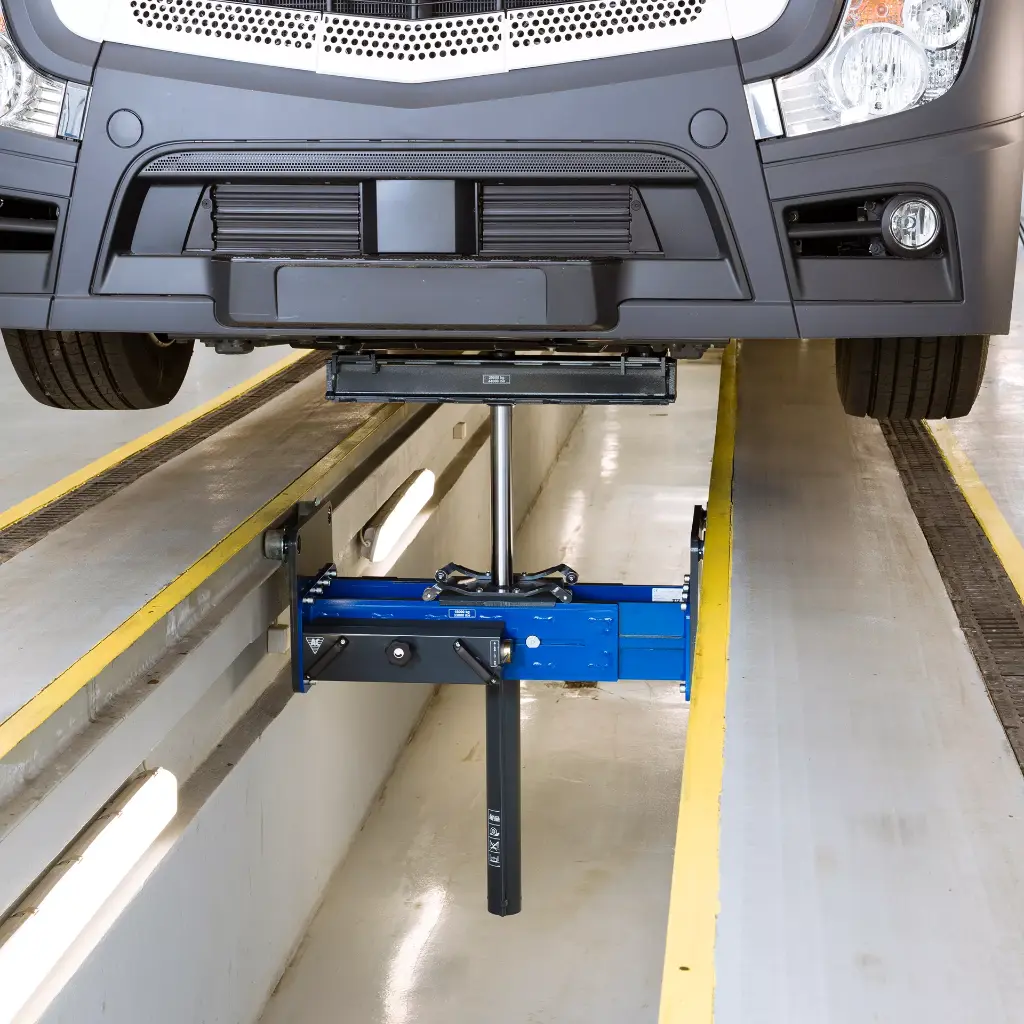

The movable pit jack is a hydraulic lifting system designed to slide along the length of an inspection pit via integrated rails.

It offers exceptional versatility for workshops servicing trucks, buses, and special vehicles, while ensuring safety, precision, and durability.

🔧 Key Features

• Longitudinal movement inside the pit via rolling frame or rail system
• High lifting capacity, typically from 15 to 20 tons depending on the model
• Available in single or double ram versions for axle or full vehicle lifting
• Adjustable lifting arms or universal adapters depending on vehicle design
• Foot or hand-operated controls with safety-controlled descent

✅ Technical Specifications

• Hydraulic stroke: up to 700 mm
• Adjustable width for compatibility with various pit dimensions
• Lockable guide wheels
• Optimized lift height for easy underbody access
• Optional second sliding jack for synchronized double lifting

🛡️ Safety and Compliance

• Integrated overload valve
• Mechanical locking for safe work positioning
• Compliant with CE workshop safety standards
• Reinforced steel construction for intensive use

🎯 Workshop Benefits

• Maximum flexibility: position the jack exactly where needed
• Versatile usage: lift axles, transmissions, engines or full vehicles
• Pit optimization: one jack can serve multiple service zones
• Ergonomic control: no floor clutter, remote lifting
