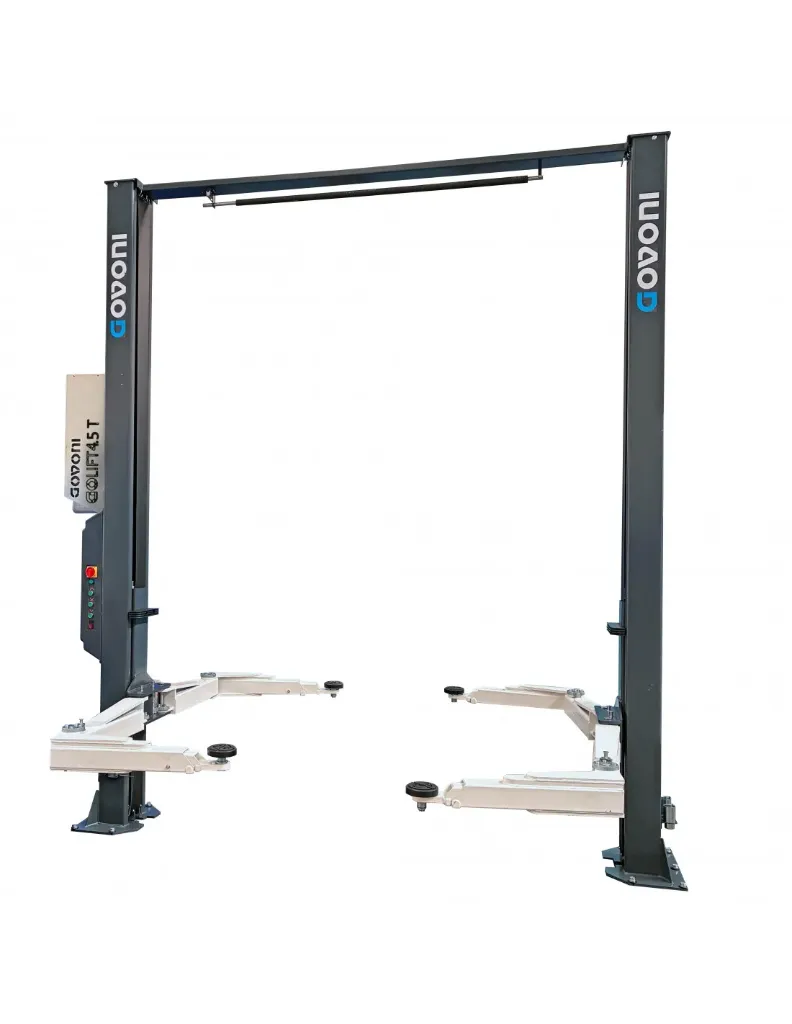

2-post electro-hydraulic car lift – 4.5 tonnes

Extra-long articulated arms • High versatility • Enhanced safety

Designed for demanding professional workshops, this 4.5-tonne two-post electro-hydraulic lift combines power, versatility and ease of use.

Its symmetrical design, combined with extra-long articulated arms, makes it easy to reach the lifting points on a very wide range of vehicles: passenger cars, SUVs, off-road vehicles and commercial vehicles.

Height-adjustable lifting pads also make it easier to handle lowered vehicles, vehicles with high underbody clearance or those with hard-to-reach lifting points.

A bridge designed for multi-purpose workshops

With a lifting capacity of 4,500 kg and a lifting height of up to 1,900 mm, this lift offers excellent working space beneath the vehicle.

The articulated arms allow the lift’s configuration to be quickly adapted to the vehicle in the workshop, minimising compromises and making positioning easier.

The up and down cycle, which takes approximately 40 seconds, ensures fast and efficient operation on a day-to-day basis.

Built-in security

The safety of the operator and the vehicle is ensured by a number of safety features:

• Automatic arm locking, preventing them from moving horizontally when the vehicle is raised.
• Sensor-based safety system during the final 250 millimetres of descent.
• Safety audible alarm during the final stage of descent.
• Control unit with locking mechanism, designed to prevent unauthorised use.
• Robust electro-hydraulic design suitable for intensive professional use.

Key strengths

• Lifting capacity: 4,500 kg
• Bras articulés extra-longs
• Suitable for cars, SUVs, 4x4s and many commercial vehicles
• Adjustable lifting pads
• Excellent access to the lifting points
• Lifting height up to 1,900 mm
• Quick ascent and descent: approximately 40 seconds
• Automatic arm locking
• Electronic safety at the end of the descent
• Sturdy construction for professional workshops

Caractéristiques techniques

Rated capacity: 4,500 kg

Maximum lifting height: 1,900 mm

Rise time: approx. 40 sec.

Descent time: approx. 40 sec.

Largeur de passage 2 558 mm

Largeur hors tout 2 558 mm

Hauteur totale 3 900 mm

Hydraulic pressure: 15 MPa

Niveau sonore : ≤ 80 dB(A)

Alimentation : triphasé 380 V / 50 Hz

Puissance moteur : 1,8 / 2,2 kW selon configuration

Poids : env. 680 kg

Différentes configurations électriques peuvent être proposées selon les besoins et les caractéristiques de l'installation du client.

Une solution robuste et polyvalente pour les ateliers qui souhaitent travailler sur un maximum de véhicules avec un seul pont élévateur.
