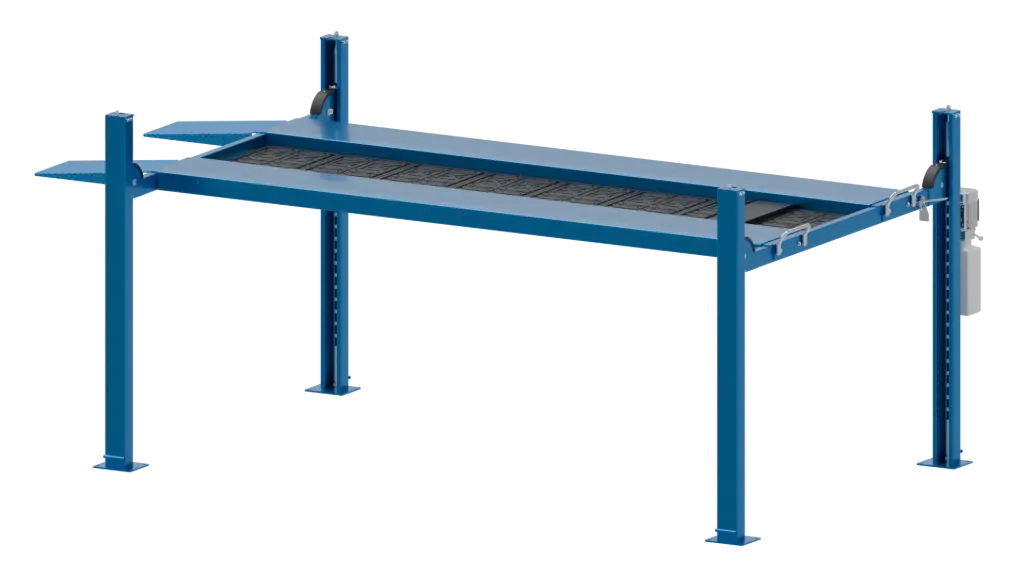

EAE 6445P: 4-post parking lift - 4.0 t
Product description
The EAE 6445P is a 4-post parking lift that doubles the capacity of a single parking space. With a lifting capacity of 4,000 kg, a lifting height of 1,970 mm and long 4,900 mm runways, it suits most passenger cars, SUVs and pick-ups.
The low runway profile of only 140 mm lets even lowered sports cars drive on. Its simple, robust design makes on-site installation easy and is less demanding on the foundation.
Mechanical safety locks engage automatically while lifting and are released from one side for easy lowering. Self-lubricating pulleys and pre-tensioned cables ensure a long service life.
Features
- Lifting capacity 4,000 kg
- Lifting height 1,970 mm
- Runway length 4,900 mm
- Low drive-on height 140 mm
- Automatic mechanical safety locks
- One-side lock release
- Self-lubricating pulleys, pre-tensioned cables
- Out-of-level protection
- Oil drip tray and jack tray included
- Optional: mobile kit, aluminium decking
Technical data
Lifting capacity
4,000 kg
Max. lifting height
1,970 mm
Min. height
140 mm
Runway length
4,900 mm
Runway width
535 mm
Post height
2,472 mm
Lifting time
approx. 65 s
Required ceiling height
min. 3,800 mm
Motor
2.2 kW, 3-phase
Power supply
400 V
Scope of delivery
- 4-post parking lift with power unit
- Oil drip tray and jack tray
- Oil not included
- Car not included
