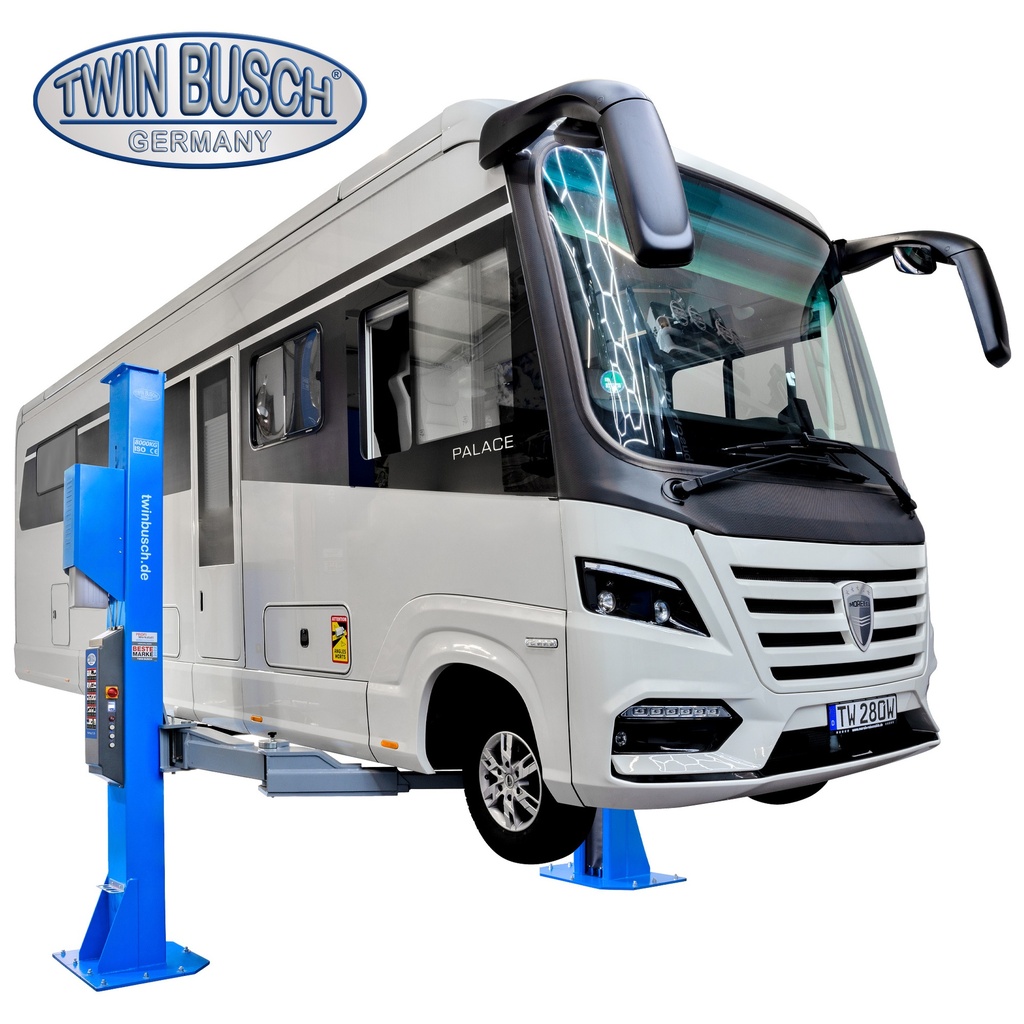

The new Heavy-Line TW280 lift.
With 8.0 t lifting capacity and symmetrically telescopic double-jointed support arms in M-support arm design the TW280 is our most powerful powerhouse in the 2-post range.
Thanks to its extremely large adjustment range, everything from small cars to vans, even with a long wheelbase (e.g. MB Sprinter, motorhomes, special vehicles) can be lifted with ease.
With two operating units (one per column) and two independent hydraulic units, the TW280W offers a particularly high level of operating convenience and can be easily adapted to the requirements of the workshop in terms of installation width (4132 mm or less).
As an outstanding highlight, the individual lifting columns communicate with each other completely wirelessly via a secure radio link. They are conveniently controlled via operating units on both columns with monitoring and display of the lifting height in real time.
There is also a practical plug-in adapter holder on the outside of each column, which provides space for the safe storage of two height adapters.
 Product presentation |
Assembly |
Calibration |
|---|---|---|
Features
- Top built quality with CE-certificate
- Manufactured according to ISO 9001
- Protective cover in front of the pillars
- Lifting turntables with double thread and anti-rotation protection
- Automatic electromagnetic release of the safety catches
- Automatic support arm lock
- 2 hydraulic cylinders for powerful lifting and lowering
- Synchronisation control via a secure radio connection
- High-quality support columns made from special rolled profile
- High quality powder coating
- Symmetrical telescopic double-jointed support arms (M support arms)
- Emergency lowering function in the event of a power failure
- Practical height adapter holders (one holder on each side of the column) for two height adapters each
- Motor-Cover included (Stylish design, dust protection and noise reduction)
Technical Data
Note:
This product requires an increased mains voltage for its proper operation and is not equipped with a two-pin mains plug. The installation of non-plug-in units must be carried out by the respective mains operator or by a registered specialist company who will also assist you in obtaining any necessary approval from the respective mains operator for the installation of the unit.
Vehicle type / Wheelbase
The vehicles shown are for illustrative purposes only to give you an understanding of different wheelbases and vehicle lengths. Of course, a variety of other vehicle manufacturers and models can be lifted.
If you have any questions, we will be happy to advise you personally! +41 (0) 27 722 10 00 or info@garagepro.ch
*The vehicles shown were raised with the manufacturer's or alternative lifting points. Pay attention to our Twin Busch special adapters to ensure safe lifting, since some vehicles, especially in the transporter class, have no lifting points as with most cars. Always follow the relevant equipment regulations of the vehicle manufacturer. Always observe the usual safety precautions during lifting and lowering as well as the correct load distribution, maximum load and always read the manual of the lift.
Vehicle status: 2023, Subject to technical changes and errors. GIMP Sàrl provides this graphic exclusively for information purposes! GIMP Sàrl is under no circumstances liable for recommendations from this graphic.
Delivery contents
- Lift incl. Power Unit and Motor-Cover
- Transporter Adapter (4 pcs.)
- Bracket for extension adapter
- Heavy Duty Anchor bolts (18 pcs.)
- Door protection
- German instruction manual
- CE-Certificate
- Oil not included – can be optionally ordered
- Car not included
Shipping information
- Important note! The customer must have a forklift available for unloading!
- Please note that access for a lorry of 18 t to 40 t must be possible for deliveries.
